MACOM Technology Solutions H-183-4-N
- Part No.:
- H-183-4-N
- Manufacturer:
- MACOM Technology Solutions
- Category:
- RF Directional Coupler
- Package:
- Module
- Datasheet:
-
H-183-4-N.pdf
- Description:
- HYBRID
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
H-183-4-N Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- MACOM Technology Solutions
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- Coupler Type:
- Standard
- Frequency:
- 30MHz ~ 3GHz
- Coupling Factor:
- -
- Applications:
- General Purpose
- Insertion Loss:
- 2.5dB
- Power - Max:
- 5W
- Isolation:
- 20dB
- Return Loss:
- -
- Supplier Device Package:
- C-11
| Image |  |
 |
 |
 |
 |

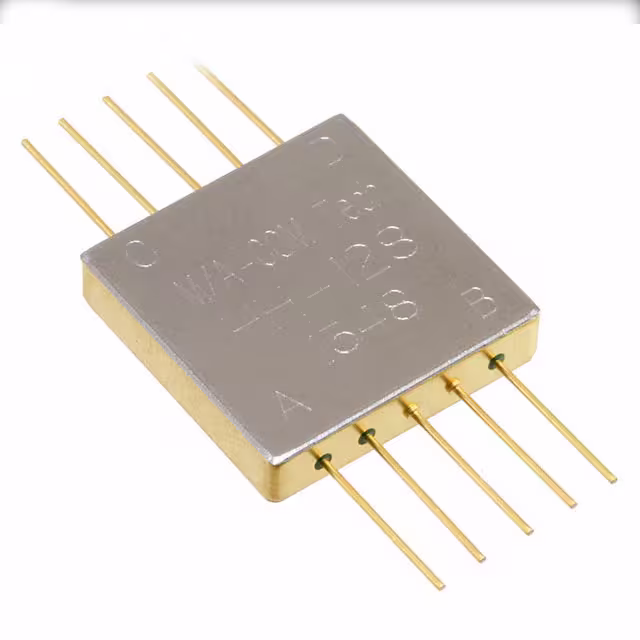

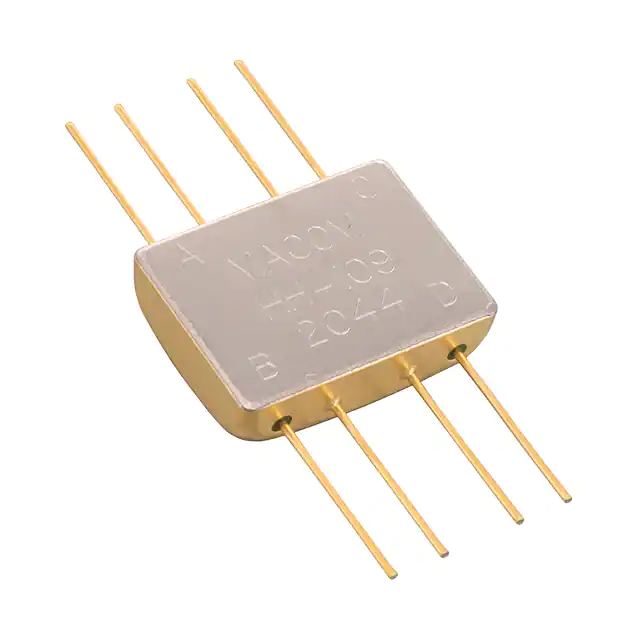

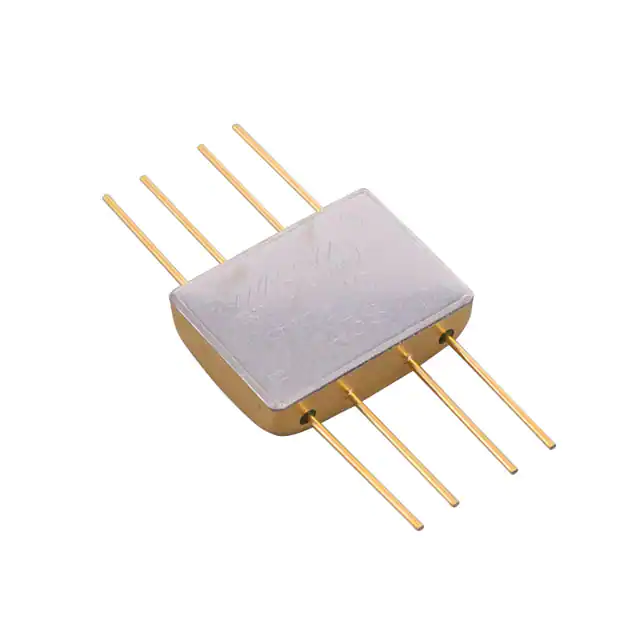

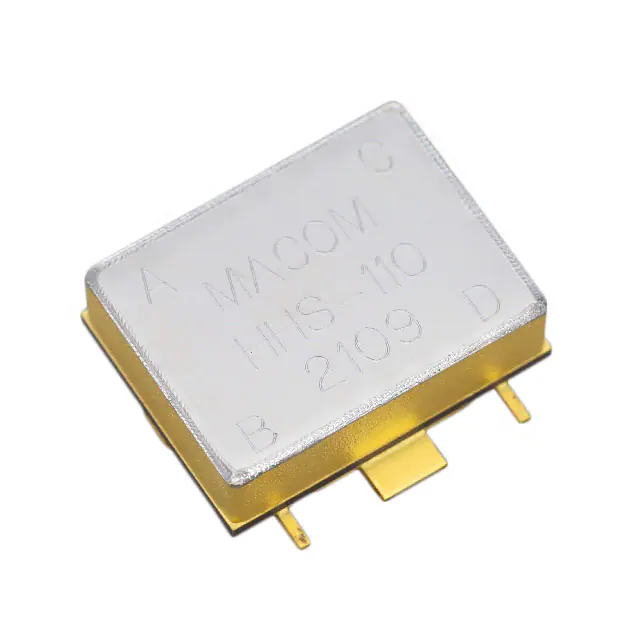

| Part Number | HHS-110-PIN | HHS-109-PIN | HH-128-PIN | HH-110-PIN | HH-109-PIN |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| Series | - | - | - | - | - |
| Packaging | Tray | Tray | Bulk | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Coupler Type | Standard | Standard | Standard | Standard | Standard |
| Frequency | 10MHz ~ 500MHz | 5MHz ~ 200MHz | 20MHz ~ 2GHz | 10MHz ~ 500MHz | 5MHz ~ 200MHz |
| Coupling Factor | - | - | - | - | - |
| Applications | General Purpose | General Purpose | - | General Purpose | General Purpose |
| Insertion Loss | 1.4dB | 1.4dB | 1.5dB | 1.4dB | 1.4dB |
| Power - Max | 1W | 500mW | 500mW | 1W | 500mW |
| Isolation | 20dB | 30dB | 20dB | 20dB | 25dB |
| Return Loss | - | - | - | - | - |
| Supplier Device Package | FP-2 | SF-1 | FP-Case | FP-2 | FP-2 |
