Menics H06F-24R
- Part No.:
- H06F-24R
- Manufacturer:
- Menics
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Datasheet:
-
H06F-24R.pdf
- Description:
- HIGH LED 6MM FLAT 24VDC RED
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
H06F-24R Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Menics
- Series:
- H
- Packaging:
- Bag
- Product Status:
- Active
- Type:
- LED
- Lamp Color:
- Red
- Lens Color:
- Red
- Lens Transparency:
- Clear
- Ratings:
- DC
- Voltage:
- 24V
- Current:
- 20mA
- Panel Cutout Shape:
- Round
- Panel Cutout Dimensions:
- 0.24" (6.00mm)
- Lens Size:
- 7.00mm Dia
- Lens Style:
- Round with Flat Top
- Millicandela Rating:
- 200mcd
- Wavelength - Peak:
- -
- Viewing Angle:
- -
- Termination Style:
- Solder Lug
- Ingress Protection:
- IP60
- Features:
- Chrome Plated Brass
| Image |  |
 |
 |
 |
|

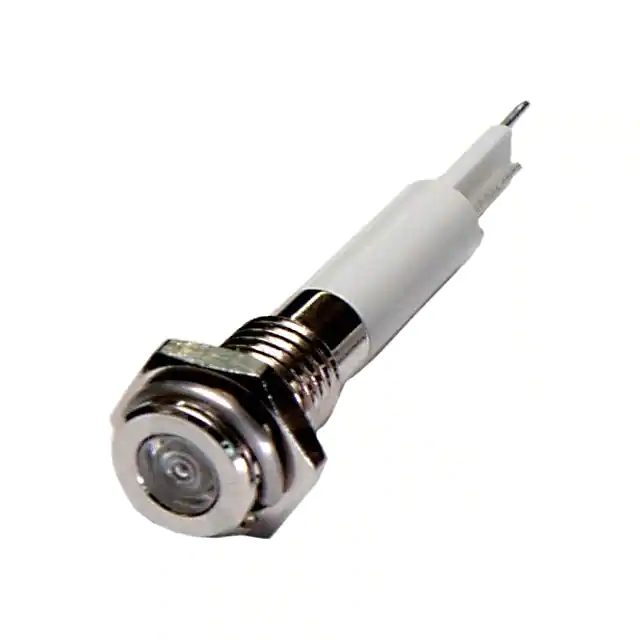

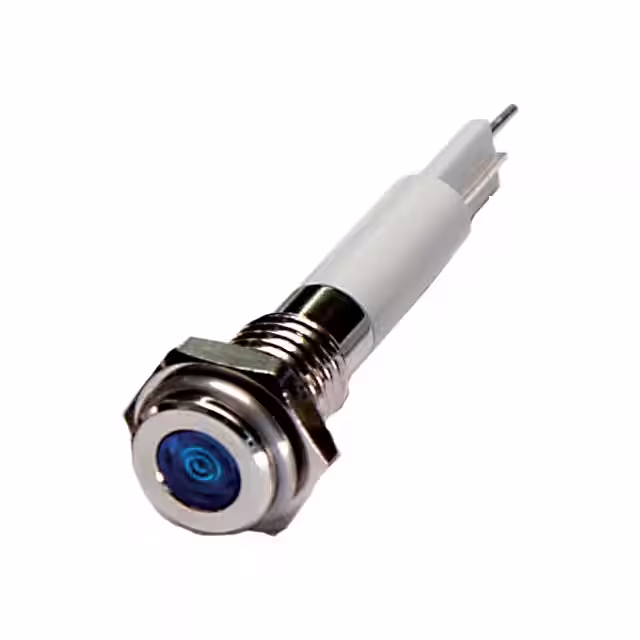

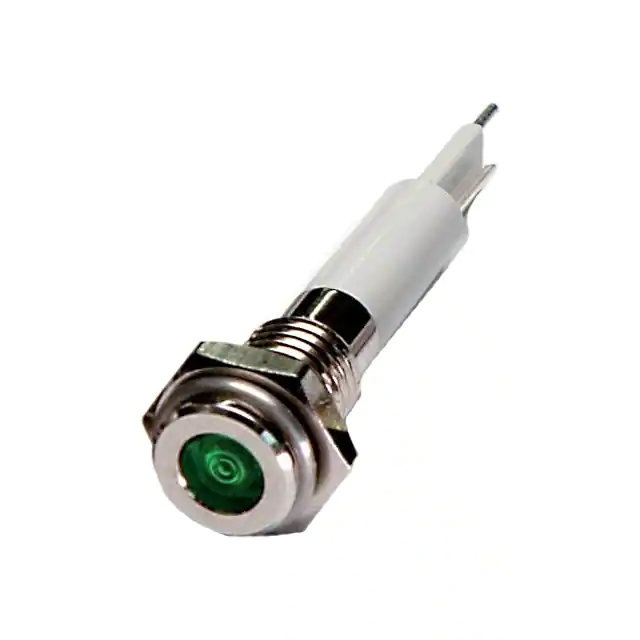

| Part Number | H06F-03G | H06F-24W | H06F-12Y | H06F-12B | H06F-12W |
| Manufacturer | Menics | Menics | Menics | Menics | Menics |
| Series | H | H | H | H | H |
| Packaging | Bag | Bag | Bag | Bag | Bag |
| Product Status | Active | Active | Active | Active | Active |
| Type | LED | LED | LED | LED | LED |
| Lamp Color | Green | White | Yellow | Blue | White |
| Lens Color | Green | White | Yellow | Blue | White |
| Lens Transparency | Clear | Clear | Clear | Clear | Clear |
| Ratings | DC | DC | DC | DC | DC |
| Voltage | 3V | 24V | 12V | 12V | 12V |
| Current | 20mA | 20mA | 20mA | 20mA | 20mA |
| Panel Cutout Shape | Round | Round | Round | Round | Round |
| Panel Cutout Dimensions | 0.24" (6.00mm) | 0.24" (6.00mm) | 0.24" (6.00mm) | 0.24" (6.00mm) | 0.24" (6.00mm) |
| Lens Size | 7.00mm Dia | 7.00mm Dia | 7.00mm Dia | 7.00mm Dia | 7.00mm Dia |
| Lens Style | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top | Round with Flat Top |
| Millicandela Rating | 250mcd | 200mcd | 200mcd | 220mcd | 200mcd |
| Wavelength - Peak | - | - | - | - | - |
| Viewing Angle | - | - | - | - | - |
| Termination Style | Solder Lug | Solder Lug | Solder Lug | Solder Lug | Solder Lug |
| Ingress Protection | IP60 | IP60 | IP60 | IP60 | IP60 |
| Features | Chrome Plated Brass | Chrome Plated Brass | Chrome Plated Brass | Chrome Plated Brass | Chrome Plated Brass |
