c3controls GPRS-B2C25D
- Part No.:
- GPRS-B2C25D
- Manufacturer:
- c3controls
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
GPRS-B2C25D.pdf
- Description:
- RELAY GEN PURPOSE DPDT 25A 120V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
GPRS-B2C25D Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- c3controls
- Series:
- GR
- Packaging:
- Bag
- Product Status:
- Active
- Mounting Type:
- Socketable
- Coil Voltage:
- 120VAC
- Contact Form:
- DPDT (2 Form C)
- Contact Rating (Current):
- 25 A
- Switching Voltage:
- 240VAC, 28VDC - Max
- Load - Max Switching:
- -
- Coil Current:
- 92.3 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Plug In
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- 102 VAC
- Must Release Voltage:
- 36 VAC
- Operate Time:
- 15 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -45°C ~ 70°C
- Contact Material:
- Silver Nickel (AgNi)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
|
 |
|

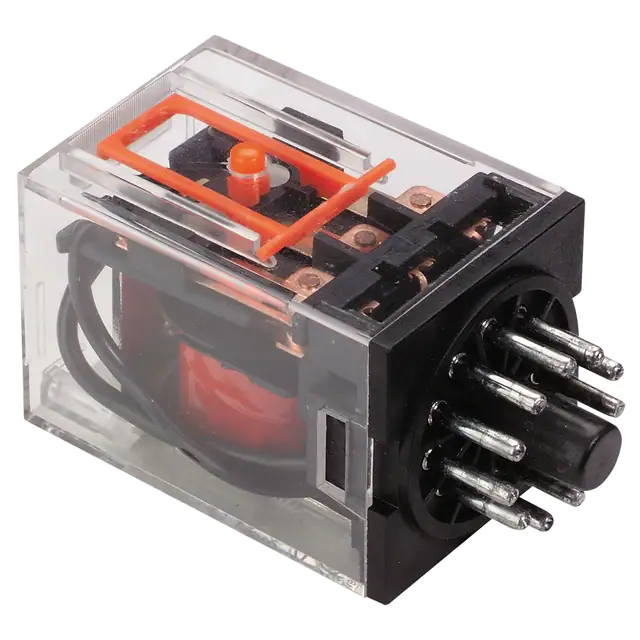

| Part Number | GPRS-P2C10D-1 | GPRS-P2C10D-3 | GPRS-B3C20D-3 | GPRS-B2C25D |
| Manufacturer | c3controls | c3controls | c3controls | c3controls |
| Series | GR | GR | GR | GR |
| Packaging | Bag | Bag | Bag | Bag |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Socketable | Socketable | Socketable | Socketable |
| Coil Voltage | 120VAC | 120VAC | 120VAC | 120VAC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) | 3PDT (3 Form C) | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A | 10 A | 20 A | 25 A |
| Switching Voltage | 240VAC, 28VDC - Max | - | - | 240VAC, 28VDC - Max |
| Load - Max Switching | - | - | - | - |
| Coil Current | 21 mA | - | - | 92.3 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | Lighted Indicator, Mechanical Indicator | Lighted Indicator, Mechanical Indicator | - |
| Termination Style | Plug In, 8 Pin (Octal) | Plug In, 8 Pin (Octal) | Plug In, 11 Pin (Octal) | Plug In |
| Seal Rating | - | - | - | - |
| Coil Insulation | - | - | - | - |
| Must Operate Voltage | 96 VAC | - | - | 102 VAC |
| Must Release Voltage | 36 VAC | - | - | 36 VAC |
| Operate Time | 25 ms | - | - | 15 ms |
| Release Time | 25 ms | - | - | 10 ms |
| Operating Temperature | -10°C ~ 40°C | - | - | -45°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) | - | - | Silver Nickel (AgNi) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
