TE Connectivity Measurement Specialties G-NSDOG2-001
- Part No.:
- G-NSDOG2-001
- Manufacturer:
- TE Connectivity Measurement Specialties
- Category:
- Inclinometers
- Package:
- Module
- Datasheet:
-
G-NSDOG2-001.pdf
- Description:
- SENSOR INCLINOMETER 25DEG MODULE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G-NSDOG2-001 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Measurement Specialties
- Series:
- MEMS
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Active
- Axis:
- X, Y
- Measuring Range:
- ±25°
- Sensitivity:
- -
- Bandwidth:
- 100Hz
- Voltage Rating:
- 8 V ~ 30 V
- Output Type:
- Voltage
- Interface:
- Analog
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
| Image |  |
|
 |
 |
 |

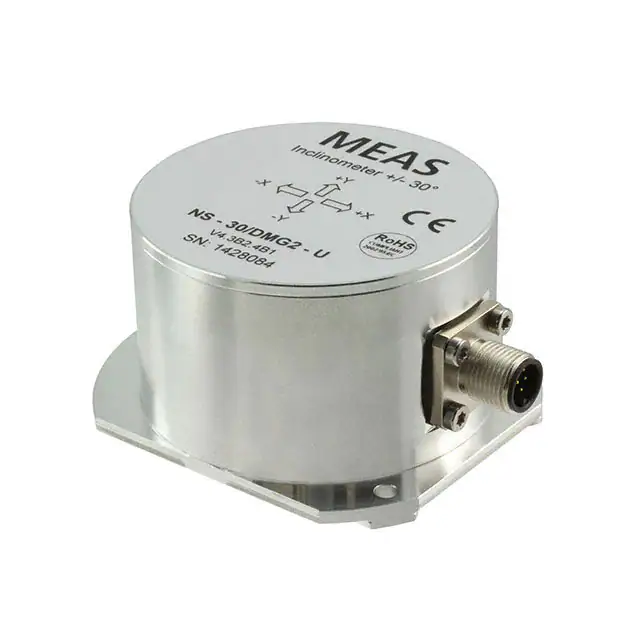

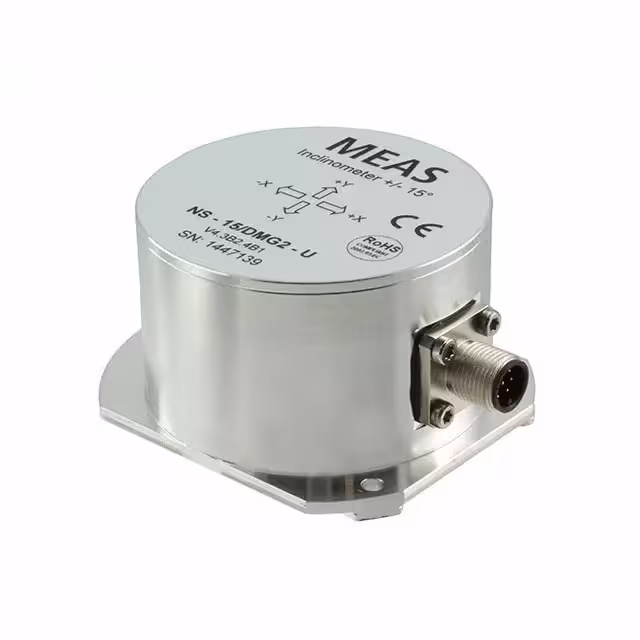

| Part Number | G-NSDOG2-001 | G-NSDOG2-200 | G-NSDMG-023 | G-NSDMG-019 | G-NSPI-002 |
| Manufacturer | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties | TE Connectivity Measurement Specialties |
| Series | MEMS | MEMS | D | D | MEMS |
| Package/Case | Module | Module | Module | Module | Module |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete |
| Axis | X, Y | X, Y | X, Y | X, Y | X or Y |
| Measuring Range | ±25° | ±90° | ±30° | ±15° | ±15° |
| Sensitivity | - | - | - | - | - |
| Bandwidth | 100Hz | 100Hz | - | - | - |
| Voltage Rating | 8 V ~ 30 V | 8 V ~ 30 V | 10 V ~ 30 V | 10 V ~ 30 V | 6.5 V ~ 24 V |
| Output Type | Voltage | Digital | Voltage | Voltage | Current, RS-232 |
| Interface | Analog | CAN | Serial | Serial | RS-232 |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -25°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
