Omron Electronics Inc-EMC Div G7L-1A-TUB-CB-AC100/120

Name: G7L-1A-TUB-CB-AC100/120
Brand: Omron Electronics Inc-EMC Div
SKU: G7L-1A-TUB-CB-AC100/120
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G7L-1A-TUB-CB-AC100/120

Manufacturer:: Omron Electronics Inc-EMC Div

Category:: Power Relays, Over 2 Amps

Package:

Datasheet:: G7L-1A-TUB-CB-AC100/120.pdf

Description:: RELAY GEN PURPOSE SPST 30A 120V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

G7L-1A-TUB-CB-AC100/120 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Electronics Inc-EMC Div

Series:: G7L

Packaging:: Bulk

Product Status:: Active

Mounting Type:: Chassis Mount

Coil Voltage:: 120VAC

Contact Form:: SPST-NO (1 Form A)

Contact Rating (Current):: 30 A

Switching Voltage:: 250VAC - Max

Load - Max Switching:: 7500VA

Coil Current:: 20.4 mA

Coil Type:: Non Latching

Features:: -

Termination Style:: Quick Connect - 0.250" (6.3mm)

Seal Rating:: -

Coil Insulation:: Class B

Must Operate Voltage:: 75 VAC

Must Release Voltage:: 18 VAC

Operate Time:: 30 ms

Release Time:: 30 ms

Operating Temperature:: -25°C ~ 60°C

Contact Material:: Silver Alloy

Relay Type:: General Purpose

Grade:: -

Qualification:: -

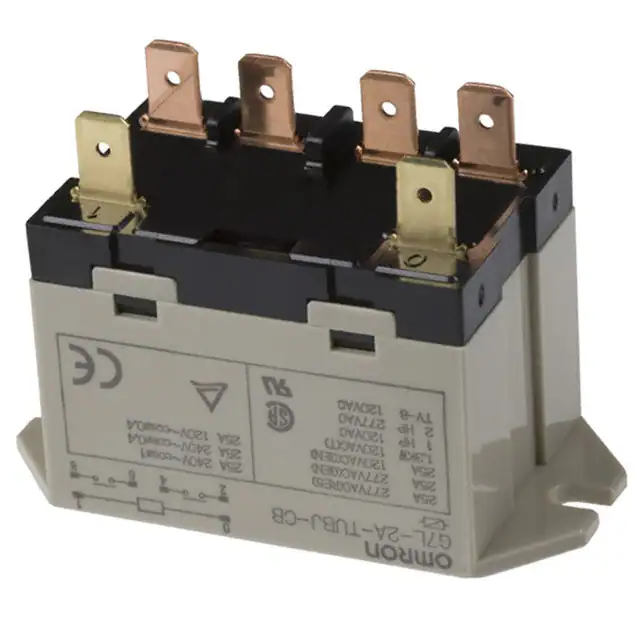

Part Number	G7L-1A-TUB-CB-AC100/120	G7L-2A-TUB-J-CB-AC24	G7L-2A-TUB-J-CB-AC200/240	G7L-2A-TUB-J-CB DC24	G7L-2A-TUB-J-CB-AC100/120
Manufacturer	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div
Series	G7L	G7L	G7L	G7L	G7L
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Coil Voltage	120VAC	24VAC	240VAC	24VDC	120VAC
Contact Form	SPST-NO (1 Form A)	DPST-NO (2 Form A)	DPST-NO (2 Form A)	DPST-NO (2 Form A)	DPST-NO (2 Form A)
Contact Rating (Current)	30 A	25 A	25 A	25 A	25 A
Switching Voltage	250VAC - Max	250VAC - Max	250VAC - Max	250VAC - Max	250VAC - Max
Load - Max Switching	7500VA	6250VA	6250VA	6250VA	6250VA
Coil Current	20.4 mA	71 mA	10.2 mA	79 mA	20.4 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	-	Test Button	Test Button	Test Button	Test Button
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Seal Rating	-	-	-	-	-
Coil Insulation	Class B	Class B	Class B	Class B	Class B
Must Operate Voltage	75 VAC	18 VAC	150 VAC	18 VDC	75 VAC
Must Release Voltage	18 VAC	3.6 VAC	36 VAC	3.6 VDC	18 VAC
Operate Time	30 ms	30 ms	30 ms	30 ms	30 ms
Release Time	30 ms	30 ms	30 ms	30 ms	30 ms
Operating Temperature	-25°C ~ 60°C	-25°C ~ 60°C	-25°C ~ 60°C	-25°C ~ 60°C	-25°C ~ 60°C
Contact Material	Silver Alloy	Silver Alloy	Silver Alloy	Silver Alloy	Silver Alloy
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
