Omron Electronics Inc-EMC Div G6RL-1A4-ASI DC5
- Part No.:
- G6RL-1A4-ASI DC5
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
G6RL-1A4-ASI DC5.pdf
- Description:
- RELAY GEN PURPOSE SPST 10A 5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G6RL-1A4-ASI DC5 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Series:
- G6RL
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 5VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 10 A
- Switching Voltage:
- 250VAC - Nom
- Load - Max Switching:
- 2500VA
- Coil Current:
- 44 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- -
- Must Operate Voltage:
- 3.5 VDC
- Must Release Voltage:
- 0.5 VDC
- Operate Time:
- 10 ms
- Release Time:
- 5 ms
- Operating Temperature:
- -40°C ~ 85°C
- Contact Material:
- Silver Tin Indium (AgSnIn)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
|
 |
|
|

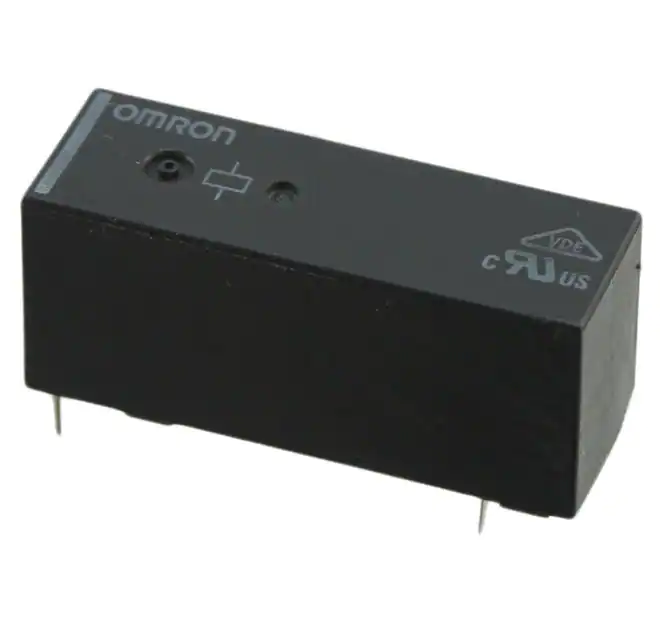

| Part Number | G6RL-1A4-ASI DC5 | G6RL-14-ASI DC12 | G6RL-1 DC12 | G6RL-14-ASI DC3 | G6RL-1A4-ASI DC24 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Series | G6RL | G6RL | G6RL | G6RL | G6RL |
| Packaging | Bulk | Bulk | Tray | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 5VDC | 12VDC | 12VDC | 3VDC | 24VDC |
| Contact Form | SPST-NO (1 Form A) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A | 8 A | 8 A | 8 A | 10 A |
| Switching Voltage | 250VAC - Nom | 250VAC - Nom | 250VAC - Nom | 250VAC - Nom | 250VAC - Nom |
| Load - Max Switching | 2500VA | 2000VA | 2000VA | 2000VA | 2500VA |
| Coil Current | 44 mA | 18.3 mA | 18.3 mA | 73.3 mA | 9.2 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Flux Protection | Sealed - Fully | Sealed - Fully |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 3.5 VDC | 8.4 VDC | 8.4 VDC | 2.1 VDC | 16.8 VDC |
| Must Release Voltage | 0.5 VDC | 1.2 VDC | 1.2 VDC | 0.3 VDC | 2.4 VDC |
| Operate Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Release Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Contact Material | Silver Tin Indium (AgSnIn) | Silver Tin Indium (AgSnIn) | Silver Nickel (AgNi) | Silver Tin Indium (AgSnIn) | Silver Tin Indium (AgSnIn) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
