Omron Electronics Inc-EMC Div G6CU-1114P-US DC3

Name: G6CU-1114P-US DC3
Brand: Omron Electronics Inc-EMC Div
SKU: G6CU-1114P-US DC3
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G6CU-1114P-US DC3

Manufacturer:: Omron Electronics Inc-EMC Div

Category:: Power Relays, Over 2 Amps

Package:

Datasheet:: G6CU-1114P-US DC3.pdf

Description:: RELAY GEN PURPOSE SPST 10A 3V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

G6CU-1114P-US DC3 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Electronics Inc-EMC Div

Series:: G6C

Packaging:: Bulk

Product Status:: Active

Mounting Type:: Through Hole

Coil Voltage:: 3VDC

Contact Form:: SPST-NO (1 Form A)

Contact Rating (Current):: 10 A

Switching Voltage:: 380VAC, 125VDC - Max

Load - Max Switching:: 3800VA, 1250W

Coil Current:: 67 mA

Coil Type:: Latching, Single Coil

Features:: -

Termination Style:: PC Pin

Seal Rating:: Sealed - Fully

Coil Insulation:: -

Must Operate Voltage:: 2.1 VDC

Must Release Voltage:: -

Operate Time:: 10 ms

Release Time:: 10 ms

Operating Temperature:: -25°C ~ 70°C

Contact Material:: Silver Alloy, Cadmium Free

Relay Type:: General Purpose

Grade:: -

Qualification:: -

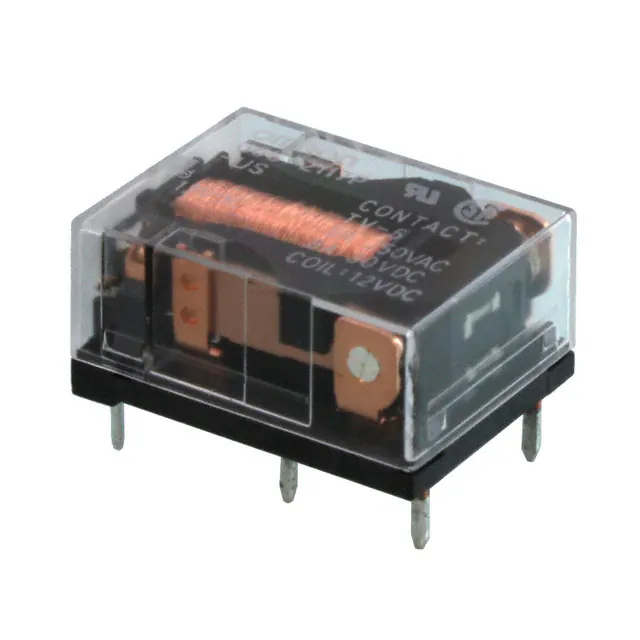

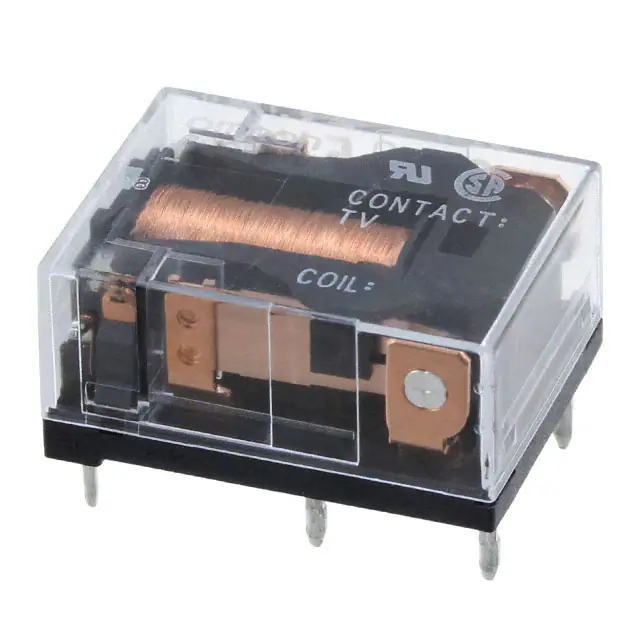

Part Number	G6CU-1114P-US DC3	G6CU-2117P-US DC12	G6CU-2117P-US DC3	G6CU-1117P-FD-US DC12	G6CU-1117P-US DC24
Manufacturer	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div
Series	G6C	G6C	G6C	G6C	G6C
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Coil Voltage	3VDC	12VDC	3VDC	12VDC	24VDC
Contact Form	SPST-NO (1 Form A)	DPST-NO/NC (1 Form A, 1 Form B)	DPST-NO/NC (1 Form A, 1 Form B)	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Rating (Current)	10 A	8 A	8 A	10 A	10 A
Switching Voltage	380VAC, 125VDC - Max	380VAC, 125VDC - Max	380VAC, 125VDC - Max	250VAC, 125VDC - Max	380VAC, 125VDC - Max
Load - Max Switching	3800VA, 1250W	3040VA, 1000W	3040VA, 1000W	2500VA, 1250W	3800VA, 1250W
Coil Current	67 mA	16.7 mA	67 mA	16.7 mA	8.3 mA
Coil Type	Latching, Single Coil	Latching, Single Coil	Latching, Single Coil	Latching, Single Coil	Latching, Single Coil
Features	-	-	-	-	-
Termination Style	PC Pin	PC Pin	PC Pin	PC Pin	PC Pin
Seal Rating	Sealed - Fully	Sealed - Flux Protection	Sealed - Flux Protection	Sealed - Flux Protection	Sealed - Flux Protection
Coil Insulation	-	-	-	-	-
Must Operate Voltage	2.1 VDC	8.4 VDC	2.1 VDC	8.4 VDC	16.8 VDC
Must Release Voltage	-	-	-	-	-
Operate Time	10 ms	10 ms	10 ms	10 ms	10 ms
Release Time	10 ms	10 ms	10 ms	10 ms	10 ms
Operating Temperature	-25°C ~ 70°C	-25°C ~ 70°C	-25°C ~ 70°C	-25°C ~ 70°C	-25°C ~ 70°C
Contact Material	Silver Alloy, Cadmium Free	Silver Alloy, Cadmium Free	Silver Alloy, Cadmium Free	Silver Indium Tin (AgInSn)	Silver Alloy, Cadmium Free
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
