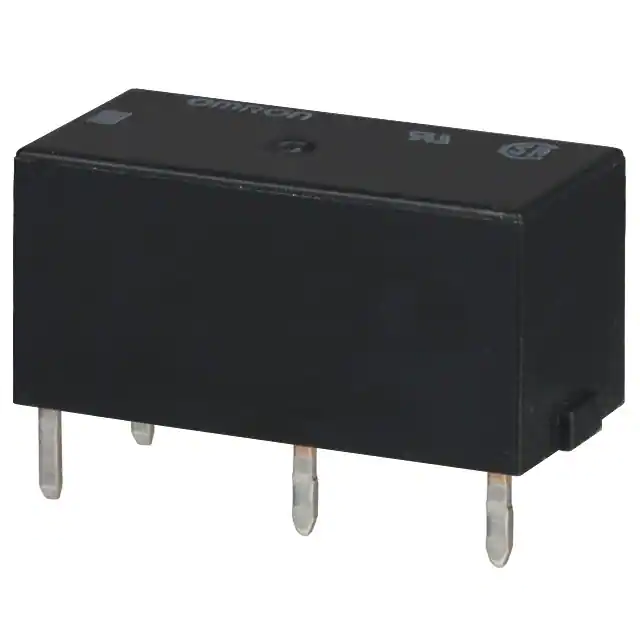

Omron Electronics Inc-EMC Div G6B-1114P-US DC24

Name: G6B-1114P-US DC24
Brand: Omron Electronics Inc-EMC Div
SKU: G6B-1114P-US DC24
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: G6B-1114P-US DC24

Manufacturer:: Omron Electronics Inc-EMC Div

Category:: Power Relays, Over 2 Amps

Package:

Datasheet:: G6B-1114P-US DC24.pdf

Description:: RELAY GEN PURPOSE SPST 5A 24V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

G6B-1114P-US DC24 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Electronics Inc-EMC Div

Series:: G6B

Packaging:: Bulk

Product Status:: Active

Mounting Type:: Through Hole

Coil Voltage:: 24VDC

Contact Form:: SPST-NO (1 Form A)

Contact Rating (Current):: 5 A

Switching Voltage:: 380VAC, 125VDC - Max

Load - Max Switching:: 1900VA, 625W

Coil Current:: 8.3 mA

Coil Type:: Non Latching

Features:: -

Termination Style:: PC Pin

Seal Rating:: Sealed - Fully

Coil Insulation:: -

Must Operate Voltage:: 16.8 VDC

Must Release Voltage:: 2.4 VDC

Operate Time:: 10 ms

Release Time:: 10 ms

Operating Temperature:: -25°C ~ 70°C

Contact Material:: Silver Alloy, Cadmium Free

Relay Type:: General Purpose

Grade:: -

Qualification:: -

Part Number	G6B-1114P-US DC24	G6B-1114P-US DC5	G6B-1174P-US DC12	G6B-2114P-US DC24	G6B-2214P-US DC5
Manufacturer	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div
Series	G6B	G6B	G6B	G6B	G6B
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Coil Voltage	24VDC	5VDC	12VDC	24VDC	5VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)	SPST-NO (1 Form A)	DPST-NO/NC (1 Form A, 1 Form B)	DPST-NO (2 Form A)
Contact Rating (Current)	5 A	5 A	8 A	5 A	5 A
Switching Voltage	380VAC, 125VDC - Max	380VAC, 125VDC - Max	380VAC, 125VDC - Max	380VAC, 125VDC - Max	380VAC, 125VDC - Max
Load - Max Switching	1900VA, 625W	1900VA, 625W	3040VA, 1000W	1900VA, 625W	1900VA, 625W
Coil Current	8.3 mA	40 mA	16.7 mA	12.5 mA	60 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	-	-	-	-	-
Termination Style	PC Pin	PC Pin	PC Pin	PC Pin	PC Pin
Seal Rating	Sealed - Fully	Sealed - Fully	Sealed - Fully	Sealed - Fully	Sealed - Fully
Coil Insulation	-	-	-	-	-
Must Operate Voltage	16.8 VDC	3.5 VDC	8.4 VDC	19.2 VDC	4 VDC
Must Release Voltage	2.4 VDC	0.5 VDC	1.2 VDC	2.4 VDC	0.5 VDC
Operate Time	10 ms	10 ms	10 ms	10 ms	10 ms
Release Time	10 ms	10 ms	10 ms	10 ms	10 ms
Operating Temperature	-25°C ~ 70°C	-25°C ~ 70°C	-25°C ~ 70°C	-25°C ~ 70°C	-25°C ~ 70°C
Contact Material	Silver Alloy, Cadmium Free	Silver Alloy, Cadmium Free	Silver Alloy, Cadmium Free	Silver Alloy, Cadmium Free	Silver Alloy, Cadmium Free
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
