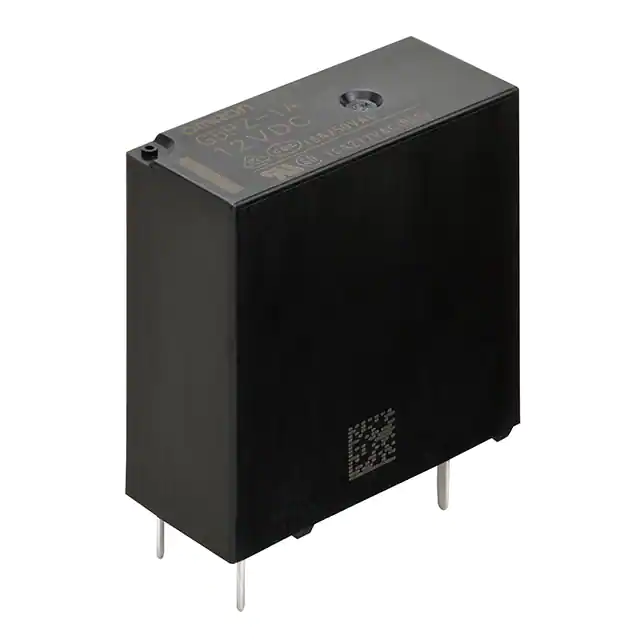

Omron Electronics Inc-EMC Div G5PZ-1A-X DC12
- Part No.:
- G5PZ-1A-X DC12
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
G5PZ-1A-X DC12.pdf
- Description:
- RELAY GEN PURPOSE SPST 20A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G5PZ-1A-X DC12 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Series:
- G5PZ-X
- Packaging:
- Tray
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 12VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 20 A
- Switching Voltage:
- 400VDC - Max
- Load - Max Switching:
- 4000VA
- Coil Current:
- 44.1 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Flux Protection
- Coil Insulation:
- Class F
- Must Operate Voltage:
- 9 VDC
- Must Release Voltage:
- 0.6 VDC
- Operate Time:
- 15 ms
- Release Time:
- 5 ms
- Operating Temperature:
- -40°C ~ 85°C
- Contact Material:
- Silver Alloy, Cadmium Free
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
|
|
|
| Part Number | G5PZ-1A-X DC12 | G5PZ-1A DC12 | G5PZ-1A DC5 | G5PZ-1A-E DC5 | G5PZ-1A-E DC12 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Series | G5PZ-X | G5PZ | G5PZ | G5PZ | G5PZ |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 12VDC | 5VDC | 5VDC | 12VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 20 A | 16 A | 16 A | 20 A | 20 A |
| Switching Voltage | 400VDC - Max | 250VAC - Max | 250VAC - Max | 250VAC - Max | 250VAC - Max |
| Load - Max Switching | 4000VA | 4000VA | 4000VA | 5000VA | 5000VA |
| Coil Current | 44.1 mA | 44.1 mA | 106 mA | 106 mA | 44.1 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Flux Protection | Sealed - Flux Protection | Sealed - Flux Protection | Sealed - Flux Protection | Sealed - Flux Protection |
| Coil Insulation | Class F | - | - | - | - |
| Must Operate Voltage | 9 VDC | 9 VDC | 3.8 VDC | 3.8 VDC | 9 VDC |
| Must Release Voltage | 0.6 VDC | 1.2 VDC | 0.5 VDC | 0.5 VDC | 1.2 VDC |
| Operate Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Release Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C |
| Contact Material | Silver Alloy, Cadmium Free | Silver Alloy, Cadmium Free | Silver Alloy, Cadmium Free | Silver Alloy, Cadmium Free | Silver Alloy, Cadmium Free |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
