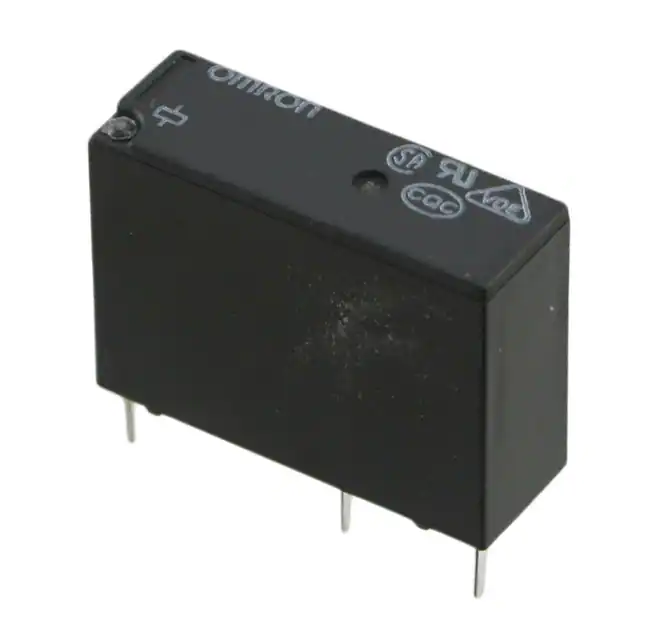

Omron Electronics Inc-EMC Div G5NB-1A4-E DC5
- Part No.:
- G5NB-1A4-E DC5
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
G5NB-1A4-E DC5.pdf
- Description:
- RELAY GEN PURPOSE SPST 5A 5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G5NB-1A4-E DC5 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Series:
- G5NB
- Packaging:
- Tray
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 5VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 5 A
- Switching Voltage:
- 250VAC, 30VDC - Max
- Load - Max Switching:
- 1250VA, 150W
- Coil Current:
- 40 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- -
- Must Operate Voltage:
- 3.75 VDC
- Must Release Voltage:
- 0.5 VDC
- Operate Time:
- 10 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -40°C ~ 70°C
- Contact Material:
- -
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
|
|
 |
| Part Number | G5NB-1A4-EL-HA DC12 | G5NB-1A4-E-DC12 | G5NB-1A-E DC5 | G5NB-1A4-E DC5 | G5NB-1A4 DC5 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Series | G5NB-EL | G5NB | G5NB | G5NB | G5NB |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 12VDC | 5VDC | 5VDC | 5VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 7 A | 5 A | 5 A | 5 A | 3 A |
| Switching Voltage | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max |
| Load - Max Switching | 1750VA, 210W | 1250VA, 150W | 1250VA, 150W | 1250VA, 150W | 750VA, 90W |
| Coil Current | 16.7 mA | 16.7 mA | 40 mA | 40 mA | 40 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Flux Protection | Sealed - Fully | Sealed - Fully |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 9 VDC | 9 VDC | 3.75 VDC | 3.75 VDC | 3.75 VDC |
| Must Release Voltage | 1.2 VDC | 1.2 VDC | 0.5 VDC | 0.5 VDC | 0.5 VDC |
| Operate Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Release Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C |
| Contact Material | Silver Alloy, Cadmium Free | - | - | - | - |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
