Omron Automation and Safety G2R-1A-T DC12
- Part No.:
- G2R-1A-T DC12
- Manufacturer:
- Omron Automation and Safety
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
G2R-1A-T DC12.pdf
- Description:
- RELAY GEN PURPOSE SPST 10A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
G2R-1A-T DC12 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Automation and Safety
- Series:
- G2R
- Packaging:
- Tray
- Product Status:
- Active
- Mounting Type:
- Chassis Mount
- Coil Voltage:
- 12VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 10 A
- Switching Voltage:
- 380VAC, 125VDC - Max
- Load - Max Switching:
- 3800VA, 1250W
- Coil Current:
- 43.6 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Quick Connect - 0.187" (4.7mm)
- Seal Rating:
- Sealed - Flux Protection
- Coil Insulation:
- -
- Must Operate Voltage:
- 8.4 VDC
- Must Release Voltage:
- 1.8 VDC
- Operate Time:
- 15 ms
- Release Time:
- 5 ms
- Operating Temperature:
- -40°C ~ 70°C
- Contact Material:
- Silver Alloy
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |

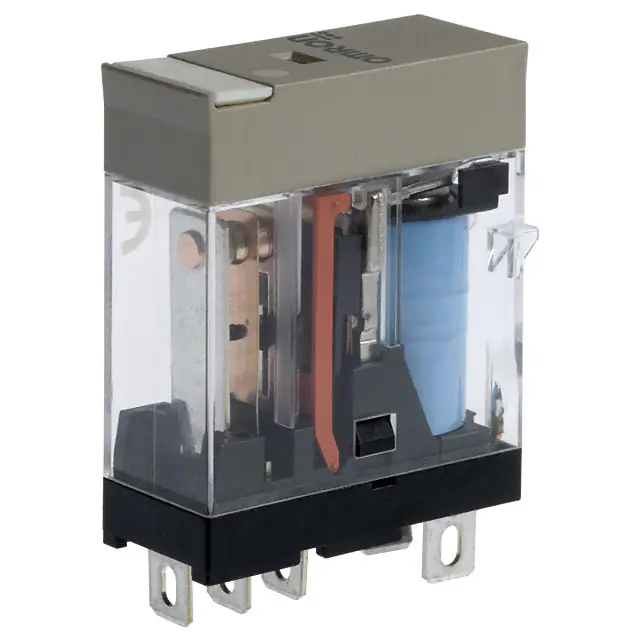

, G2R-1-S-DC12S, G2R-1-S-DC24S, G2R-1-S-DC48(S).jpg) |
|
 |
|

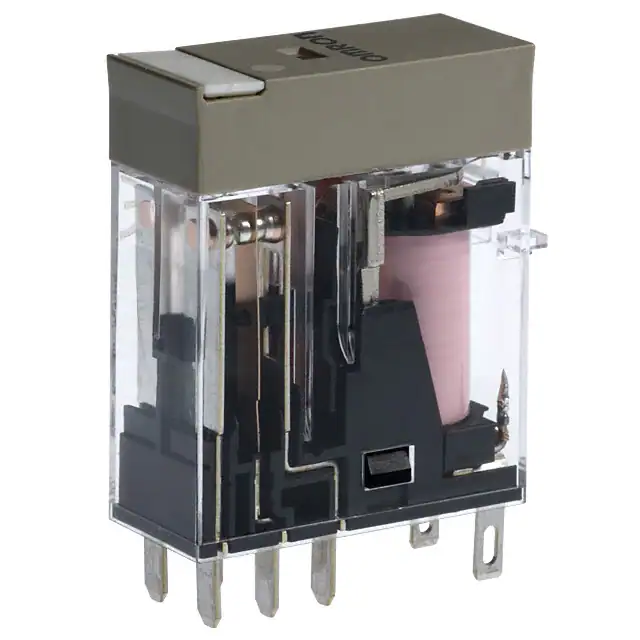

| Part Number | G2R-1A-T DC12 | G2R-1-S DC12(S) | G2R-1-S DC24(S) | G2R-2-S DC24(S) | G2R-1-S AC24(S) |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| Series | G2R | G2RS | G2RS | G2RS | G2RS |
| Packaging | Tray | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Chassis Mount | Socketable | Socketable | Socketable | Socketable |
| Coil Voltage | 12VDC | 12VDC | 24VDC | 24VDC | 24VAC |
| Contact Form | SPST-NO (1 Form A) | SPDT (1 Form C) | SPDT (1 Form C) | DPDT (2 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A | 10 A | 10 A | 5 A | 10 A |
| Switching Voltage | 380VAC, 125VDC - Max | 440VAC, 125VDC - Max | 440VAC, 125VDC - Max | 380VAC, 125VDC - Max | 440VAC, 125VDC - Max |
| Load - Max Switching | 3800VA, 1250W | 4400VA, 1250W | 4400VA, 1250W | 1900VA, 625W | 4400VA, 1250W |
| Coil Current | 43.6 mA | 43.2 mA | 21.6 mA | 21.6 mA | 37.5 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | Sealed - Flux Protection | - | - | - | - |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 8.4 VDC | 8.4 VDC | 16.8 VDC | 16.8 VDC | 19.2 VAC |
| Must Release Voltage | 1.8 VDC | 1.8 VDC | 3.6 VDC | 3.6 VDC | 7.2 VAC |
| Operate Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Release Time | 5 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Operating Temperature | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C |
| Contact Material | Silver Alloy | - | - | - | - |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
