Amphenol PCTEL FPMI2458-DP812NM
- Part No.:
- FPMI2458-DP812NM
- Manufacturer:
- Amphenol PCTEL
- Category:
- RF Antennas
- Package:
- Datasheet:
-
FPMI2458-DP812NM.pdf
- Description:
- PANEL ANTENNA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FPMI2458-DP812NM Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Amphenol PCTEL
- Series:
- VenU® FPMI
- Packaging:
- Bulk
- Product Status:
- Obsolete
- RF Family/Standard:
- WiFi
- Frequency Group:
- UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band):
- 2.45GHz, 5.5GHz
- Frequency Range:
- 2.4GHz ~ 2.5GHz, 5.1GHz ~ 5.9GHz
- Antenna Type:
- Panel
- Number of Bands:
- 2
- VSWR:
- 2.25
- Return Loss:
- -
- Gain:
- 13dBi, 12dBi
- Power - Max:
- 25 W
- Features:
- Cable - 1.473m
- Termination:
- N Type Male (8)
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Pole Mount, Wall Mount
- Height (Max):
- 12.008" (305.00mm)
- Applications:
- Bluetooth, Wi-Fi
| Image |  |
 |
|
|
 |

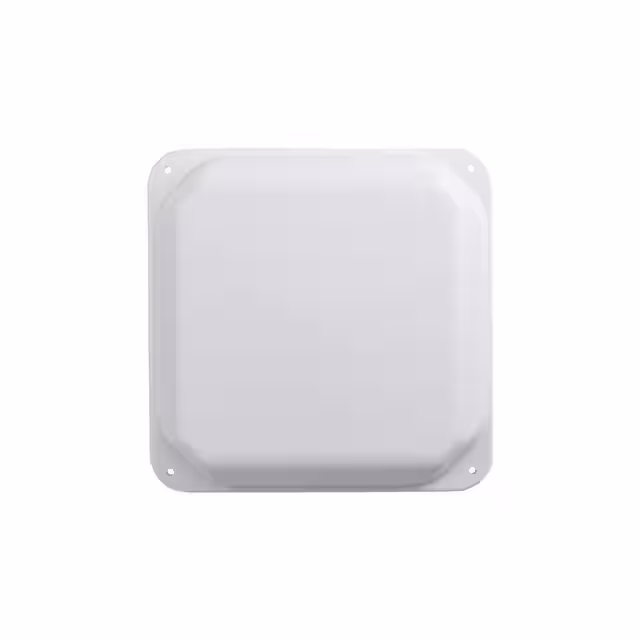

| Part Number | FPMI245808-DP4NF | FPMI2458-DP4RPSMA | FPMI2458-DP2RPSMA | FPMI245865-TP3NM | FPMI2458-VP6RPSMA |
| Manufacturer | Amphenol PCTEL | Amphenol PCTEL | Amphenol PCTEL | Amphenol PCTEL | Amphenol PCTEL |
| Series | VenU® FPMI2458 | * | * | VenU® FPMI2458 | VenU® FPMI2458-VP6RPSMA |
| Packaging | Bulk | Bulk | Bulk | Box | Bulk |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | WiFi | - | - | WiFi | WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | - | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.448GHz, 5.45GHz | - | - | 2.45GHz, 5.375GHz | 2.45GHz, 5.5GHz |
| Frequency Range | 2.4GHz ~ 2.49GHz, 4.9GHz ~ 6GHz | - | - | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz |
| Antenna Type | Panel | - | - | Panel | Panel |
| Number of Bands | 2 | - | - | 2 | 2 |
| VSWR | 2 | - | - | 2 | 2, 2.5 |
| Return Loss | - | - | - | - | - |
| Gain | 7.6dBi, 8dBi | - | - | 8dBi, 8dBi | 8.5dBi, 6dBi |
| Power - Max | 20 W | - | - | 20 W | 25 W |
| Features | - | - | - | - | Cable - 690.6mm |
| Termination | N Type Female | - | - | N Type Male | RP-SMA Male |
| Ingress Protection | IP67 | - | - | IP67 | IP67 |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Pole Mount, Wall Mount | - | - | Bracket Mount | Pole Mount, Wall Mount |
| Height (Max) | 1.339" (34.00mm) | - | - | 1.339" (34.00mm) | 1.969" (50.00mm) |
| Applications | Bluetooth, Wi-Fi | - | - | 802.11ac | Bluetooth, Wi-Fi |
