onsemi FDN335N
- Part No.:
- FDN335N
- Manufacturer:
- onsemi
- Category:
- FETs, MOSFETs
- Package:
- SOT-23-3
- Datasheet:
-
FDN335N.pdf
- Description:
- SOT-23-3 MOSFETS ROHS
- Quantity:
Unit Price:$0.08
Ext Price:$240.00
- Payment:
- Shipping:
Product Details

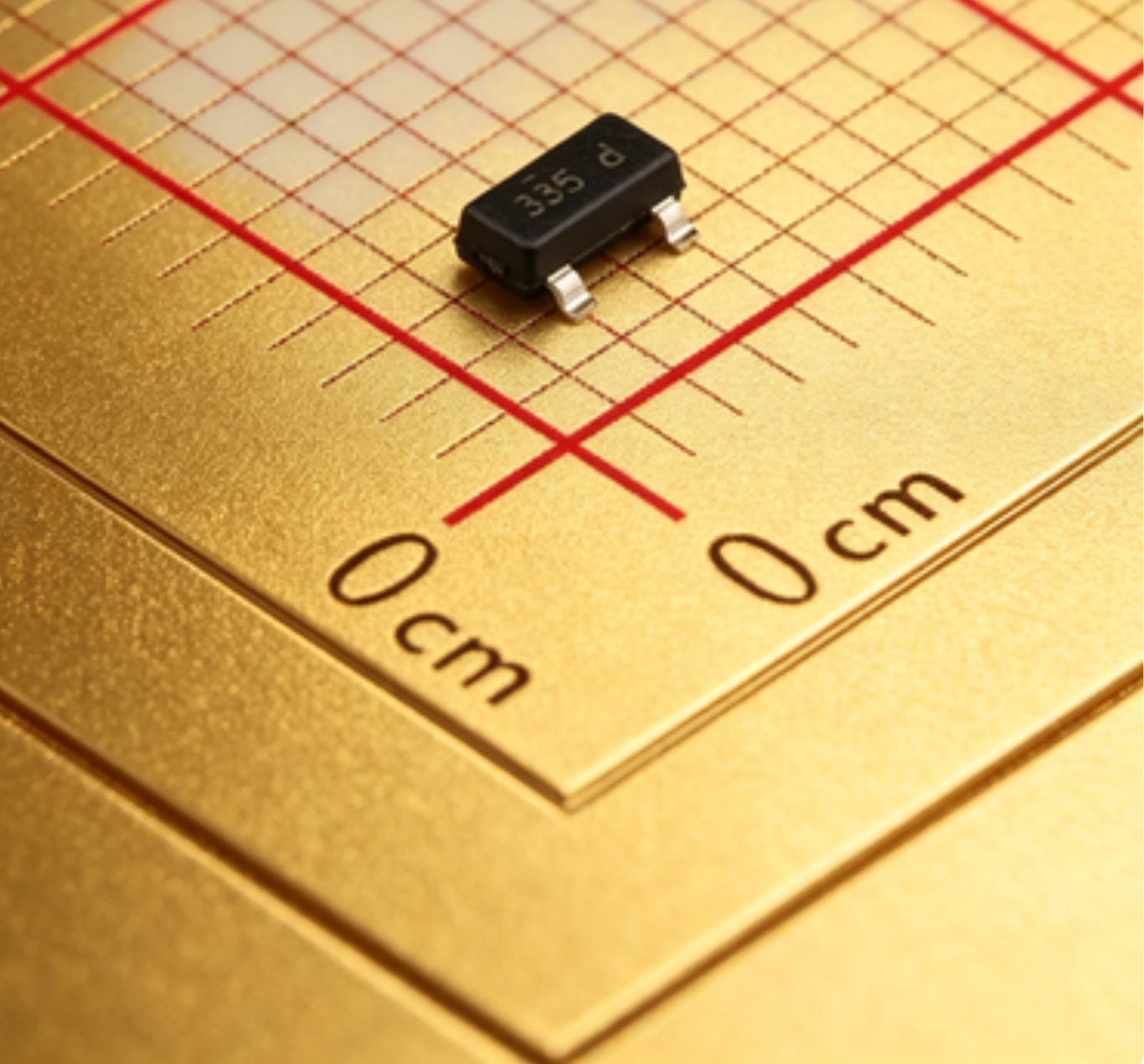

FDN335N - N-Channel MOSFET (SOT-23)
FDN335N is a low-voltage, N-channel MOSFET from ON Semiconductor, designed for efficient switching in low-voltage applications such as load switching and power management circuits.
This page is for reference only. Please confirm specifications using the official datasheet.
Overview
FDN335N is a low-voltage N-channel MOSFET optimized for switching and load-driving applications. It provides low on-resistance and fast switching, suitable for battery-powered and portable systems.
The compact SOT-23 package allows for high-density PCB layouts and easy integration in consumer and industrial electronics.
Key Advantages
Ideal for 12–20V N-channel applications
Reduces conduction losses in switching applications
Fits high-density PCBs
Efficient for low-voltage load control
Feature Summary
20V
N-Channel MOSFET
SOT-23
Load switching, power management

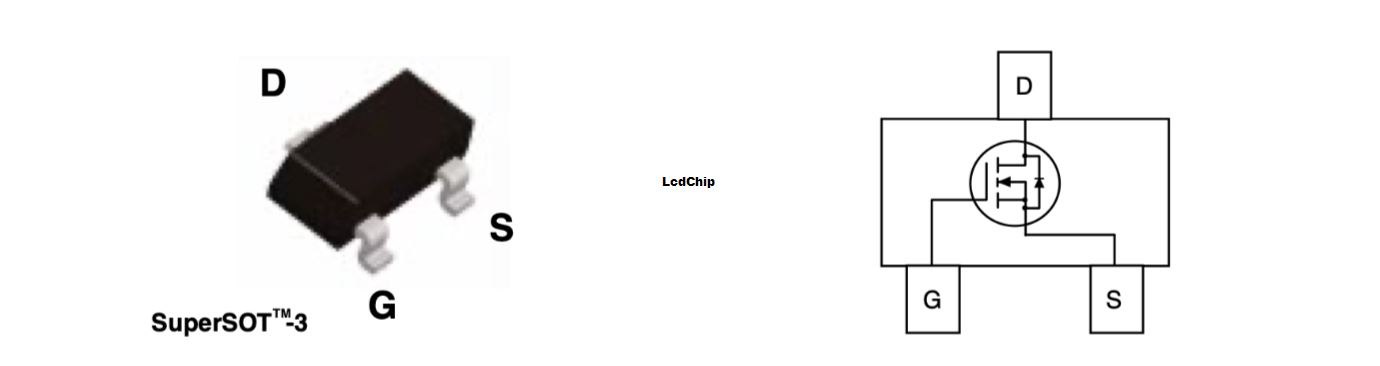

Package & Footprint
The FDN335N comes in a SOT-23 surface-mount package, suitable for compact PCB layouts.
- SOT-23 compact surface-mount package
- Easy PCB integration
- Efficient thermal performance for low-power designs
Pin Functions
Key Specifications
| Type | N-Channel MOSFET |
|---|---|
| Vds | 20V |
| Package | SOT-23 |
| Application | Load switching, power management |
Equivalent
Alternative parts for FDN335N include:
- NCE2302D (NCEPOWER) – Pin-to-pin compatible
- UMWFDN335N (UMW) – Functionally similar
- NXV40UN (Nexperia) – Functionally similar
- TSM2N7002KCX RFG (Taiwan Semiconductor) – Functionally similar
- NCE3416 (NCEPOWER) – Functionally similar
Applications
Load Switching
Powering small loads and devices
Battery-powered circuits
Portable device power management
Consumer Electronics
Switching circuits for low voltage applications
Industrial Applications
Signal switching and small power control
FAQ
Is FDN335N suitable for low-voltage switching?
Can FDN335N be replaced by domestic brands?
FDN335N Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- Package/Case:
- SOT-23-3
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- FET Type:
- P-Channel
- Technology:
- MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss):
- 20 V
- Current - Continuous Drain (Id) @ 25°C:
- 1.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On):
- 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs:
- 70mOhm @ 1.7A, 4.5V
- Vgs(th) (Max) @ Id:
- 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs:
- 3.5 nC @ 4.5 V
- Vgs (Max):
- ±8V
- Input Capacitance (Ciss) (Max) @ Vds:
- 310 pF @ 10 V
- FET Feature:
- -
- Power Dissipation (Max):
- 1W (Ta)
- Operating Temperature:
- 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-23
- Include Parts
