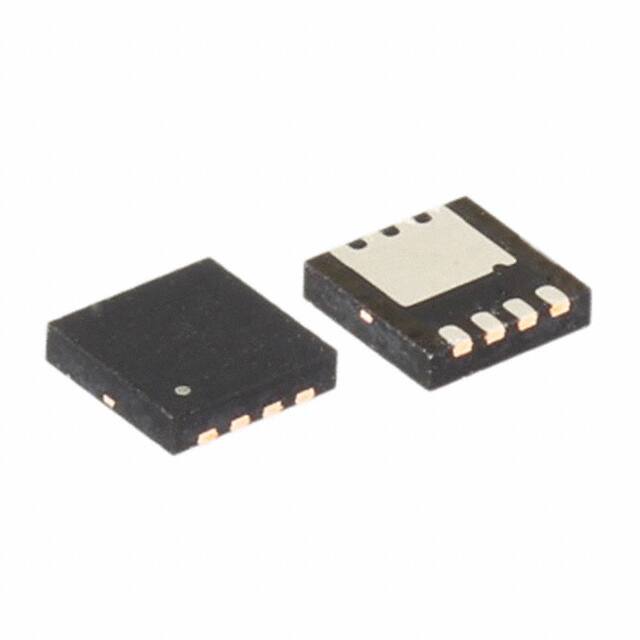

onsemi FDMC4435BZ-F127

Product attributes

Attribute value

Manufacturer:

onsemi

Series:

PowerTrench®

Package/Case:

8-PowerWDFN

Packaging:

Bulk

Product Status:

Discontinued at Digi-Key

FET Type:

P-Channel

Technology:

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss):

30 V

Current - Continuous Drain (Id) @ 25°C:

8.5A (Ta), 18A (Tc)

Drive Voltage (Max Rds On, Min Rds On):

4.5V, 10V

Rds On (Max) @ Id, Vgs:

20mOhm @ 8.5A, 10V

Vgs(th) (Max) @ Id:

3V @ 250µA

Gate Charge (Qg) (Max) @ Vgs:

53 nC @ 10 V

Vgs (Max):

±25V

Input Capacitance (Ciss) (Max) @ Vds:

2045 pF @ 15 V

FET Feature:

-

Power Dissipation (Max):

2.3W (Ta), 31W (Tc)

Operating Temperature:

-55°C ~ 150°C (TJ)

Grade:

-

Qualification:

-

Mounting Type:

Surface Mount

Supplier Device Package:

8-WDFN (3.2x3.2)
