TE Connectivity Aerospace, Defense and Marine FCB-205-0226M
- Part No.:
- FCB-205-0226M
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- RELAY GEN PURPOSE DPDT 5A 28V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FCB-205-0226M Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Series:
- FCB-205, CII
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Chassis Mount
- Coil Voltage:
- 28VDC
- Contact Form:
- DPDT (2 Form C)
- Contact Rating (Current):
- 5 A
- Switching Voltage:
- -
- Load - Max Switching:
- -
- Coil Current:
- 56 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Solder Hook
- Seal Rating:
- Sealed - Hermetically
- Coil Insulation:
- -
- Must Operate Voltage:
- 18 VDC
- Must Release Voltage:
- 1.5 VDC
- Operate Time:
- 4 ms
- Release Time:
- 4 ms
- Operating Temperature:
- -70°C ~ 125°C
- Contact Material:
- Silver Cadmium Oxide (AgCdO)
- Relay Type:
- General Purpose
- Grade:
- Military
- Qualification:
- MIL-R-83536/2
| Image |  |
 |
 |
 |
 |

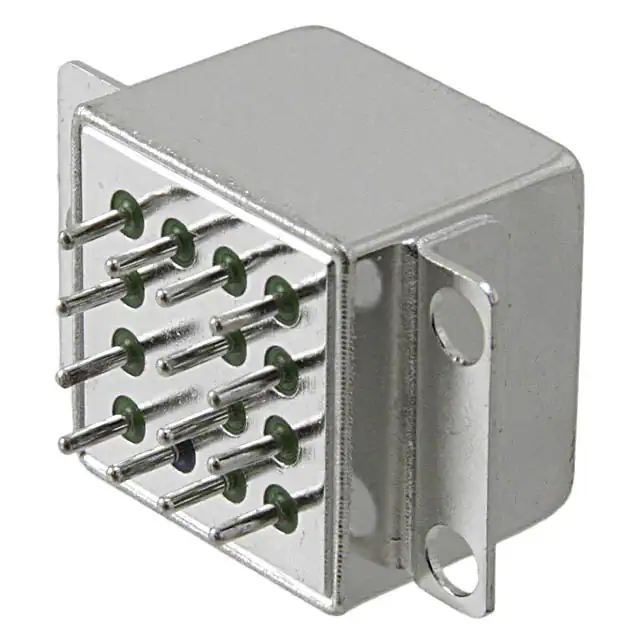

| Part Number | FCB-205-0226M | FCB-205-0224M | FCB-205-0219M | FCB-405-0620M | FCB-205-0224L |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Series | FCB-205, CII | FCB-205, CII | FCB-205, CII | FCB-405, CII | FCB-205, CII |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Coil Voltage | 28VDC | 28VDC | 28VDC | 28VDC | 28VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | 4PDT (4 Form C) | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A | 5 A | 5 A | 5 A | 5 A |
| Switching Voltage | - | - | - | 115VAC, 28VDC - Max | - |
| Load - Max Switching | - | - | - | 575VA, 140W | - |
| Coil Current | 56 mA | 56 mA | 56 mA | 70 mA | 56 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | Diode |
| Termination Style | Solder Hook | Plug In | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 18 VDC | 18 VDC | 13.5 VDC | 18 VDC | 18 VDC |
| Must Release Voltage | 1.5 VDC | 1.5 VDC | 2.3 VDC | 1.5 VDC | 1.5 VDC |
| Operate Time | 4 ms | 4 ms | 4 ms | 6 ms | 4 ms |
| Release Time | 4 ms | 4 ms | 4 ms | 6 ms | 4 ms |
| Operating Temperature | -70°C ~ 125°C | -70°C ~ 125°C | -70°C ~ 125°C | -70°C ~ 125°C | -70°C ~ 125°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | - | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | Military | Military | - | Military | - |
| Qualification | MIL-R-83536/2 | MIL-R-83536/2 | - | MIL-R-83536/6 | - |
