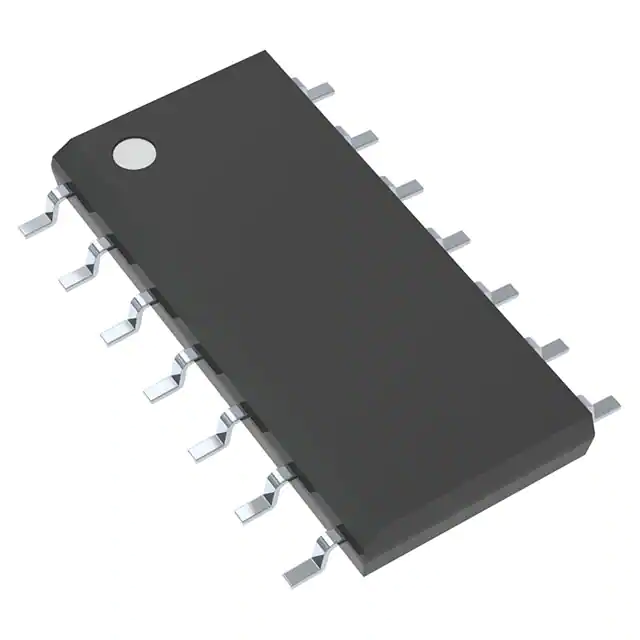

onsemi FAN7393AM
- Part No.:
- FAN7393AM
- Manufacturer:
- onsemi
- Category:
- Gate Drivers
- Package:
- 14-SOIC (0.154", 3.90mm Width)
- Datasheet:
-
FAN7393AM.pdf
- Description:
- IC GATE DRVR HALF-BRIDGE 14SOP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
FAN7393AM Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- -
- Package/Case:
- 14-SOIC (0.154", 3.90mm Width)
- Packaging:
- Tube
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Driven Configuration:
- Half-Bridge
- Channel Type:
- Synchronous
- Number of Drivers:
- 2
- Gate Type:
- IGBT, N-Channel MOSFET
- Voltage - Supply:
- 10V ~ 20V
- Logic Voltage - VIL, VIH:
- 0.8V, 2.5V
- Current - Peak Output (Source, Sink):
- 2.5A, 2.5A
- Input Type:
- Non-Inverting
- High Side Voltage - Max (Bootstrap):
- 600 V
- Rise / Fall Time (Typ):
- 25ns, 15ns
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 14-SOP
| Image |  |
 |
| Part Number | FAN7393AMX | FAN7393AM |
| Manufacturer | onsemi | onsemi |
| Series | - | - |
| Package/Case | 14-SOIC (0.154", 3.90mm Width) | 14-SOIC (0.154", 3.90mm Width) |
| Packaging | Tape & Reel (TR) | Tube |
| Product Status | Active | Obsolete |
| Programmable | Not Verified | Not Verified |
| Driven Configuration | Half-Bridge | Half-Bridge |
| Channel Type | Synchronous | Synchronous |
| Number of Drivers | 2 | 2 |
| Gate Type | IGBT, N-Channel MOSFET | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 2.5A, 2.5A | 2.5A, 2.5A |
| Input Type | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V | 600 V |
| Rise / Fall Time (Typ) | 25ns, 15ns | 25ns, 15ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 14-SOP | 14-SOP |
