STMicroelectronics EVAL-IBD002-35W

Name: EVAL-IBD002-35W
Brand: STMicroelectronics
SKU: EVAL-IBD002-35W
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: EVAL-IBD002-35W

Manufacturer:: STMicroelectronics

Category:: LED Driver Evaluation Boards

Package:

Datasheet:: EVAL-IBD002-35W.pdf

Description:: EVAL BOARD FOR HVLED002

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

EVAL-IBD002-35W Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: STMicroelectronics

Series:: -

Packaging:: Bulk

Product Status:: Active

Current - Output / Channel:: 700mA

Outputs and Type:: 11 Non-Isolated Outputs

Voltage - Output:: 24V ~ 48V

Features:: Dimmable

Voltage - Input:: 48V ~ 60V

Contents:: Board(s)

Utilized IC / Part:: HVLED002

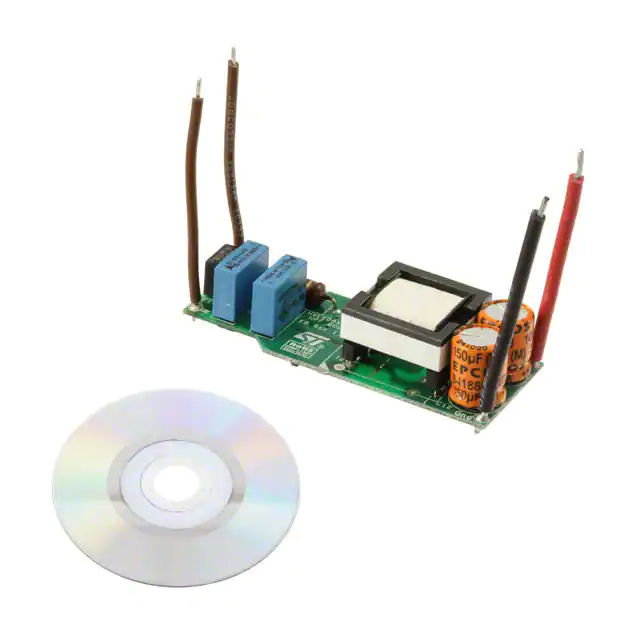

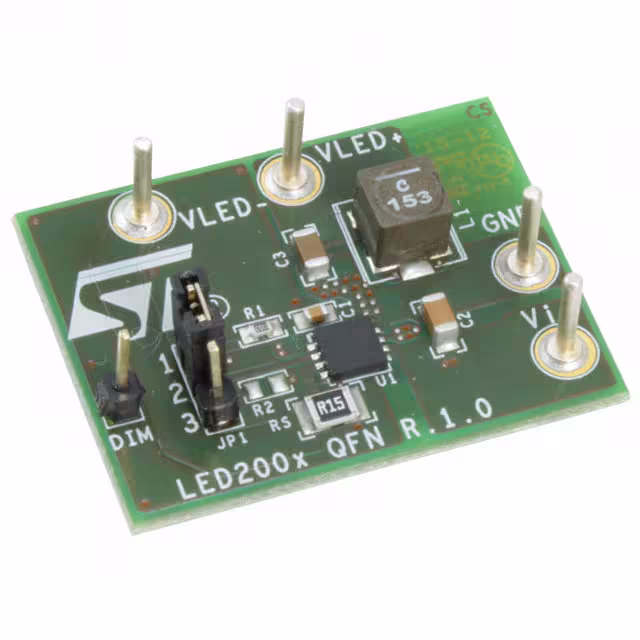

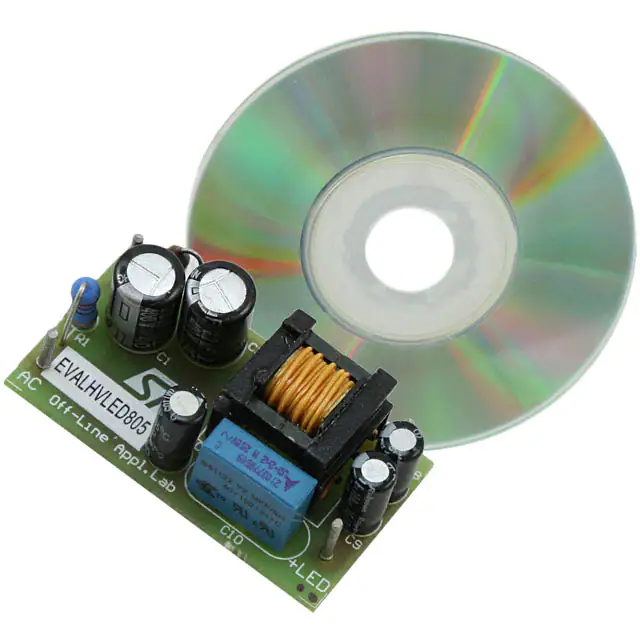

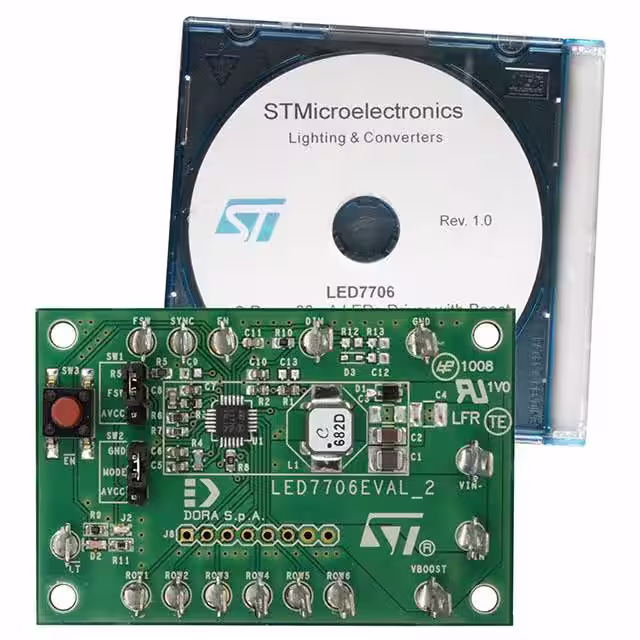

Part Number	EVAL-IBD002-35W	EVALHVLED815W15	EVALED2000P	EVALED7706	EVALHVLED805
Manufacturer	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Series	-	-	-	-	-
Packaging	Bulk	Box	Box	Box	Bulk
Product Status	Active	Active	Obsolete	Obsolete	Active
Current - Output / Channel	700mA	-	3A	30mA	350mA
Outputs and Type	11 Non-Isolated Outputs	1 Isolated Output	1 Non-Isolated Output	6 Non-Isolated Outputs	1 Isolated Output
Voltage - Output	24V ~ 48V	-	-	36V	12V
Features	Dimmable	-	Dimmable	Dimmable	-
Voltage - Input	48V ~ 60V	11.5V ~ 23V	3V ~ 18V	4.5V ~ 36V	185 ~ 265 VAC
Contents	Board(s)	Board(s)	Board(s)	Board(s)	Board(s)
Utilized IC / Part	HVLED002	HVLED815PF	LED2000	LED7706	HVLED805
