Intel EPM7192EQC160-15YY
- Part No.:
- EPM7192EQC160-15YY
- Manufacturer:
- Intel
- Package:
- 160-BQFP
- Datasheet:
-
EPM7192EQC160-15YY.pdf
- Description:
- IC CPLD 192MC 15NS 160QFP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EPM7192EQC160-15YY Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Intel
- Series:
- MAX® 7000
- Package/Case:
- 160-BQFP
- Packaging:
- Tray
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Programmable Type:
- EE PLD
- Delay Time tpd(1) Max:
- 15 ns
- Voltage Supply - Internal:
- 4.75V ~ 5.25V
- Number of Logic Elements/Blocks:
- 12
- Number of Macrocells:
- 192
- Number of Gates:
- 3750
- Number of I/O:
- 124
- Operating Temperature:
- 0°C ~ 70°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 160-PQFP (28x28)

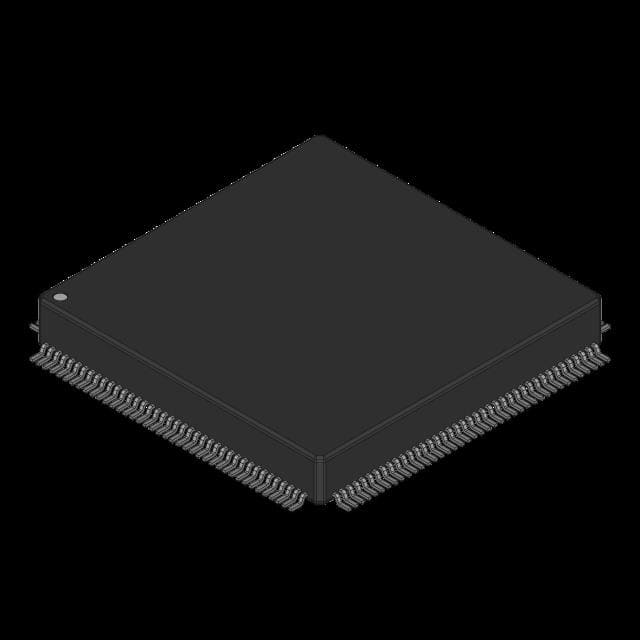

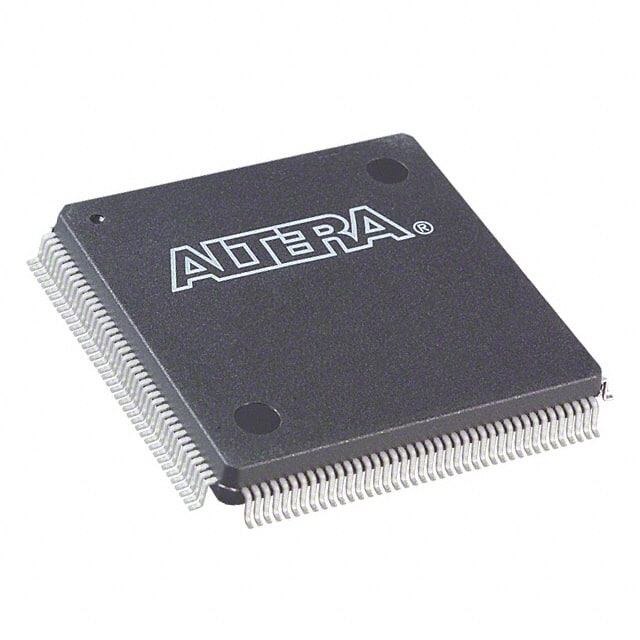

| Image |  |
|
 |
 |
| Part Number | EPM7192EQC160-12 | EPM7192EQC160-15 | EPM7192EQC160-20 | EPM7192EQC160-15YY |
| Manufacturer | Intel | Intel | Intel | Intel |
| Series | MAX® 7000 | MAX® 7000 | MAX® 7000 | MAX® 7000 |
| Package/Case | 160-BQFP | 160-BQFP | 160-BQFP | 160-BQFP |
| Packaging | Tray | Tray | Tray | Tray |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified |
| Programmable Type | EE PLD | EE PLD | EE PLD | EE PLD |
| Delay Time tpd(1) Max | 12 ns | 15 ns | 20 ns | 15 ns |
| Voltage Supply - Internal | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Number of Logic Elements/Blocks | 12 | 12 | 12 | 12 |
| Number of Macrocells | 192 | 192 | 192 | 192 |
| Number of Gates | 3750 | 3750 | 3750 | 3750 |
| Number of I/O | 124 | 124 | 124 | 124 |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 160-PQFP (28x28) | 160-PQFP (28x28) | 160-PQFP (28x28) | 160-PQFP (28x28) |
