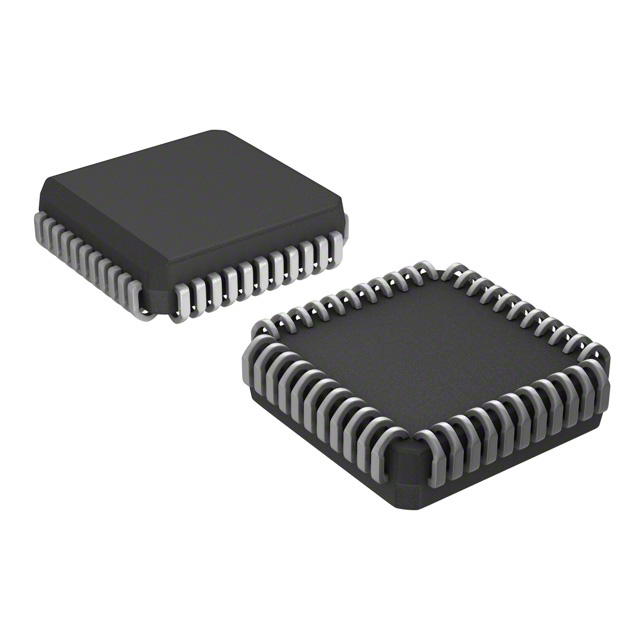

Microchip Technology ATF1502AS-10JU44
- Part No.:
- ATF1502AS-10JU44
- Manufacturer:
- Microchip Technology
- Package:
- 44-LCC (J-Lead)
- Datasheet:
-
ATF1502AS-10JU44.pdf
- Description:
- IC CPLD 32MC 10NS 44PLCC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ATF1502AS-10JU44 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- ATF15xx
- Package/Case:
- 44-LCC (J-Lead)
- Packaging:
- Tube
- Product Status:
- Active
- Programmable:
- Verified
- Programmable Type:
- In System Programmable (min 10K program/erase cycles)
- Delay Time tpd(1) Max:
- 10 ns
- Voltage Supply - Internal:
- 4.5V ~ 5.5V
- Number of Logic Elements/Blocks:
- -
- Number of Macrocells:
- 32
- Number of Gates:
- -
- Number of I/O:
- 32
- Operating Temperature:
- -40°C ~ 85°C (TA)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 44-PLCC (16.6x16.6)
| Image |  |
|
 |
|
|

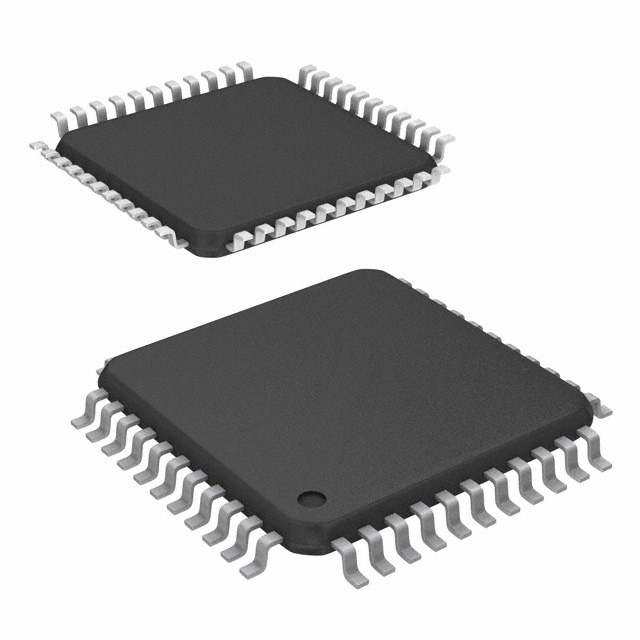

| Part Number | ATF1502ASV-15AU44 | ATF1502AS-10AU44 | ATF1502AS-10JU44 | ATF1502ASV-15JU44 | ATF1502ASL-25JU44 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | ATF15xx | ATF15xx | ATF15xx | ATF15xx | ATF15xx |
| Package/Case | 44-TQFP | 44-TQFP | 44-LCC (J-Lead) | 44-LCC (J-Lead) | 44-LCC (J-Lead) |
| Packaging | Tray | Tray | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Verified | Verified | Verified | Verified | Verified |
| Programmable Type | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) | In System Programmable (min 10K program/erase cycles) |
| Delay Time tpd(1) Max | 15 ns | 10 ns | 10 ns | 15 ns | 25 ns |
| Voltage Supply - Internal | 3V ~ 3.6V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 3V ~ 3.6V | 4.5V ~ 5.5V |
| Number of Logic Elements/Blocks | - | - | - | - | - |
| Number of Macrocells | 32 | 32 | 32 | 32 | 32 |
| Number of Gates | - | - | - | - | - |
| Number of I/O | 32 | 32 | 32 | 32 | 32 |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 44-TQFP (10x10) | 44-TQFP (10x10) | 44-PLCC (16.6x16.6) | 44-PLCC (16.6x16.6) | 44-PLCC (16.6x16.6) |
- Include Parts
- Popular Search
The following parts include "ATF1502AS-10JU44" in Silicon Labs ATF1502AS-10JU44.
- Part Number
- Manufacturer
- Package
- Description
- 5M40ZE64C5N Intel 64-TQFP Exposed Pad IC CPLD 32MC 7.5NS 64EQFP
- ATF1502ASV-15AU44 Microchip Technology 44-TQFP IC CPLD 32MC 15NS 44TQFP
- 5M80ZE64C5N Intel 64-TQFP Exposed Pad IC CPLD 64MC 7.5NS 64EQFP
- 5M80ZT100C5N Intel 100-TQFP IC CPLD 64MC 7.5NS 100TQFP
- ATF1502AS-10AU44 Microchip Technology 44-TQFP IC CPLD 32MC 10NS 44TQFP
- ATF1502AS-10JU44 Microchip Technology 44-LCC (J-Lead) IC CPLD 32MC 10NS 44PLCC
- 5M80ZE64I5N Intel 64-TQFP Exposed Pad IC CPLD 64MC 7.5NS 64EQFP
- 5M80ZT100I5N Intel 100-TQFP IC CPLD 64MC 7.5NS 100TQFP
- LC4032V-75TN48C Lattice Semiconductor Corporation 48-LQFP IC CPLD 32MC 7.5NS 48TQFP
- ATF1504ASV-15AU44 Microchip Technology 44-TQFP IC CPLD 64MC 15NS 44TQFP
