TT Electronics/BI EN12-HN22AF25
- Part No.:
- EN12-HN22AF25
- Manufacturer:
- TT Electronics/BI
- Category:
- Encoders
- Package:
- Datasheet:
-
EN12-HN22AF25.pdf
- Description:
- ROTARY ENCODER MECHANICAL 24PPR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EN12-HN22AF25 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TT Electronics/BI
- Series:
- EN12
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Not Verified
- Encoder Type:
- Mechanical
- Output Type:
- Quadrature (Incremental)
- Pulses per Revolution:
- 24
- Voltage - Supply:
- -
- Actuator Type:
- 6mm Dia Flatted End
- Detent:
- Yes
- Built in Switch:
- No
- Mounting Type:
- PCB, Through Hole
- Orientation:
- Vertical
- Termination Style:
- PC Pin
- Rotational Life (Cycles Min):
- 30K
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
|
 |
 |

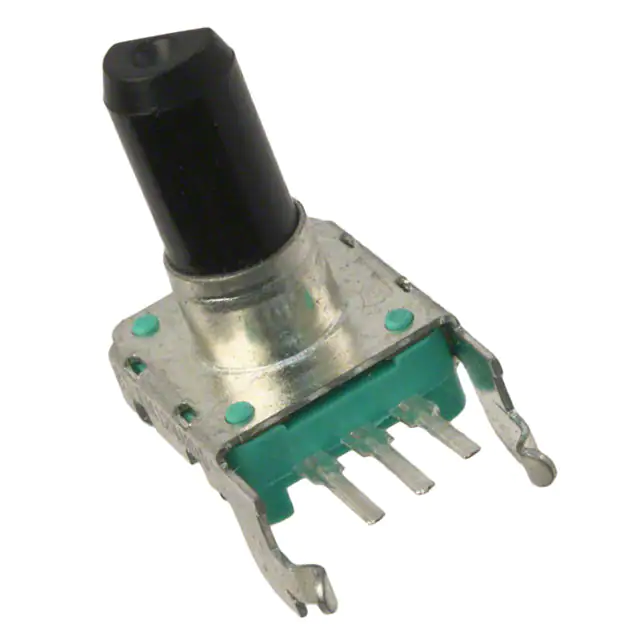

| Part Number | EN12-HN22AF25 | EN12-HS22AF20 | EN12-HS22AF30 | EN12-VN20AF20 | EN12-HS22AF18 |
| Manufacturer | TT Electronics/BI | TT Electronics/BI | TT Electronics/BI | TT Electronics/BI | TT Electronics/BI |
| Series | EN12 | EN12 | EN12 | EN12 | EN12 |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Encoder Type | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical |
| Output Type | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) |
| Pulses per Revolution | 24 | 24 | 24 | 24 | 24 |
| Voltage - Supply | - | - | - | - | - |
| Actuator Type | 6mm Dia Flatted End | 6mm Dia Flatted End | 6mm Dia Flatted End | 6mm Dia Flatted End | 6mm Dia Flatted End |
| Detent | Yes | Yes | Yes | No | Yes |
| Built in Switch | No | Yes | Yes | No | Yes |
| Mounting Type | PCB, Through Hole | PCB, Through Hole | PCB, Through Hole | PCB, Through Hole | PCB, Through Hole |
| Orientation | Vertical | Vertical | Vertical | Right Angle | Vertical |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Rotational Life (Cycles Min) | 30K | 30K | 30K | 30K | 30K |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
