TT Electronics/BI EN11-HSM1AF15
- Part No.:
- EN11-HSM1AF15
- Manufacturer:
- TT Electronics/BI
- Category:
- Encoders
- Package:
- Datasheet:
-
EN11-HSM1AF15.pdf
- Description:
- ROTARY ENCODER MECHANICAL 20PPR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EN11-HSM1AF15 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TT Electronics/BI
- Series:
- EN11
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- Not Verified
- Encoder Type:
- Mechanical
- Output Type:
- Quadrature (Incremental)
- Pulses per Revolution:
- 20
- Voltage - Supply:
- -
- Actuator Type:
- 6mm Dia Flatted End
- Detent:
- Yes
- Built in Switch:
- Yes
- Mounting Type:
- Panel, PCB Through Hole
- Orientation:
- Vertical
- Termination Style:
- PC Pin
- Rotational Life (Cycles Min):
- 30K
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

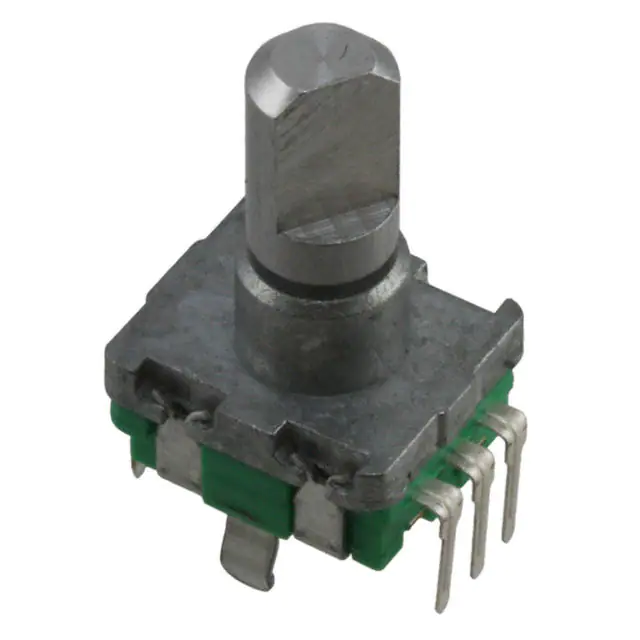

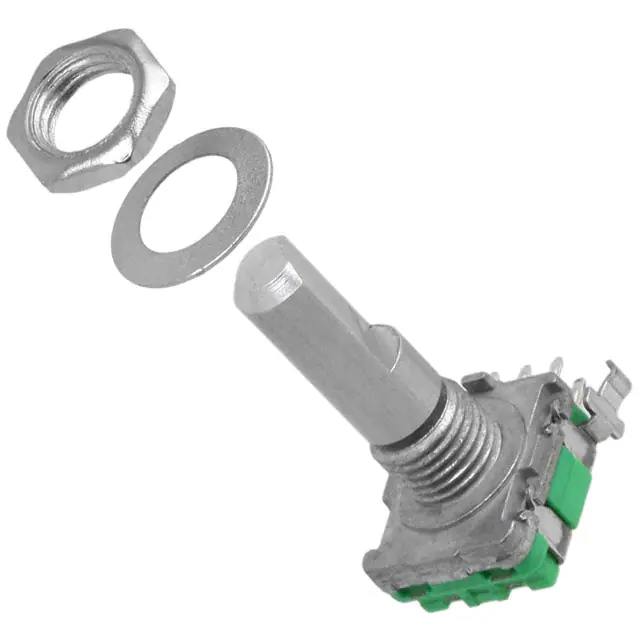

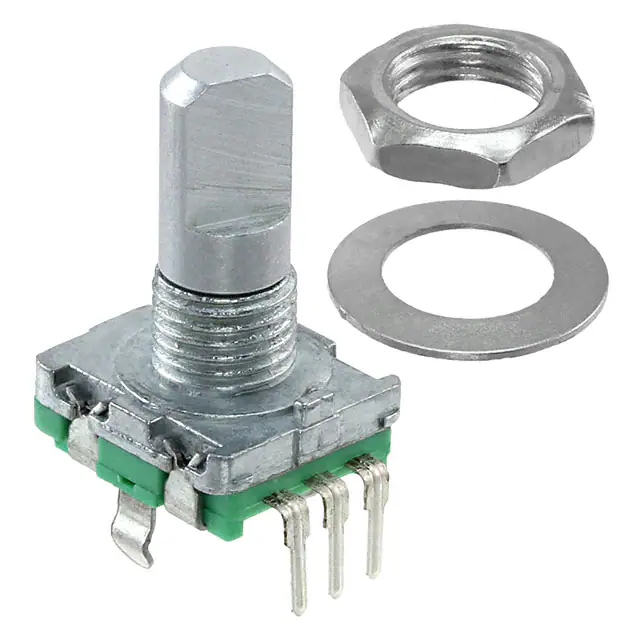

| Part Number | EN11-HSM1BF20 | EN11-HSM1AF15 | EN11-HNM1AF15 | EN11-VSM1AF20 | EN11-HSB1AF15 |
| Manufacturer | TT Electronics/BI | TT Electronics/BI | TT Electronics/BI | TT Electronics/BI | TT Electronics/BI |
| Series | EN11 | EN11 | EN11 | EN11 | EN11 |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Encoder Type | Mechanical | Mechanical | Mechanical | Mechanical | Mechanical |
| Output Type | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) |
| Pulses per Revolution | 20 | 20 | 20 | 20 | 20 |
| Voltage - Supply | - | - | - | - | - |
| Actuator Type | 6mm Dia Flatted End | 6mm Dia Flatted End | 6mm Dia Flatted End | 6mm Dia Flatted End | 6mm Dia Flatted End |
| Detent | Yes | Yes | Yes | Yes | Yes |
| Built in Switch | Yes | Yes | No | Yes | Yes |
| Mounting Type | Panel, PCB Through Hole | Panel, PCB Through Hole | Panel, PCB Through Hole | Panel, PCB Through Hole | PCB, Through Hole |
| Orientation | Vertical | Vertical | Vertical | Right Angle | Vertical |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Rotational Life (Cycles Min) | 30K | 30K | 30K | 30K | 30K |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
