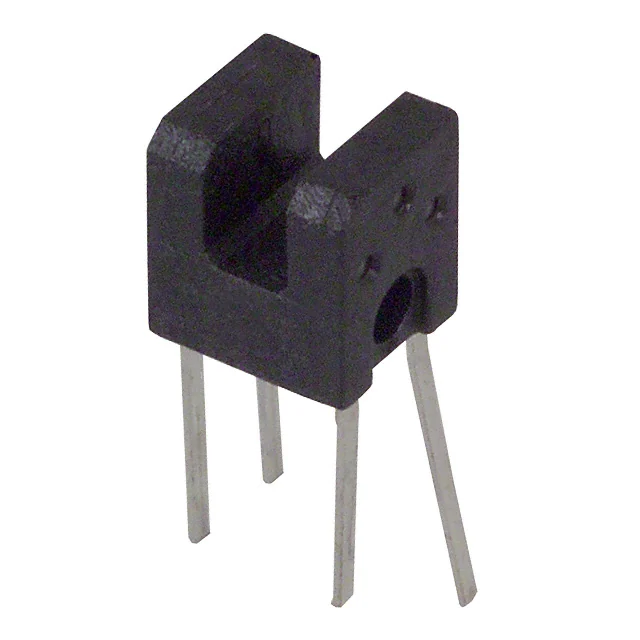

Omron Electronics Inc-EMC Div EE-SX1103
- Part No.:
- EE-SX1103
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Package:
- PCB Mount
- Description:
- SENSOR OPT SLOT PHOTOTRAN PCB MT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
EE-SX1103 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Electronics Inc-EMC Div
- Series:
- -
- Package/Case:
- PCB Mount
- Packaging:
- Bulk
- Product Status:
- Active
- Sensing Distance:
- 0.079" (2mm)
- Sensing Method:
- Through-Beam
- Output Configuration:
- Phototransistor
- Current - DC Forward (If) (Max):
- 50 mA
- Current - Collector (Ic) (Max):
- 30 mA
- Voltage - Collector Emitter Breakdown (Max):
- 30 V
- Response Time:
- 10µs, 10µs
- Operating Temperature:
- -25°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Through Hole
| Image |  |
 |
 |
 |
|

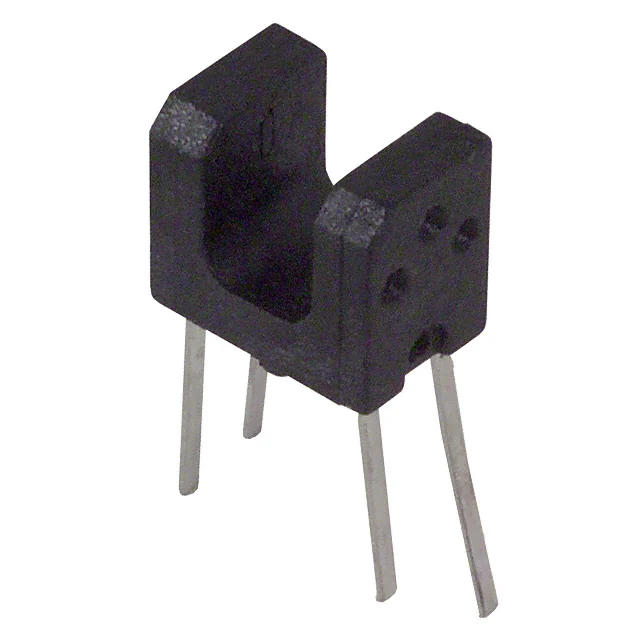

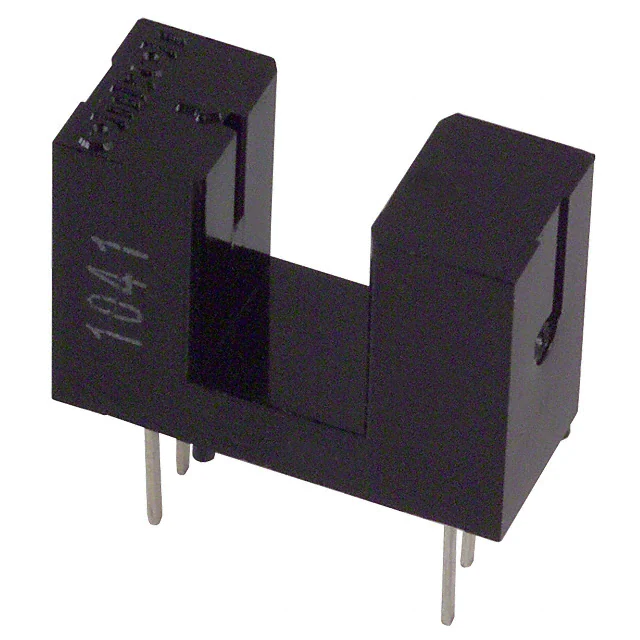

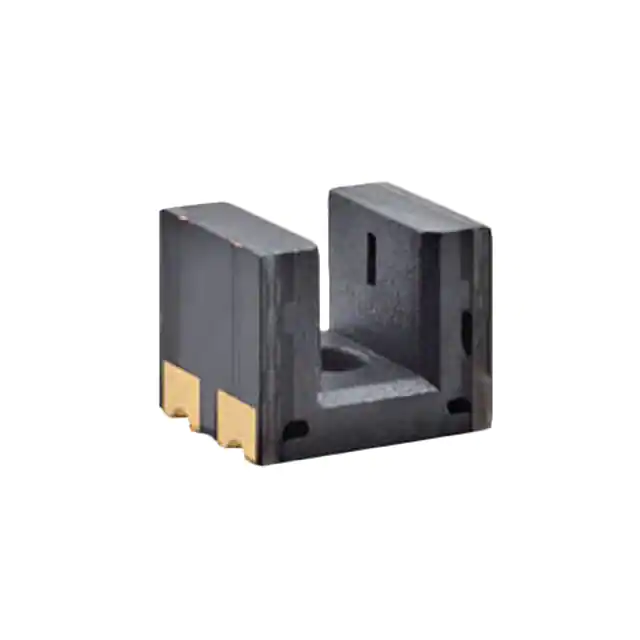

| Part Number | EE-SX1320 | EE-SX1103 | EE-SX1041 | EE-SX1106 | EE-SX1330 |
| Manufacturer | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div | Omron Electronics Inc-EMC Div |
| Series | - | - | - | - | - |
| Package/Case | Module, Connector, Slot Type | PCB Mount | PCB Mount | PCB Mount | Module, Connector, Slot Type |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Bulk | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Sensing Distance | 0.079" (2mm) | 0.079" (2mm) | 0.197" (5mm) | 0.118" (3mm) | 0.118" (3mm) |
| Sensing Method | Through-Beam | Through-Beam | Through-Beam | Through-Beam | Through-Beam |
| Output Configuration | Phototransistor | Phototransistor | Phototransistor | Phototransistor | Phototransistor |
| Current - DC Forward (If) (Max) | 5 mA | 50 mA | 50 mA | 50 mA | 25 mA |
| Current - Collector (Ic) (Max) | 20 mA | 30 mA | 20 mA | 30 mA | 20 mA |
| Voltage - Collector Emitter Breakdown (Max) | - | 30 V | 30 V | 30 V | - |
| Response Time | - | 10µs, 10µs | 4µs, 4µs | 10µs, 10µs | - |
| Operating Temperature | -30°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 95°C | -25°C ~ 85°C | -30°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Through Hole | Through Hole | Through Hole | Surface Mount |
