Analog Devices Inc./Maxim Integrated DS28E40ATB/VY+
- Part No.:
- DS28E40ATB/VY+
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Specialized ICs
- Package:
- 10-WFDFN Exposed Pad
- Description:
- IC AUTHENTICATION CHIP 10TDFN
- Quantity:
Unit Price:$2.00
Ext Price:$1248.00
- Payment:
- Shipping:
Product Details
DS28E40ATB/VY+ - DS28E40 Automotive 1-Wire ECC Authenticator
DS28E40ATB/VY+ from Analog Devices Inc./Maxim Integrated is an automotive P-256 secure authenticator with SHA-256, TRNG, protected memory and authenticated GPIO over 1-Wire.
Specifications were checked against the manufacturer data sheet and current distributor listing.
Overview
DS28E40 provides ECDSA signing and verification, ECDH key exchange, HMAC-SHA-256, encrypted memory and authenticated GPIO for automotive component trust.
Key Advantages
P-256 hardware and protected keys authenticate components without exposing private credentials.
Single-contact 1-Wire reduces interconnect while supporting secure boot and protected data.
Available in an established surface-mount or through-hole ordering format.
Electrical and environmental limits are defined by the official data sheet.
Feature Summary
Automotive 1-Wire secure authenticator
1-Wire
3.3 V +/-10%; -40 C to +125 C
10-WFDFN Exposed Pad
Package & Footprint

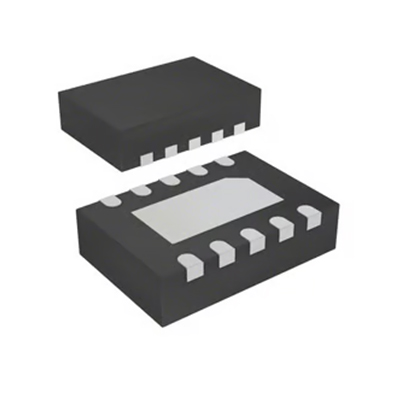

This ordering code uses the 10-WFDFN Exposed Pad package.
Pin Functions
Confirm exact numbering and the latest land pattern before PCB release.
Key Specifications
| ECC | ECDSA P-256 sign/verify |
|---|---|
| Key agreement | ECDH P-256 |
| Hash | SHA-256 and HMAC |
| Memory | 6 Kb OTP/configurable memory |
| Random | NIST SP 800-90B TRNG |
| Identifier | Unique 64-bit ROM ID |
| GPIO | Authenticated open-drain |
| Interface | 1-Wire |
| Temperature | -40 C to +125 C |
| Qualification | AEC-Q100 Grade 1 |
| Package | 10-pin side-wettable TDFN |
Replacement Considerations
No database-listed substitute was linked without exact electrical, package and protocol compatibility.
Manufacturer Information
Exact production AEC-Q100 wettable-flank TDFN tray code checked.
Applications
Authenticates modules, tools and calibrated parts.
Verifies signed firmware and controls trusted enable signals.
Quality & Authenticity
Match the complete ordering code, package marking and reel or lot label to authorized-channel records. Inspect moisture handling and solderability requirements before assembly.
FAQ
What is the main function?
Automotive 1-Wire secure authenticator
What package is used?
10-WFDFN Exposed Pad
Is a verified internal replacement available?
No exact internal replacement was verified. Review any candidate against the manufacturer documentation.
Is the package image ready?
No. The registered package JPG is currently missing.
Engineering Notice
Use the latest manufacturer documentation for schematic, PCB, thermal and production approval. Distributor attributes are useful for sourcing but do not replace the official data sheet.
DS28E40ATB/VY+ Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Series:
- DeepCover®
- Package/Case:
- 10-WFDFN Exposed Pad
- Packaging:
- Tray
- Product Status:
- Active
- Programmable:
- -
- Type:
- Authentication Chip
- Applications:
- -
- Mounting Type:
- Surface Mount, Wettable Flank
- Supplier Device Package:
- 10-TDFN (3x3)
- Grade:
- Automotive
- Qualification:
- AEC-Q100
