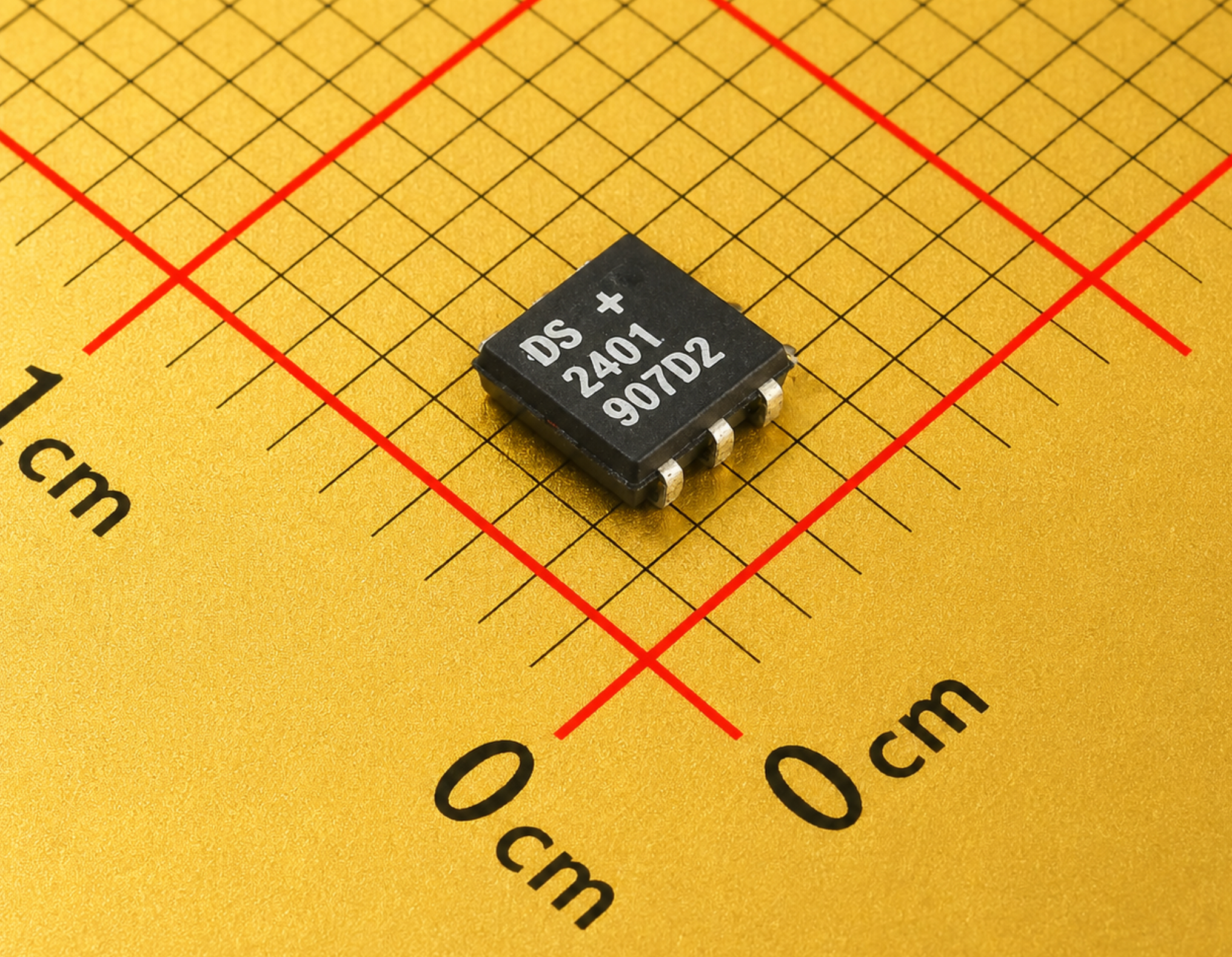

Analog Devices Inc./Maxim Integrated DS2401P+T&R
- Part No.:
- DS2401P+T&R
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Specialized ICs
- Package:
- 6-SMD, J-Lead
- Description:
- IC SILICON SERIAL NUMBER 6TSOC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
Product Details
DS2401P+T&R - Analog Devices Silicon Serial Number
The DS2401P+T&R is a classic Silicon Serial Number device from Analog Devices. It provides an absolute, unique 64-bit registration number that can be read by a simple 1-Wire® interface. Housed in a small TSOC-6 package, it is ideal for electronic tagging, equipment serialization, and asset tracking in a wide range of industrial and consumer applications.
Product Overview
The DS2401 contains a unique factory-lasered 64-bit ROM that serves as an electronic barcode. Because it requires only a single data pin and a ground connection to communicate, it is exceptionally easy to integrate into existing designs where reliable, tamper-resistant identification is needed.
About Analog Devices
Analog Devices, Inc. (ADI) is a global leader in high-performance analog technology, renowned for their expertise in 1-Wire® communication protocols and industrial-grade sensor-interface solutions.
Key Advantages
Factory-lasered, guaranteed unique identifier.
Single-contact 1-Wire® communication.
Operates solely on power from the 1-Wire bus.
Small surface-mount footprint for asset tagging.
Package & Mechanical Details
Compact TSOC-6 package designed for automated SMT assembly.
- Industrial Temp: -40°C to +85°C
- RoHS: Compliant
Pin Functions & Terminal Map
Utilizes the standard 1-Wire protocol for data transfer; requires minimal external components for integration.
Technical Specifications
| Part Number | DS2401P+T&R |
|---|---|
| Manufacturer | Analog Devices |
| Function | Silicon Serial Number (ROM) |
Equivalent & Replacement Guide
For direct replacement, consider the following:
- DS2401P+: Direct pin-to-pin equivalent, non-tape-and-reel version.
Typical Applications
Electronic Asset Tracking
Equipment Serialization
Quality & Authenticity
Industrial grade quality standards, sourced via authorized Analog Devices distribution channels.
Frequently Asked Questions
Is the serial number programmable?
No, it is factory-lasered for guaranteed uniqueness.Does it require external power?
No, it is parasitically powered from the 1-Wire interface.Disclaimer
Technical details are for reference only. Consult official Analog Devices documentation for design-in qualification.
DS2401P+T&R Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Series:
- -
- Package/Case:
- 6-SMD, J-Lead
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Silicon Serial Number
- Applications:
- PCB, Network Node, Equipment Identification/Registration
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 6-TSOC
- Grade:
- -
- Qualification:
- -
