SCHURTER Inc. DLF-28-0006
- Part No.:
- DLF-28-0006
- Manufacturer:
- SCHURTER Inc.
- Category:
- Fixed Inductors
- Package:
- Radial, Horizontal, 4 Leads
- Description:
- CMC 3A 2LN TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DLF-28-0006 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- SCHURTER Inc.
- Series:
- DLF
- Package/Case:
- Radial, Horizontal, 4 Leads
- Packaging:
- Bulk
- Product Status:
- Last Time Buy
- Type:
- -
- Material - Core:
- -
- Inductance:
- 100 µH
- Tolerance:
- ±15%
- Current Rating (Amps):
- 3 A
- Current - Saturation (Isat):
- -
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 70mOhm
- Q @ Freq:
- -
- Frequency - Self Resonant:
- 7.5MHz
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 125°C
- Inductance Frequency - Test:
- -
- Features:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Size / Dimension:
- 1.114" L x 1.079" W (28.30mm x 27.40mm)
- Height - Seated (Max):
- 0.657" (16.70mm)
| Image |  |
 |
 |
 |
|

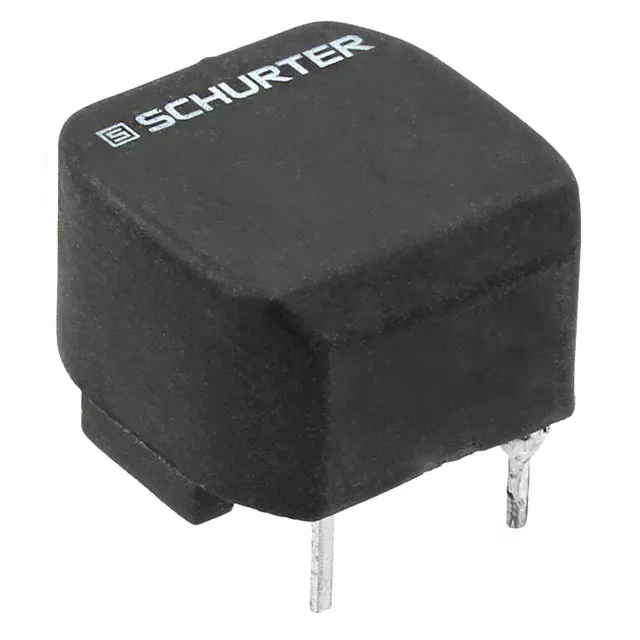

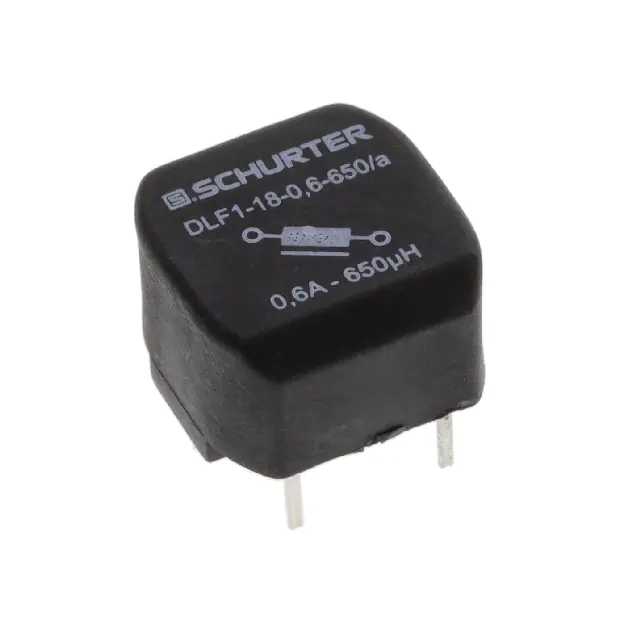

| Part Number | DLF-28-0006 | DLF-28-0004 | DLF-18-0006 | DLF-18-0002 | DLF-18-0004 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Series | DLF | DLF | DLF | DLF | DLF |
| Package/Case | Radial, Horizontal, 4 Leads | Radial, Horizontal, 4 Leads | Radial, Horizontal, 4 Leads | Radial, Horizontal, 4 Leads | Radial, Horizontal, 4 Leads |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy | Last Time Buy |
| Type | - | - | - | - | - |
| Material - Core | - | - | - | - | - |
| Inductance | 100 µH | 500 µH | 15 µH | 650 µH | 110 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 3 A | 1.5 A | 4 A | 600 mA | 1.5 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 70mOhm | 270mOhm | 17mOhm | 690mOhm | 150mOhm |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 7.5MHz | 1.2MHz | 28MHz | 1MHz | 8MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | - | - | - | - | - |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 1.114" L x 1.079" W (28.30mm x 27.40mm) | 1.114" L x 1.079" W (28.30mm x 27.40mm) | 0.717" L x 0.701" W (18.20mm x 17.80mm) | 0.717" L x 0.701" W (18.20mm x 17.80mm) | 0.717" L x 0.701" W (18.20mm x 17.80mm) |
| Height - Seated (Max) | 0.657" (16.70mm) | 0.657" (16.70mm) | 0.496" (12.60mm) | 0.496" (12.60mm) | 0.496" (12.60mm) |
