Comchip Technology DF005S-HF
- Part No.:
- DF005S-HF
- Manufacturer:
- Comchip Technology
- Category:
- Bridge Rectifiers
- Package:
- 4-SMD, Gull Wing
- Description:
- BRIDGE RECT 1PHASE 50V 1A DFS
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DF005S-HF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Comchip Technology
- Series:
- -
- Package/Case:
- 4-SMD, Gull Wing
- Packaging:
- Tube
- Product Status:
- Active
- Diode Type:
- Single Phase
- Technology:
- Standard
- Voltage - Peak Reverse (Max):
- 50 V
- Current - Average Rectified (Io):
- 1 A
- Voltage - Forward (Vf) (Max) @ If:
- 1.1 V @ 1 A
- Current - Reverse Leakage @ Vr:
- 10 µA @ 50 V
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- DFS

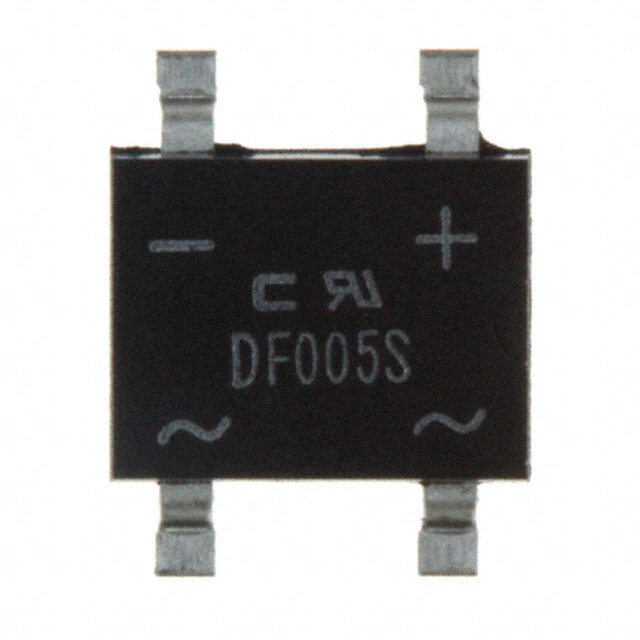

| Image |  |
 |
 |
|
|
| Part Number | DF005S-G | DF005ST-G | DF005ST-HF | DF005SP-HF | DF005S-HF |
| Manufacturer | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology | Comchip Technology |
| Series | - | - | - | - | - |
| Package/Case | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tube |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Standard | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 50 V | 50 V | 50 V | 50 V | 50 V |
| Current - Average Rectified (Io) | 1 A | 1 A | 1 A | 1 A | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A | 1.1 V @ 1 A | 1.1 V @ 1 A | 1.1 V @ 1 A | 1.1 V @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V | 10 µA @ 50 V | 10 µA @ 50 V | 10 µA @ 50 V | 10 µA @ 50 V |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DFS | DFS | DFS | DFS | DFS |
