Panasonic Electric Works DE1A1B-24V
- Part No.:
- DE1A1B-24V
- Manufacturer:
- Panasonic Electric Works
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
DE1A1B-24V.pdf
- Description:
- RELAY GEN PURPOSE DPST 8A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DE1A1B-24V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- DE
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 24VDC
- Contact Form:
- DPST-NO/NC (1 Form A, 1 Form B)
- Contact Rating (Current):
- 8 A
- Switching Voltage:
- 250VAC, 30VDC - Max
- Load - Max Switching:
- 2500VA, 300W
- Coil Current:
- 8.3 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- 16.8 VDC
- Must Release Voltage:
- 2.4 VDC
- Operate Time:
- 10 ms
- Release Time:
- 5 ms
- Operating Temperature:
- -40°C ~ 70°C
- Contact Material:
- Silver Tin Oxide (AgSnO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
|
|
|

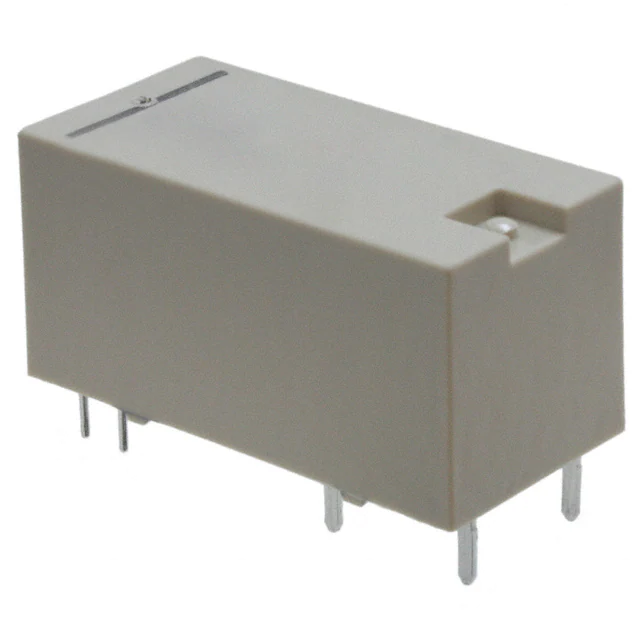

| Part Number | DE1A1B-24V | DE1A1B-L2-24V | DE1A1B-12V | DE1A1B-5V | DE1A1B-L2-12V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | DE | DE | DE | DE | DE |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 24VDC | 24VDC | 12VDC | 5VDC | 12VDC |
| Contact Form | DPST-NO/NC (1 Form A, 1 Form B) | DPST-NO/NC (1 Form A, 1 Form B) | DPST-NO/NC (1 Form A, 1 Form B) | DPST-NO/NC (1 Form A, 1 Form B) | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Rating (Current) | 8 A | 8 A | 8 A | 8 A | 8 A |
| Switching Voltage | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max |
| Load - Max Switching | 2500VA, 300W | 2500VA, 300W | 2500VA, 300W | 2500VA, 300W | 2500VA, 300W |
| Coil Current | 8.3 mA | 8.3 mA | 16.7 mA | 40 mA | 16.7 mA |
| Coil Type | Non Latching | Latching, Dual Coil | Non Latching | Non Latching | Latching, Dual Coil |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | - | - | - | - | - |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 16.8 VDC | 16.8 VDC | 8.4 VDC | 3.5 VDC | 8.4 VDC |
| Must Release Voltage | 2.4 VDC | - | 1.2 VDC | 0.5 VDC | - |
| Operate Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Release Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Operating Temperature | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
