Analog Devices Inc. DC2551A-A
- Part No.:
- DC2551A-A
- Manufacturer:
- Analog Devices Inc.
- Category:
- Op Amp Evaluation Boards
- Package:
- Description:
- DEMO BOARD FOR LT1997
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC2551A-A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Channels per IC:
- 1 - Single
- Amplifier Type:
- General Purpose
- Output Type:
- Single-Ended, Rail-to-Rail
- Slew Rate:
- 0.75V/µs
- -3db Bandwidth:
- 1.1 MHz
- Current - Output / Channel:
- 30 mA
- Current - Supply (Main IC):
- 350 µA
- Voltage - Supply, Single/Dual (±):
- 3V ~ 50V, ±1.5V ~ 25V
- Utilized IC / Part:
- LT1997-3
- Contents:
- Board(s)

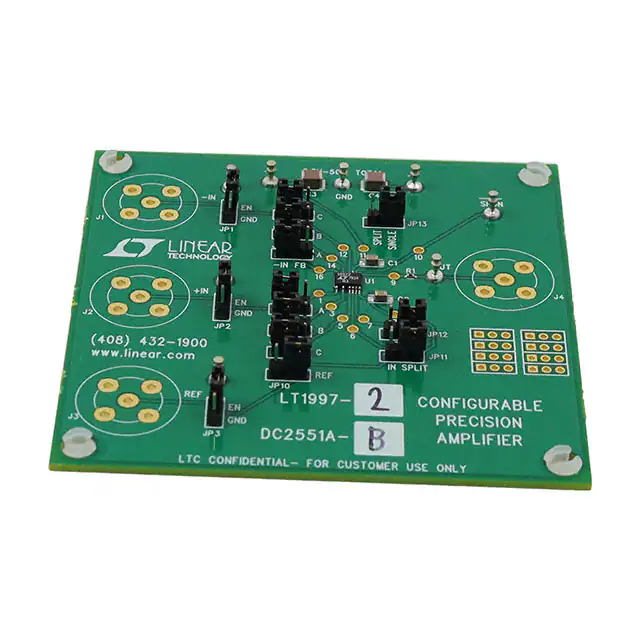

| Image |  |
 |
 |
| Part Number | DC2551A-A | DC2551A-B | DC2551A-C |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - |
| Packaging | Box | Box | Box |
| Product Status | Active | Active | Active |
| Channels per IC | 1 - Single | 1 - Single | 1 - Single |
| Amplifier Type | General Purpose | General Purpose | General Purpose |
| Output Type | Single-Ended, Rail-to-Rail | Single-Ended, Rail-to-Rail | Single-Ended, Rail-to-Rail |
| Slew Rate | 0.75V/µs | 0.75V/µs | 0.75V/µs |
| -3db Bandwidth | 1.1 MHz | 1.2 MHz | 650 kHz |
| Current - Output / Channel | 30 mA | 32 mA | 34 mA |
| Current - Supply (Main IC) | 350 µA | 350 µA | 350 µA |
| Voltage - Supply, Single/Dual (±) | 3V ~ 50V, ±1.5V ~ 25V | 3V ~ 50V, ±1.5V ~ 25V | 3V ~ 50V, ±1.5V ~ 25V |
| Utilized IC / Part | LT1997-3 | LT1997-2 | LT1997-1 |
| Contents | Board(s) | Board(s) | Board(s) |
