Analog Devices Inc. DC1774A-B
- Part No.:
- DC1774A-B
- Manufacturer:
- Analog Devices Inc.
- Category:
- Op Amp Evaluation Boards
- Package:
- Datasheet:
-
DC1774A-B.pdf
- Description:
- BOARD EVAL LTC6430 400-1000MHZ
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC1774A-B Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Channels per IC:
- 1 - Single
- Amplifier Type:
- Differential
- Output Type:
- Differential
- Slew Rate:
- -
- -3db Bandwidth:
- 2 GHz
- Current - Output / Channel:
- 105 mA
- Current - Supply (Main IC):
- 160 mA
- Voltage - Supply, Single/Dual (±):
- 4.75V ~ 5.25V
- Utilized IC / Part:
- LTC6430-15
- Contents:
- Board(s)
| Image |  |
 |
|

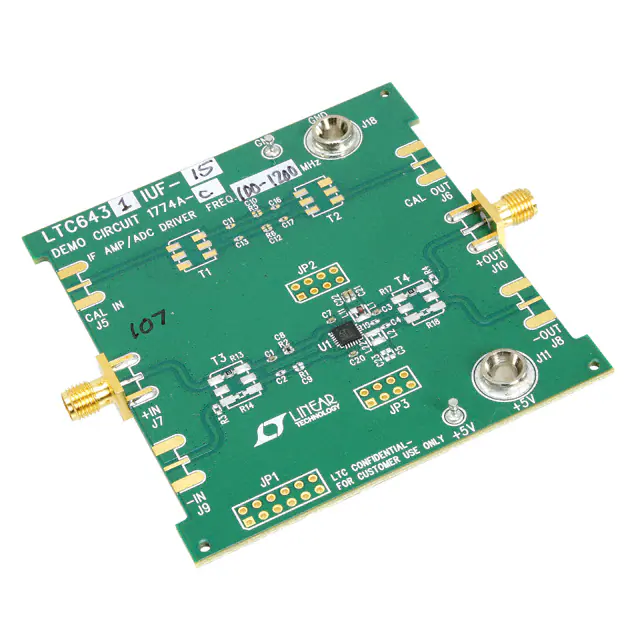

| Part Number | DC1774A-C | DC1774A-B | DC1774A-A |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - |
| Packaging | Box | Box | Box |
| Product Status | Active | Active | Active |
| Channels per IC | 1 - Single | 1 - Single | 1 - Single |
| Amplifier Type | General Purpose | Differential | Differential |
| Output Type | Single-Ended | Differential | Differential |
| Slew Rate | - | - | - |
| -3db Bandwidth | 2 GHz | 2 GHz | 2 GHz |
| Current - Output / Channel | 105 mA | 105 mA | 105 mA |
| Current - Supply (Main IC) | 90 mA | 160 mA | 160 mA |
| Voltage - Supply, Single/Dual (±) | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Utilized IC / Part | LTC6431-15 | LTC6430-15 | LTC6430-15 |
| Contents | Board(s) | Board(s) | Board(s) |
