Analog Devices Inc. DC1698A-A
- Part No.:
- DC1698A-A
- Manufacturer:
- Analog Devices Inc.
- Category:
- Op Amp Evaluation Boards
- Package:
- Datasheet:
-
DC1698A-A.pdf
- Description:
- EVAL BOARD FOR LT1999-10
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC1698A-A Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Channels per IC:
- 1 - Single
- Amplifier Type:
- Current Sense
- Output Type:
- -
- Slew Rate:
- 3V/µs
- -3db Bandwidth:
- 2 MHz
- Current - Output / Channel:
- -
- Current - Supply (Main IC):
- 5.8 mA
- Voltage - Supply, Single/Dual (±):
- 4.5V ~ 5.5V
- Utilized IC / Part:
- LT1999
- Contents:
- Board(s)

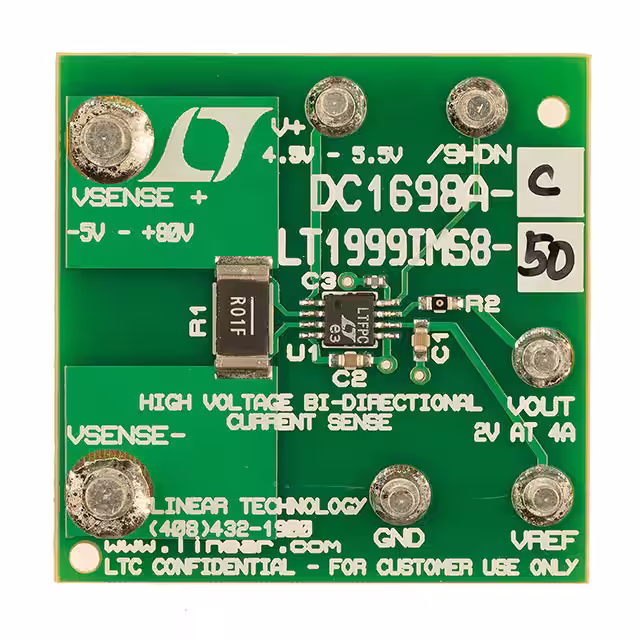

| Image |  |
 |
 |
| Part Number | DC1698A-A | DC1698A-B | DC1698A-C |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - |
| Packaging | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active |
| Channels per IC | 1 - Single | 1 - Single | 1 - Single |
| Amplifier Type | Current Sense | Current Sense | Current Sense |
| Output Type | - | - | - |
| Slew Rate | 3V/µs | 3V/µs | 3V/µs |
| -3db Bandwidth | 2 MHz | 2 MHz | 2 MHz |
| Current - Output / Channel | - | - | - |
| Current - Supply (Main IC) | 5.8 mA | 5.8 mA | 5.8 mA |
| Voltage - Supply, Single/Dual (±) | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Utilized IC / Part | LT1999 | LT1999 | LT1999 |
| Contents | Board(s) | Board(s) | Board(s) |
