Analog Devices Inc. DC1620A-G
- Part No.:
- DC1620A-G
- Manufacturer:
- Analog Devices Inc.
- Package:
- Datasheet:
-
DC1620A-G.pdf
- Description:
- BOARD DEMO 125MSPS LTC2145-14
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC1620A-G Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Active
- Number of A/D Converters:
- 2
- Number of Bits:
- 14
- Sampling Rate (Per Second):
- 125M
- Data Interface:
- Parallel
- Input Range:
- 1 ~ 2Vpp
- Power (Typ) @ Conditions:
- 315mW @ 125MSPS
- Utilized IC / Part:
- LTC2145-14
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

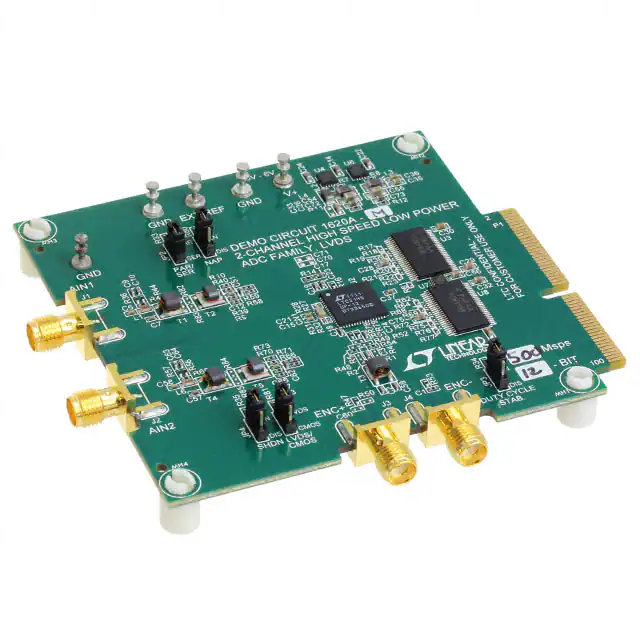

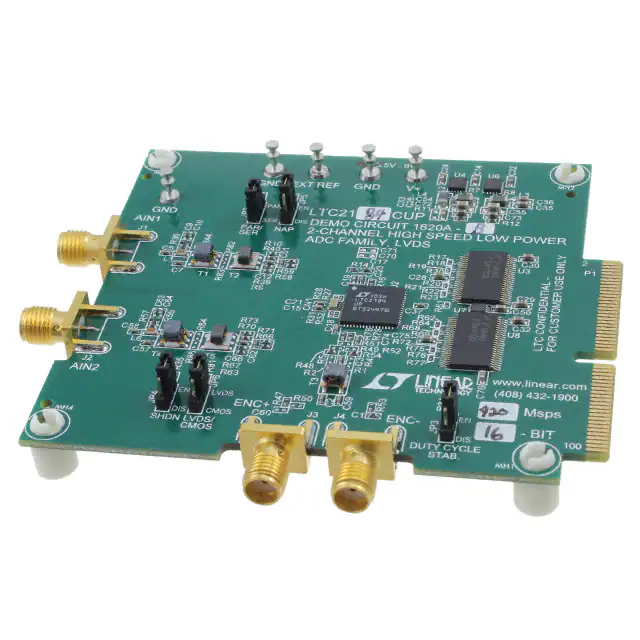

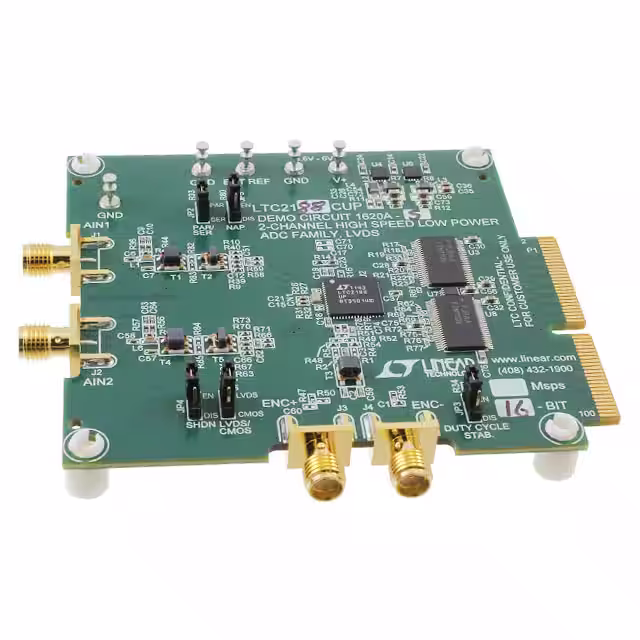

| Part Number | DC1620A-G | DC1620A-K | DC1620A-A | DC1620A-B | DC1620A-S |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk | Box |
| Product Status | Active | Active | Active | Active | Active |
| Number of A/D Converters | 2 | 2 | 2 | 2 | 2 |
| Number of Bits | 14 | 14 | 16 | 16 | 16 |
| Sampling Rate (Per Second) | 125M | 40M | 125M | 105M | 20M |
| Data Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Input Range | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp | 1 ~ 2Vpp |
| Power (Typ) @ Conditions | 315mW @ 125MSPS | 190mW @ 40MSPS | 520mW @ 125MSPS | 454mW @ 105MSPS | 218mW @ 20MSPS |
| Utilized IC / Part | LTC2145-14 | LTC2141-14 | LTC2185 | LTC2184 | LTC2188 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
