Analog Devices Inc. DC1147A-F
- Part No.:
- DC1147A-F
- Manufacturer:
- Analog Devices Inc.
- Category:
- Op Amp Evaluation Boards
- Package:
- Description:
- EVAL BOARD FOR LTC6405
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC1147A-F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Packaging:
- Box
- Product Status:
- Active
- Channels per IC:
- 1 - Single
- Amplifier Type:
- Differential
- Output Type:
- Differential, Rail-to-Rail
- Slew Rate:
- 690V/µs
- -3db Bandwidth:
- 800 MHz
- Current - Output / Channel:
- 60 mA
- Current - Supply (Main IC):
- 18 mA
- Voltage - Supply, Single/Dual (±):
- 2.7V ~ 5.25V
- Utilized IC / Part:
- LTC6405
- Contents:
- Board(s)
| Image |  |
 |
 |
 |
 |

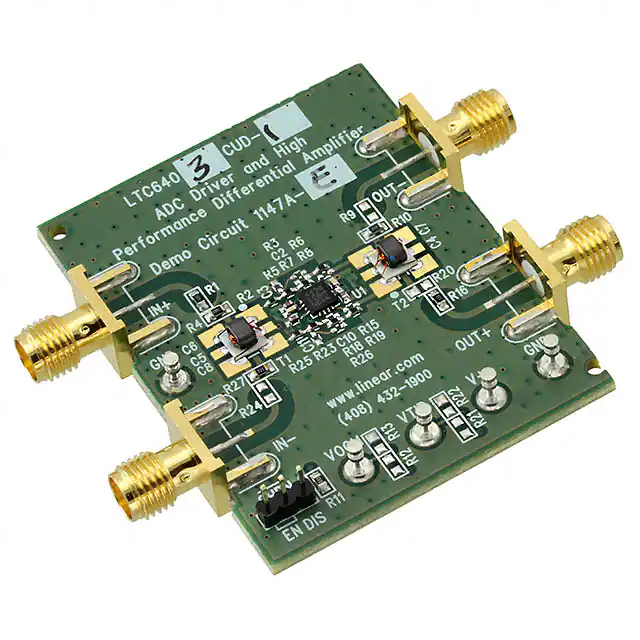

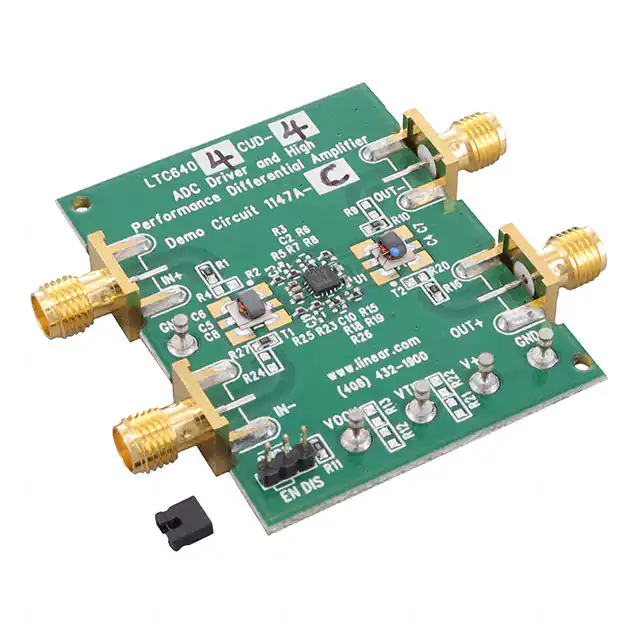

| Part Number | DC1147A-F | DC1147A-A | DC1147A-D | DC1147A-E | DC1147A-C |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - | - | - |
| Packaging | Box | Box | Box | Box | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Channels per IC | 1 - Single | 1 - Single | 1 - Single | 1 - Single | 1 - Single |
| Amplifier Type | Differential | Differential | Differential | Differential | Differential |
| Output Type | Differential, Rail-to-Rail | Differential, Rail-to-Rail | Differential, Rail-to-Rail | Differential, Rail-to-Rail | Differential, Rail-to-Rail |
| Slew Rate | 690V/µs | 450V/µs | 630V/µs | 200V/µs | 1200V/µs |
| -3db Bandwidth | 800 MHz | 600 MHz | 800 MHz | 200 MHz | 530 MHz |
| Current - Output / Channel | 60 mA | 65 mA | 55 mA | 74 mA | 20 mA |
| Current - Supply (Main IC) | 18 mA | 27.8 mA | 18 mA | 11 mA | 31 mA |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 5.25V | 2.7V ~ 5.25V | 2.7V ~ 3.5V | 2.7V ~ 5.25V | 2.7V ~ 5.25V |
| Utilized IC / Part | LTC6405 | LTC6404-1 | LTC6406 | LTC6403-1 | LTC6404-4 |
| Contents | Board(s) | Board(s) | Board(s) | Board(s) | Board(s) |
