Kingbright DC04-11SYKWA
- Part No.:
- DC04-11SYKWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 16-DIP (0.500", 12.70mm)
- Datasheet:
-
DC04-11SYKWA.pdf
- Description:
- DISPLAY 7SEG 0.39" DBL YLW 16DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DC04-11SYKWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 16-DIP (0.500", 12.70mm)
- Packaging:
- Tube
- Product Status:
- Active
- Display Format:
- -
- Number of Characters:
- 2
- Size / Dimension:
- 0.795" H x 0.630" W x 0.276" D (20.20mm x 16.00mm x 7.00mm)
- Digit/Alpha Size:
- 0.39" (10.00mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Cathode
- Color:
- Yellow
- Voltage - Forward (Vf) (Typ):
- 2V
- Current - Test:
- 20mA
- Millicandela Rating:
- 84mcd
- Wavelength - Peak:
- 590nm
- Power Dissipation (Max):
- 75mW

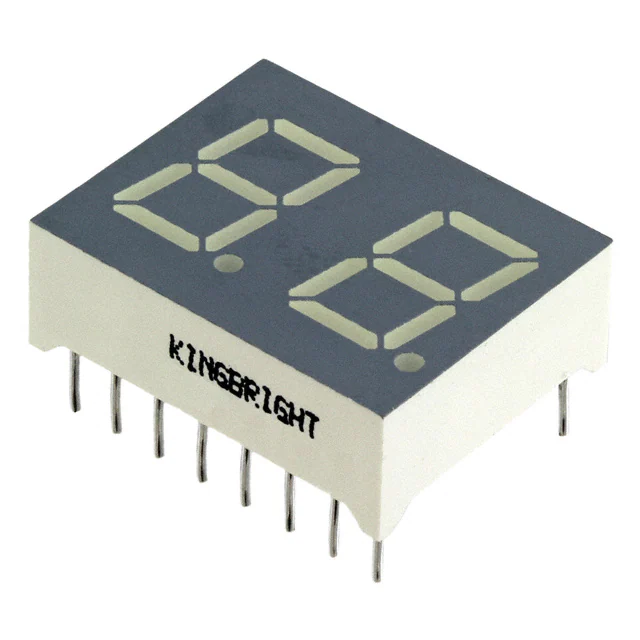

| Image |  |
 |
|
|
|
| Part Number | DC04-11EWA | DC04-11GWA | DC04-11SRWA | DC04-11CGKWA | DC04-11SURKWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - | - |
| Package/Case | 16-DIP (0.500", 12.70mm) | 16-DIP (0.500", 12.70mm) | 16-DIP (0.500", 12.70mm) | 16-DIP (0.500", 12.70mm) | 16-DIP (0.500", 12.70mm) |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 2 | 2 | 2 | 2 | 2 |
| Size / Dimension | 0.630" H x 0.795" W x 0.276" D (16.00mm x 20.20mm x 7.00mm) | 0.630" H x 0.795" W x 0.276" D (16.00mm x 20.20mm x 7.00mm) | 0.630" H x 0.795" W x 0.276" D (16.00mm x 20.20mm x 7.00mm) | 0.795" H x 0.630" W x 0.276" D (20.20mm x 16.00mm x 7.00mm) | 0.795" H x 0.630" W x 0.276" D (20.20mm x 16.00mm x 7.00mm) |
| Digit/Alpha Size | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) | 0.39" (10.00mm) |
| Display Type | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Common Pin | Common Cathode | Common Cathode | Common Cathode | Common Cathode | Common Cathode |
| Color | Red | Green | Red | Green | Red |
| Voltage - Forward (Vf) (Typ) | 2V | 2.2V | 1.85V | 2.1V | 1.95V |
| Current - Test | 20mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 6.4mcd | 8mcd | 29mcd | 25mcd | 54mcd |
| Wavelength - Peak | 627nm | 565nm | 660nm | 574nm | 645nm |
| Power Dissipation (Max) | 75mW | 62.5mW | 75mW | 75mW | 75mW |
