Sensata Technologies, Inc. DAT70510
- Part No.:
- DAT70510
- Manufacturer:
- Sensata Technologies, Inc.
- Category:
- Reed Relays
- Package:
- Description:
- RELAY REED SPST-NO 2A 5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DAT70510 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sensata Technologies, Inc.
- Series:
- DA
- Packaging:
- Tray
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 5VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 2 A
- Switching Voltage:
- 7000VAC, 7000VDC - Max
- Coil Current:
- 179 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- -
- Must Operate Voltage:
- 3.7 VDC
- Must Release Voltage:
- 0.5 VDC
- Operate Time:
- 3 ms
- Release Time:
- 2 ms
- Operating Temperature:
- -20°C ~ 70°C
- Contact Material:
- Tungsten (W)
| Image |  |
|
 |
 |
 |

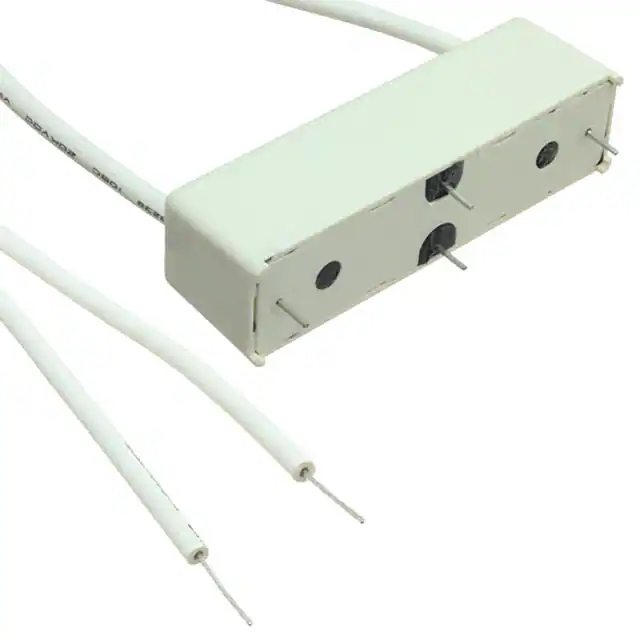

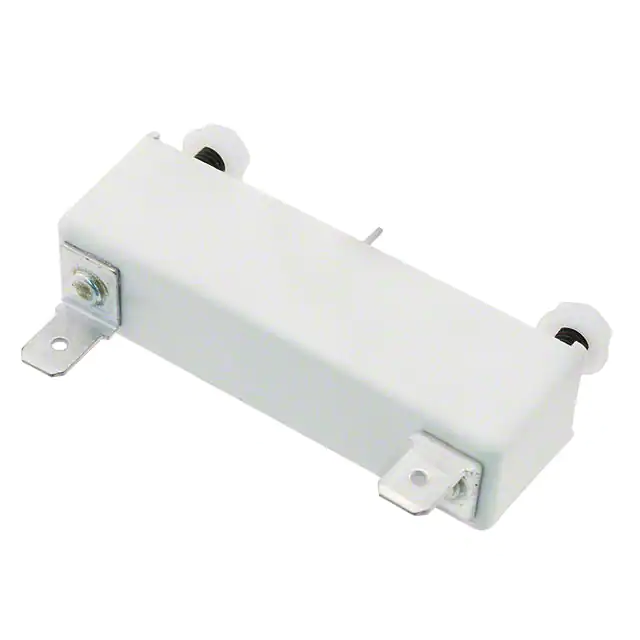

| Part Number | DAT70510 | DAT70510U | DAT70510S | DAT70510F | DAT70510P |
| Manufacturer | Sensata Technologies, Inc. | Sensata Technologies, Inc. | Sensata Technologies, Inc. | Sensata Technologies, Inc. | Sensata Technologies, Inc. |
| Series | DA | DA | DA | DA | DA |
| Packaging | Tray | Bulk | Bulk | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Chassis Mount | Through Hole | Chassis Mount |
| Coil Voltage | 5VDC | 5VDC | 5VDC | 5VDC | 5VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 2 A | 2 A | 2 A | 2 A | 2 A |
| Switching Voltage | 7000VAC, 7000VDC - Max | 7000VAC, 7000VDC - Max | 7000VAC, 7000VDC - Max | 7000VAC, 7000VDC - Max | 7000VAC, 7000VDC - Max |
| Coil Current | 179 mA | 179 mA | 179 mA | 179 mA | 179 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | Quick Connect - 0.250" (6.3mm) | PC Pin, Wire Leads | Solder Turret |
| Seal Rating | - | - | - | - | - |
| Must Operate Voltage | 3.7 VDC | 3.7 VDC | 3.7 VDC | 3.7 VDC | 3.7 VDC |
| Must Release Voltage | 0.5 VDC | 0.5 VDC | 0.5 VDC | 0.5 VDC | 0.5 VDC |
| Operate Time | 3 ms | 3 ms | 3 ms | 3 ms | 3 ms |
| Release Time | 2 ms | 2 ms | 2 ms | 2 ms | 2 ms |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Contact Material | Tungsten (W) | Tungsten (W) | Tungsten (W) | Tungsten (W) | Tungsten (W) |
