Texas Instruments DAC53204RTER
- Part No.:
- DAC53204RTER
- Manufacturer:
- Texas Instruments
- Category:
- Digital to Analog Converters (DAC)
- Package:
- 16-WFQFN Exposed Pad
- Datasheet:
-
DAC53204RTER.pdf
- Description:
- IC DAC 10BIT V OR A-OUT 16WQFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DAC53204RTER Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Texas Instruments
- Series:
- DACx3204
- Package/Case:
- 16-WFQFN Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Number of Bits:
- 10
- Number of D/A Converters:
- 4
- Settling Time:
- 25µs (Typ)
- Output Type:
- Voltage or Current - Buffered
- Differential Output:
- No
- Data Interface:
- I2C, SPI
- Reference Type:
- External, Internal
- Voltage - Supply, Analog:
- 1.71V ~ 5.5V
- Voltage - Supply, Digital:
- 1.62V ~ 5.5V
- INL/DNL (LSB):
- ±1, ±1
- Architecture:
- String DAC
- Operating Temperature:
- -40°C ~ 125°C
- Supplier Device Package:
- 16-WQFN (3x3)
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -
| Image |  |
 |

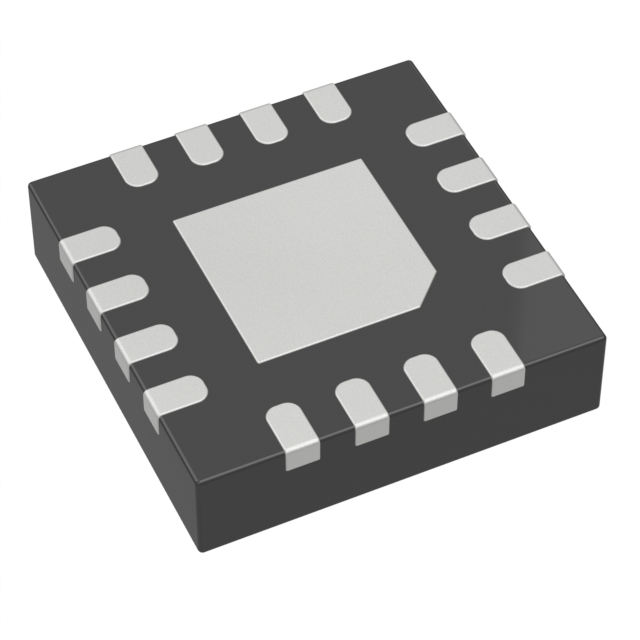

| Part Number | DAC53204RTER | DAC53204RTERQ1 |
| Manufacturer | Texas Instruments | Texas Instruments |
| Series | DACx3204 | - |
| Package/Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Programmable | Not Verified | - |
| Number of Bits | 10 | 10 |
| Number of D/A Converters | 4 | 4 |
| Settling Time | 25µs (Typ) | 25µs (V), 60µs (A) |
| Output Type | Voltage or Current - Buffered | Voltage or Current - Buffered |
| Differential Output | No | No |
| Data Interface | I2C, SPI | I2C, SPI |
| Reference Type | External, Internal | External, Internal |
| Voltage - Supply, Analog | 1.71V ~ 5.5V | 1.71V ~ 5.5V |
| Voltage - Supply, Digital | 1.62V ~ 5.5V | 1.7V ~ 5.5V |
| INL/DNL (LSB) | ±1, ±1 | ±1.25, ±1 |
| Architecture | String DAC | String DAC |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Supplier Device Package | 16-WQFN (3x3) | 16-WQFN (3x3) |
| Mounting Type | Surface Mount | Surface Mount |
| Grade | - | Automotive |
| Qualification | - | AEC-Q100 |
