Texas Instruments DAC0832LCWMX
- Part No.:
- DAC0832LCWMX
- Manufacturer:
- Texas Instruments
- Category:
- Digital to Analog Converters (DAC)
- Package:
- 20-SOIC (0.295", 7.50mm Width)
- Datasheet:
-
DAC0832LCWMX.pdf
- Description:
- IC DAC 8BIT A-OUT 20SOIC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
DAC0832LCWMX Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Texas Instruments
- Series:
- -
- Package/Case:
- 20-SOIC (0.295", 7.50mm Width)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Number of Bits:
- 8
- Number of D/A Converters:
- 1
- Settling Time:
- 1µs (Typ)
- Output Type:
- Current - Unbuffered
- Differential Output:
- Yes
- Data Interface:
- Parallel
- Reference Type:
- External
- Voltage - Supply, Analog:
- 5V ~ 15V
- Voltage - Supply, Digital:
- 5V ~ 15V
- INL/DNL (LSB):
- -
- Architecture:
- Multiplying DAC
- Operating Temperature:
- 0°C ~ 70°C
- Supplier Device Package:
- 20-SOIC
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -

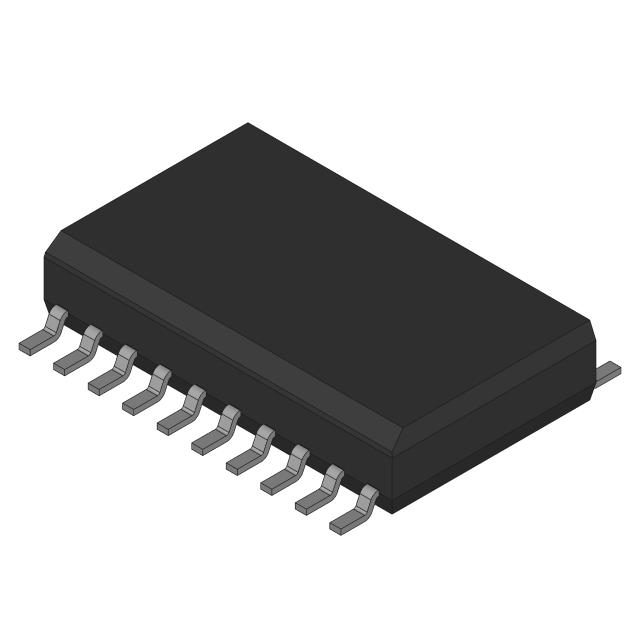

| Image |  |
 |
| Part Number | DAC0832LCWMX/NOPB | DAC0832LCWMX |
| Manufacturer | Texas Instruments | Texas Instruments |
| Series | - | - |
| Package/Case | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified |
| Number of Bits | 8 | 8 |
| Number of D/A Converters | 1 | 1 |
| Settling Time | 1µs (Typ) | 1µs (Typ) |
| Output Type | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes |
| Data Interface | Parallel | Parallel |
| Reference Type | External | External |
| Voltage - Supply, Analog | 5V ~ 15V | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V | 5V ~ 15V |
| INL/DNL (LSB) | - | - |
| Architecture | Multiplying DAC | Multiplying DAC |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C |
| Supplier Device Package | 20-SOIC | 20-SOIC |
| Mounting Type | Surface Mount | Surface Mount |
| Grade | - | - |
| Qualification | - | - |
