Powerex Inc. CM400DU-24H
- Part No.:
- CM400DU-24H
- Manufacturer:
- Powerex Inc.
- Category:
- IGBT Modules
- Package:
- Module
- Description:
- IGBT MOD 1200V 400A 2100W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CM400DU-24H Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Powerex Inc.
- Series:
- IGBTMOD™
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Obsolete
- IGBT Type:
- -
- Configuration:
- Half Bridge
- Voltage - Collector Emitter Breakdown (Max):
- 1200 V
- Current - Collector (Ic) (Max):
- 400 A
- Power - Max:
- 2100 W
- Vce(on) (Max) @ Vge, Ic:
- 3.7V @ 15V, 400A
- Current - Collector Cutoff (Max):
- 2 mA
- Input Capacitance (Cies) @ Vce:
- 60 nF @ 10 V
- Input:
- Standard
- NTC Thermistor:
- No
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Mounting Type:
- Chassis Mount
- Supplier Device Package:
- Module
| Image |  |
 |
|
 |
|

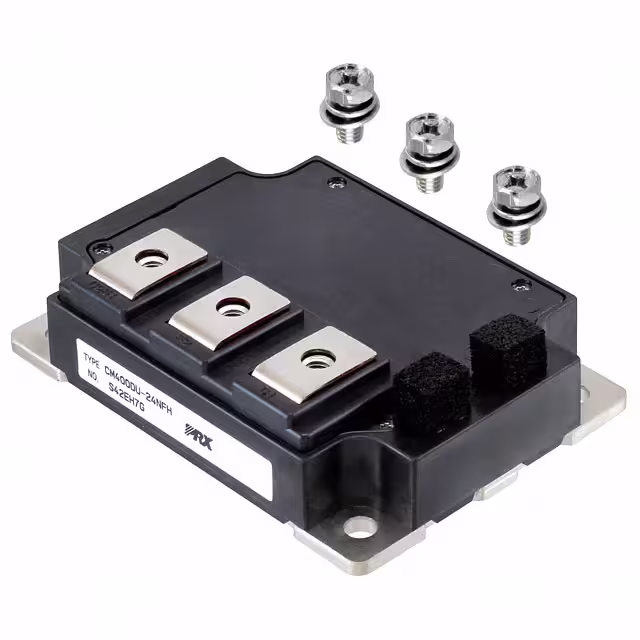

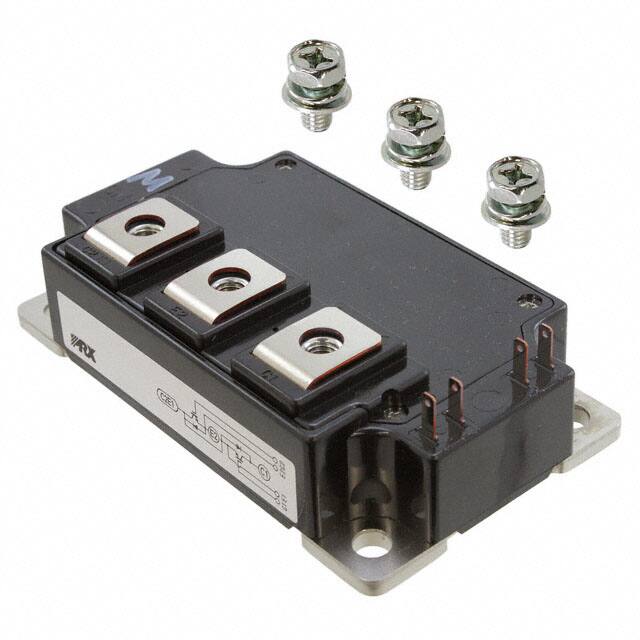

| Part Number | CM400DU-12NFH | CM400DU-12F | CM400DU-12H | CM400DU-24NFH | CM400DU-24F |
| Manufacturer | Powerex Inc. | Powerex Inc. | Powerex Inc. | Powerex Inc. | Powerex Inc. |
| Series | IGBTMOD™ | IGBTMOD™ | IGBTMOD™ | IGBTMOD™ | IGBTMOD™ |
| Package/Case | Module | Module | Module | Module | Module |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| IGBT Type | - | Trench | - | - | - |
| Configuration | Half Bridge | Half Bridge | Half Bridge | Half Bridge | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 400 A | 400 A | 400 A | 400 A | 400 A |
| Power - Max | 960 W | 960 W | 1130 W | 1040 W | 1100 W |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 400A | 2.2V @ 15V, 400A | 3V @ 15V, 400A | 6.5V @ 15V, 400A | 2.4V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA | 1 mA | 2 mA |
| Input Capacitance (Cies) @ Vce | 110 nF @ 10 V | 110 nF @ 10 V | 35.2 nF @ 10 V | 63 nF @ 10 V | 160 nF @ 10 V |
| Input | Standard | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | Module | Module | Module | Module | Module |
