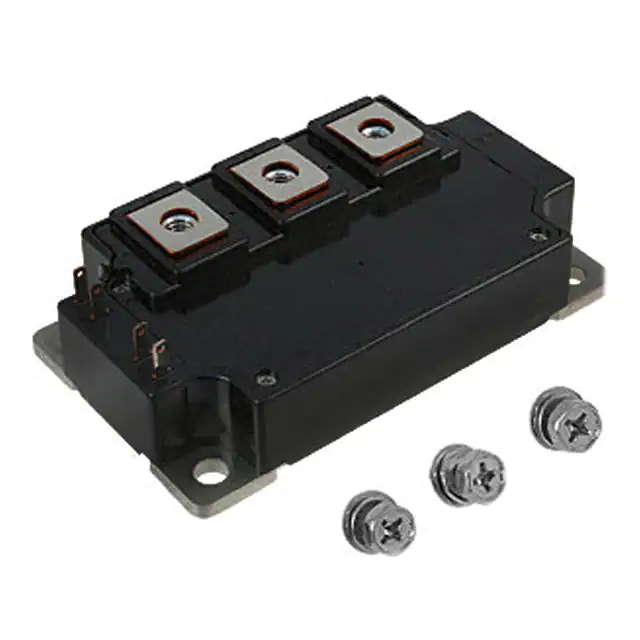

Powerex Inc. CM300DU-24F
- Part No.:
- CM300DU-24F
- Manufacturer:
- Powerex Inc.
- Category:
- IGBT Modules
- Package:
- Module
- Description:
- IGBT MOD 1200V 300A 890W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CM300DU-24F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Powerex Inc.
- Series:
- IGBTMOD™
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Obsolete
- IGBT Type:
- Trench
- Configuration:
- Half Bridge
- Voltage - Collector Emitter Breakdown (Max):
- 1200 V
- Current - Collector (Ic) (Max):
- 300 A
- Power - Max:
- 890 W
- Vce(on) (Max) @ Vge, Ic:
- 2.4V @ 15V, 300A
- Current - Collector Cutoff (Max):
- 1 mA
- Input Capacitance (Cies) @ Vce:
- 120 nF @ 10 V
- Input:
- Standard
- NTC Thermistor:
- No
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Mounting Type:
- Chassis Mount
- Supplier Device Package:
- Module
| Image |  |
|
|
 |
|
| Part Number | CM300DU-12NFH | CM300DU-12F | CM300DU-12H | CM300DU-24NFH | CM300DU-34KA |
| Manufacturer | Powerex Inc. | Powerex Inc. | Powerex Inc. | Powerex Inc. | Powerex Inc. |
| Series | IGBTMOD™ | IGBTMOD™ | IGBTMOD™ | IGBTMOD™ | IGBTMOD™ |
| Package/Case | Module | Module | Module | Module | Module |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key |
| IGBT Type | - | Trench | - | - | - |
| Configuration | Half Bridge | Half Bridge | Half Bridge | Half Bridge | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 1200 V | 1700 V |
| Current - Collector (Ic) (Max) | 300 A | 300 A | 300 A | 300 A | 300 A |
| Power - Max | 780 W | 830 W | 890 W | 1130 W | 1500 W |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 300A | 2.2V @ 15V, 300A | 3V @ 15V, 300A | 6.5V @ 15V, 300A | 4V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 1 mA | 1 mA | 1 mA | 1 mA | 1 mA |
| Input Capacitance (Cies) @ Vce | 83 nF @ 10 V | 81 nF @ 10 V | 26.4 nF @ 10 V | 47 nF @ 10 V | 42 nF @ 10 V |
| Input | Standard | Standard | Standard | Standard | Standard |
| NTC Thermistor | No | No | No | No | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Supplier Device Package | Module | Module | Module | Module | Module |
