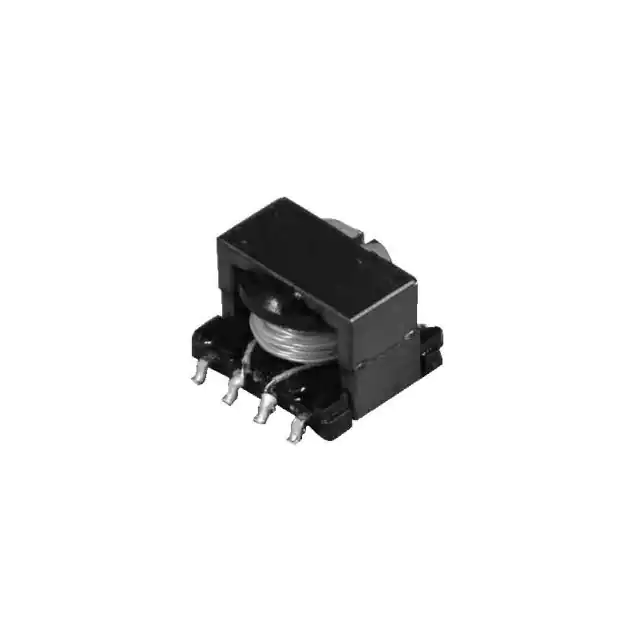

Sumida America Components Inc. CEER117-AX05-13-048
- Part No.:
- CEER117-AX05-13-048
- Manufacturer:
- Sumida America Components Inc.
- Category:
- Switching Converter, SMPS Transformers
- Package:
- Datasheet:
-
CEER117-AX05-13-048.pdf
- Description:
- XFMR FLYBACK DC/DC CONV 59UH SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CEER117-AX05-13-048 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sumida America Components Inc.
- Series:
- -
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- For DC/DC Converters
- Applications:
- Flyback Converters
- Intended Chipset:
- ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV
- Chipset Manufacturer:
- Broadcom, ROHM
- Voltage - Primary:
- 12V
- Voltage - Auxiliary:
- -
- Voltage - Isolation:
- 2500Vrms
- Inductance @ Frequency:
- 59µH @ 100kHz, 240µH @ 100kHz
- Frequency:
- 120kHz
- Operating Temperature:
- -40°C ~ 125°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Size / Dimension:
- 0.449" L x 0.390" W (11.40mm x 9.90mm)
- Height - Seated (Max):
- 0.331" (8.40mm)
- Footprint:
- 0.508" L x 0.449" W (12.90mm x 11.40mm)
- Style:
- -
| Image |  |
 |
| Part Number | CEER117-AX05-13-048 | CEER117-AX05-15-007 |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. |
| Series | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Type | For DC/DC Converters | For DC/DC Converters |
| Applications | Flyback Converters | Flyback Converters |
| Intended Chipset | ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV | ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV |
| Chipset Manufacturer | Broadcom, ROHM | Broadcom, ROHM |
| Voltage - Primary | 12V | 12V |
| Voltage - Auxiliary | - | 5V @ 50mA |
| Voltage - Isolation | 2500Vrms | 2500Vrms |
| Inductance @ Frequency | 59µH @ 100kHz, 240µH @ 100kHz | 7.2µH @ 100kHz, 13.8µH @ 100kHz, 120µH @ 100kHz |
| Frequency | 120kHz | 400kHz |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Size / Dimension | 0.449" L x 0.390" W (11.40mm x 9.90mm) | 0.449" L x 0.390" W (11.40mm x 9.90mm) |
| Height - Seated (Max) | 0.331" (8.40mm) | 0.331" (8.40mm) |
| Footprint | 0.508" L x 0.449" W (12.90mm x 11.40mm) | 0.508" L x 0.449" W (12.90mm x 11.40mm) |
| Style | - | - |
- Include Parts
- Popular Search
The following parts include "CEER117-AX05-13-048" in Silicon Labs CEER117-AX05-13-048.
- Part Number
- Manufacturer
- Package
- Description
- 760390012 Würth Elektronik XFMR FWD P-P DC/DC CONV 475UH SM
- 760390013 Würth Elektronik XFMR FWD P-P DC/DC CONV 475UH SM
- 760390015 Würth Elektronik XFMR FWD P-P DC/DC CONV 475UH SM
- 760390011 Würth Elektronik XFMR FWD P-P DC/DC CONV 1MH SMD
- 760390014 Würth Elektronik XFMR FWD P-P DC/DC CONV 475UH SM
- 750315228 Würth Elektronik XFMR FWD P-P SMD
- 750316769 Würth Elektronik XFMR FWD P-P DC/DC CONV 60UH SMD
- 750316819 Würth Elektronik XFMR FWD P-P DC/DC CONV 86UH SMD
- 750316818 Würth Elektronik XFMR FWD P-P DC/DC CONV 86UH SMD
- 750316770 Würth Elektronik XFMR FWD P-P DC/DC CONV 350UH SM
