Kingbright CC56-12SRWA
- Part No.:
- CC56-12SRWA
- Manufacturer:
- Kingbright
- Category:
- LED Character and Numeric
- Package:
- 12-DIP (0.600", 15.24mm)
- Datasheet:
-
CC56-12SRWA.pdf
- Description:
- CC56-12SRWA
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CC56-12SRWA Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Kingbright
- Series:
- -
- Package/Case:
- 12-DIP (0.600", 15.24mm)
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Display Format:
- -
- Number of Characters:
- 4
- Size / Dimension:
- 0.748" H x 1.980" W x 0.329" D (19.00mm x 50.30mm x 8.35mm)
- Digit/Alpha Size:
- 0.56" (14.20mm)
- Display Type:
- 7-Segment
- Common Pin:
- Common Cathode
- Color:
- Red
- Voltage - Forward (Vf) (Typ):
- 1.8V
- Current - Test:
- 10mA
- Millicandela Rating:
- 34mcd
- Wavelength - Peak:
- 655nm
- Power Dissipation (Max):
- 75mW
| Image |  |
 |
 |
|
|

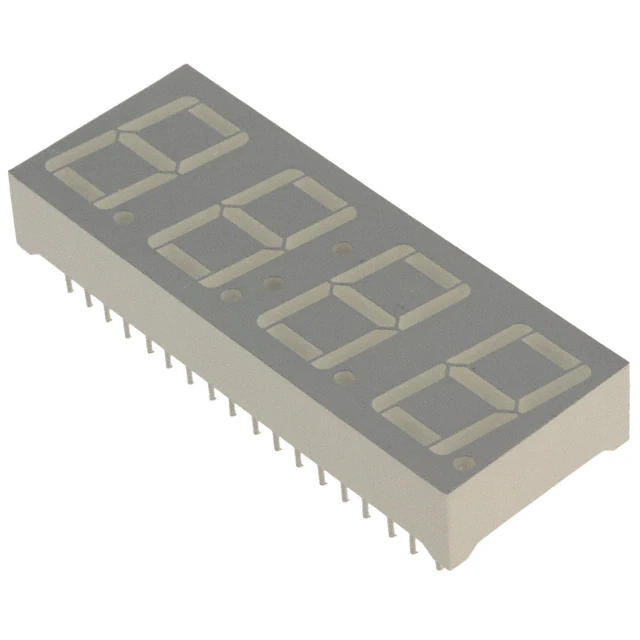

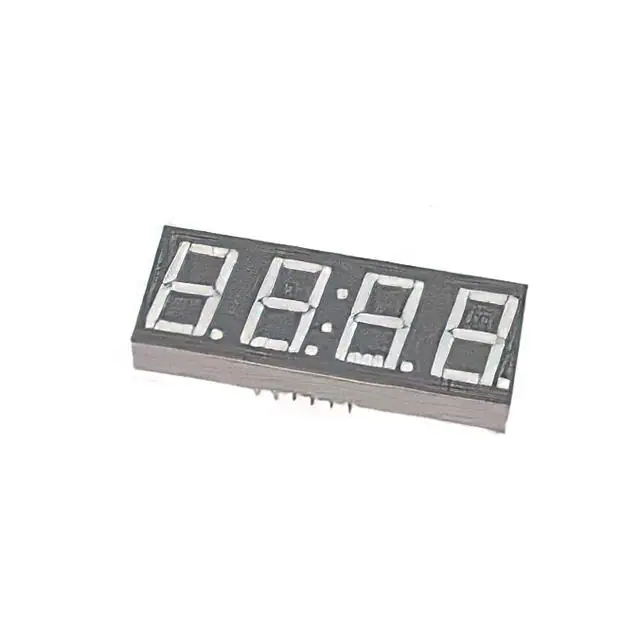

| Part Number | CC56-12SURKWA | CC56-11GWA | CC56-11EWA | CC56-11SRWA | CC56-11YWA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright | Kingbright |
| Series | - | - | - | - | - |
| Package/Case | 12-DIP (0.600", 15.24mm) | 36-DIP Module (0.600", 15.24mm) | 36-DIP Module (0.600", 15.24mm) | 36-DIP Module (0.600", 15.24mm) | 36-DIP Module (0.600", 15.24mm) |
| Packaging | Bulk | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Obsolete | Active |
| Display Format | - | - | - | - | - |
| Number of Characters | 4 | 4 | 4 | 4 | 4 |
| Size / Dimension | 0.748" H x 1.980" W x 0.329" D (19.00mm x 50.30mm x 8.35mm) | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) |
| Digit/Alpha Size | 0.56" (14.20mm) | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) | 0.56" (14.22mm) |
| Display Type | 7-Segment | 7-Segment Clock | 7-Segment Clock | 7-Segment Clock | 7-Segment Clock |
| Common Pin | Common Cathode | Common Cathode | Common Cathode | Common Cathode | Common Cathode |
| Color | Red | Green | Red | Red | Yellow |
| Voltage - Forward (Vf) (Typ) | 1.85V | 2.2V | 2V | 1.85V | 2.1V |
| Current - Test | 10mA | 20mA | 20mA | 20mA | 20mA |
| Millicandela Rating | 72mcd | 11mcd | 5.8mcd | 40mcd | 6.5mcd |
| Wavelength - Peak | 645nm | 565nm | 627nm | 660nm | 590nm |
| Power Dissipation (Max) | 75mW | 62.5mW | 75mW | 75mW | 75mW |
