Central Semiconductor Corp CBRSDSH2-40 BK
- Part No.:
- CBRSDSH2-40 BK
- Manufacturer:
- Central Semiconductor Corp
- Category:
- Bridge Rectifiers
- Package:
- 4-SMD, Gull Wing
- Description:
- BRIDGE RECT 1P 40V 2A 4-SMDIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CBRSDSH2-40 BK Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Central Semiconductor Corp
- Series:
- -
- Package/Case:
- 4-SMD, Gull Wing
- Packaging:
- Tube
- Product Status:
- Obsolete
- Diode Type:
- Single Phase
- Technology:
- Schottky
- Voltage - Peak Reverse (Max):
- 40 V
- Current - Average Rectified (Io):
- 2 A
- Voltage - Forward (Vf) (Max) @ If:
- 450 mV @ 2 A
- Current - Reverse Leakage @ Vr:
- 70 µA @ 40 V
- Operating Temperature:
- -50°C ~ 125°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-SMDIP

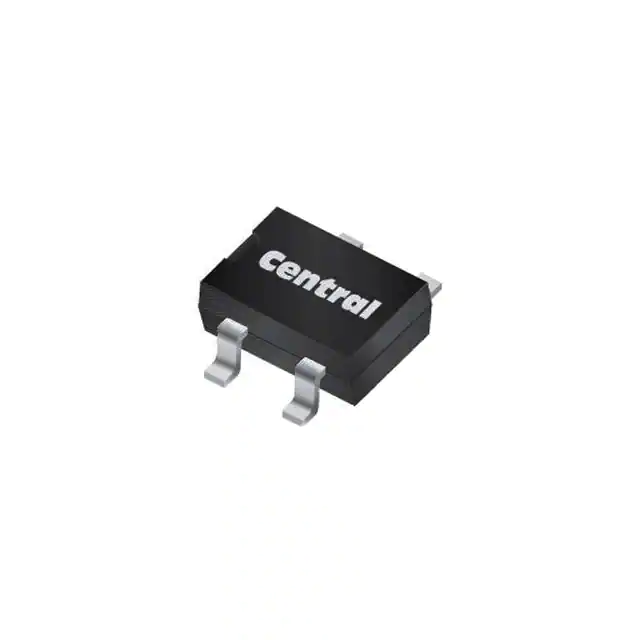

| Image |  |
|
|
 |
|
| Part Number | CBRSDSH2-40 TR13 | CBRSDSH2-60 TR13 | CBRSDSH2-100 TR13 | CBRSDSH2-100 | CBRSDSH2-40 BK |
| Manufacturer | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp | Central Semiconductor Corp |
| Series | - | - | - | - | - |
| Package/Case | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tube |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - Peak Reverse (Max) | 40 V | 60 V | 100 V | 100 V | 40 V |
| Current - Average Rectified (Io) | 2 A | 2 A | 2 A | 2 A | 2 A |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 2 A | 600 mV @ 2 A | 700 mV @ 2 A | 700 mV @ 2 A | 450 mV @ 2 A |
| Current - Reverse Leakage @ Vr | 70 µA @ 40 V | 70 µA @ 60 V | 50 µA @ 100 V | 50 µA @ 100 V | 70 µA @ 40 V |
| Operating Temperature | -50°C ~ 125°C (TJ) | -50°C ~ 125°C (TJ) | -50°C ~ 125°C (TJ) | -50°C ~ 125°C (TJ) | -50°C ~ 125°C (TJ) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-SMDIP | 4-SMDIP | 4-SMDIP | 4-SMDIP | 4-SMDIP |
