Focus LCDs C82A-YTY-XW63
- Part No.:
- C82A-YTY-XW63
- Manufacturer:
- Focus LCDs
- Category:
- LCD, OLED Character and Numeric
- Package:
- Description:
- 8X2 STN YELLOW CHARACTER LCD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
C82A-YTY-XW63 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Focus LCDs
- Series:
- -
- Packaging:
- Tape & Box (TB)
- Product Status:
- Active
- Number of Characters:
- 16.0
- Display Format:
- 8 x 2
- Character Format:
- 5 x 8 Dots
- Display Type:
- STN - Super-Twisted Nematic
- Display Mode:
- Transflective
- Character Size:
- 4.75mm H x 2.95mm W
- Outline L x W x H:
- 40.00mm x 35.40mm x 13.00mm
- Viewing Area:
- 30.40mm L x 13.90mm W
- Backlight:
- LED - Yellow
- Voltage - Supply:
- 3.3V
- Dot Size:
- 0.55mm W x 0.55mm H
- Interface:
- Parallel
- Controller Type:
- ST7066
- Operating Temperature:
- -20°C ~ 70°C
- Text Color:
- Black
- Background Color:
- Yellow
| Image |  |
 |
 |
 |
|

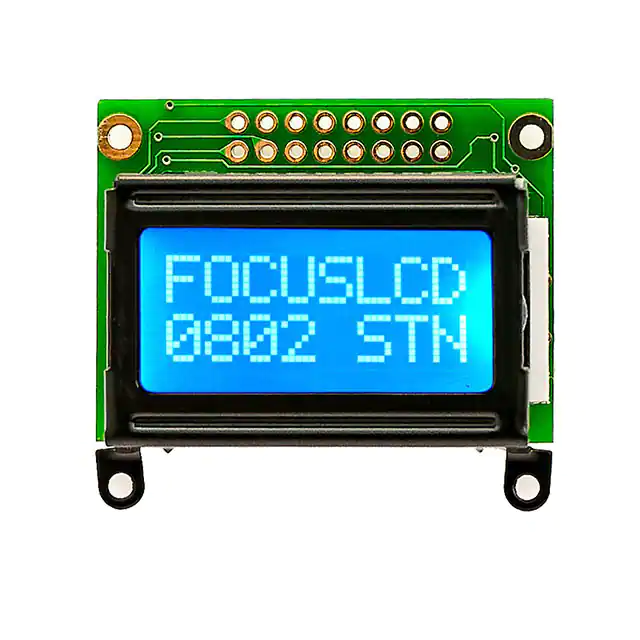

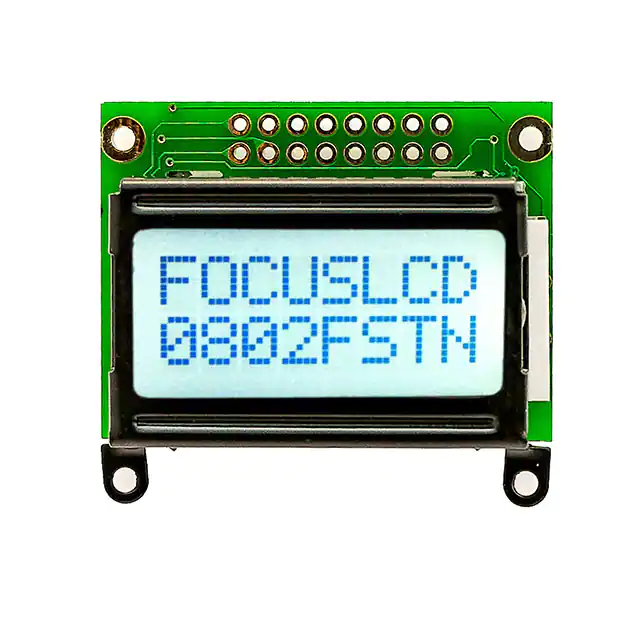

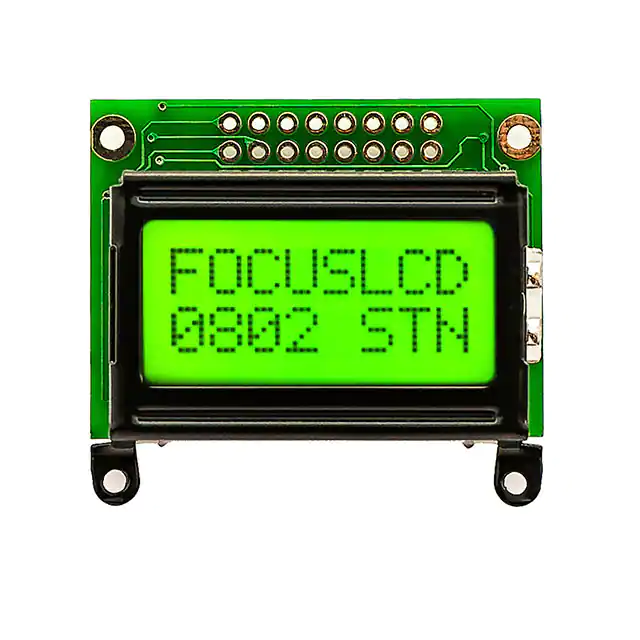

| Part Number | C82A-FTW-XW65 | C82A-YTY-XW65 | C82A-BW-XW65 | C82A-YTY-XW63 | C82A-FTW-XW63 |
| Manufacturer | Focus LCDs | Focus LCDs | Focus LCDs | Focus LCDs | Focus LCDs |
| Series | C82A | C82A | C82A | - | C82A |
| Packaging | Box | Box | Box | Tape & Box (TB) | Tape & Box (TB) |
| Product Status | Active | Active | Active | Active | Active |
| Number of Characters | 16.0 | 16.0 | 16.0 | 16.0 | 16.0 |
| Display Format | 8 x 2 | 8 x 2 | 8 x 2 | 8 x 2 | 8 x 2 |
| Character Format | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective | Transflective | Transmissive | Transflective | Transflective |
| Character Size | 4.75mm H x 2.95mm W | 4.75mm H x 2.95mm W | 4.75mm H x 2.95mm W | 4.75mm H x 2.95mm W | 4.75mm H x 2.95mm W |
| Outline L x W x H | 40.00mm x 35.40mm x 13.00mm | 40.00mm x 35.40mm x 13.00mm | 40.00mm x 35.40mm x 13.00mm | 40.00mm x 35.40mm x 13.00mm | 40.00mm x 35.40mm x 13.00mm |
| Viewing Area | 30.40mm L x 13.90mm W | 30.40mm L x 13.90mm W | 30.40mm L x 13.90mm W | 30.40mm L x 13.90mm W | 30.40mm L x 35.40mm W |
| Backlight | LED - White | LED - Yellow | LED - White | LED - Yellow | LED - White |
| Voltage - Supply | 5V | 5V | 5V | 3.3V | 5V |
| Dot Size | 0.55mm W x 0.55mm H | 0.55mm W x 0.55mm H | 0.55mm W x 0.55mm H | 0.55mm W x 0.55mm H | 0.55mm W x 0.55mm H |
| Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Controller Type | ST7066 | ST7066 | ST7066 | ST7066 | ST7066 |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Text Color | Black | Black | White | Black | Black |
| Background Color | Gray | Yellow/Green | Blue | Yellow | Gray |
