Focus LCDs C202C-BW-LW65

Name: C202C-BW-LW65
Brand: Focus LCDs
SKU: C202C-BW-LW65
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: C202C-BW-LW65

Manufacturer:: Focus LCDs

Category:: LCD, OLED Character and Numeric

Package:

Description:: 20X2 STN BLUE CHARACTER LCD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

C202C-BW-LW65 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Focus LCDs

Series:: C202C

Packaging:: Box

Product Status:: Active

Number of Characters:: 40.0

Display Format:: 20 x 2

Character Format:: 5 x 7 Dots

Display Type:: STN - Super-Twisted Nematic

Display Mode:: Transmissive

Character Size:: 9.22mm H x 4.84mm W

Outline L x W x H:: 146.00mm x 43.00mm x 13.80mm

Viewing Area:: 122.00mm L x 23.00mm W

Backlight:: LED - White

Voltage - Supply:: 5V

Dot Size:: 0.92mm W x 1.10mm H

Interface:: Parallel

Controller Type:: ST7066U

Operating Temperature:: -20°C ~ 70°C

Text Color:: White

Background Color:: Blue

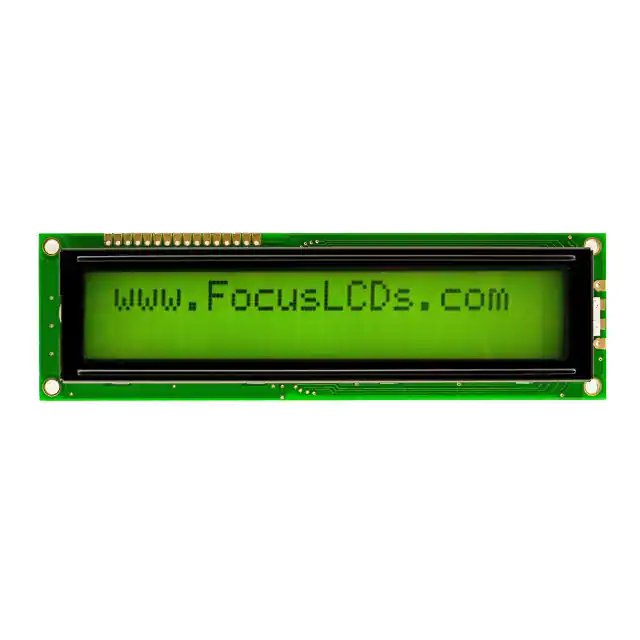

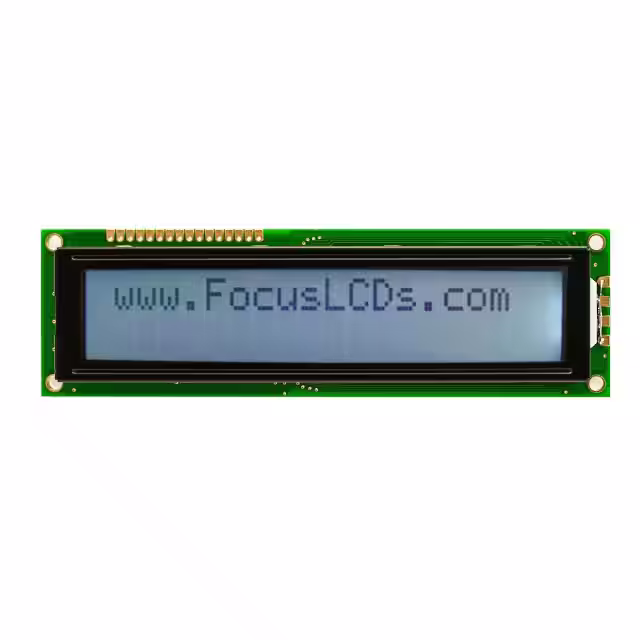

Part Number	C202C-BW-LW65	C202C-YTY-LW63	C202C-YTY-LW65	C202C-FTW-LW65	C202C-BW-LW63
Manufacturer	Focus LCDs	Focus LCDs	Focus LCDs	Focus LCDs	Focus LCDs
Series	C202C	C202C	C202C	C202C	C202C
Packaging	Box	Tape & Box (TB)	Box	Box	Tape & Box (TB)
Product Status	Active	Active	Active	Active	Active
Number of Characters	40.0	40.0	40.0	40.0	40.0
Display Format	20 x 2	20 x 2	20 x 2	20 x 2	20 x 2
Character Format	5 x 7 Dots	5 x 8 Dots	5 x 7 Dots	5 x 7 Dots	5 x 8 Dots
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	FSTN - Film Super-Twisted Nematic	STN - Super-Twisted Nematic
Display Mode	Transmissive	Transflective	Transflective	Transflective	Transmissive
Character Size	9.22mm H x 4.84mm W	9.22mm H x 4.84mm W	9.22mm H x 4.84mm W	9.22mm H x 4.84mm W	9.22mm H x 4.84mm W
Outline L x W x H	146.00mm x 43.00mm x 13.80mm	146.00mm x 43.00mm x 13.80mm	146.00mm x 43.00mm x 13.80mm	146.00mm x 43.00mm x 13.80mm	146.00mm x 43.00mm x 13.80mm
Viewing Area	122.00mm L x 23.00mm W	122.00mm L x 23.00mm W	122.00mm L x 23.00mm W	122.00mm L x 23.00mm W	122.00mm L x 23.00mm W
Backlight	LED - White	LED - Yellow	LED - Yellow	LED - White	LED - White
Voltage - Supply	5V	3.3V	5V	5V	3.3V
Dot Size	0.92mm W x 1.10mm H	0.92mm W x 1.10mm H	0.92mm W x 1.10mm H	0.92mm W x 1.10mm H	0.92mm W x 1.10mm H
Interface	Parallel	Parallel	Parallel	Parallel	Parallel
Controller Type	ST7066U	ST7066U	ST7066U	ST7066U	ST7066U
Operating Temperature	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C
Text Color	White	Black	Black	Black	Blue
Background Color	Blue	Yellow/Green	Yellow/Green	Gray	White
