Advantech Corp BB-YS8963
- Part No.:
- BB-YS8963
- Manufacturer:
- Advantech Corp
- Category:
- RF Antennas
- Package:
- Datasheet:
-
BB-YS8963.pdf
- Description:
- ANTENNA 6DB YAGI
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BB-YS8963 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Advantech Corp
- Series:
- -
- Packaging:
- Bulk
- Product Status:
- Obsolete
- RF Family/Standard:
- -
- Frequency Group:
- UHF (300MHz ~ 1GHz)
- Frequency (Center/Band):
- 933MHz
- Frequency Range:
- 896MHz ~ 970MHz
- Antenna Type:
- Yagi, 3-Element
- Number of Bands:
- 1
- VSWR:
- -
- Return Loss:
- -
- Gain:
- 6dBd
- Power - Max:
- -
- Features:
- -
- Termination:
- -
- Ingress Protection:
- -
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Bracket Mount
- Height (Max):
- -
- Applications:
- General Purpose
| Image |  |
 |
 |
 |
 |

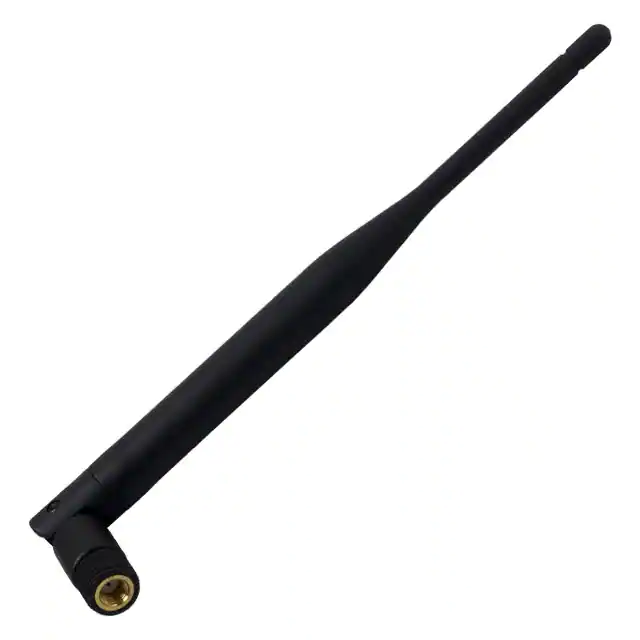

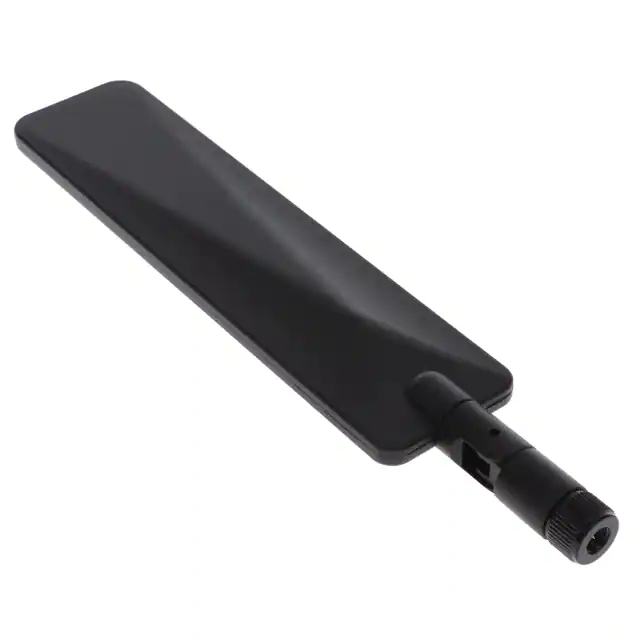

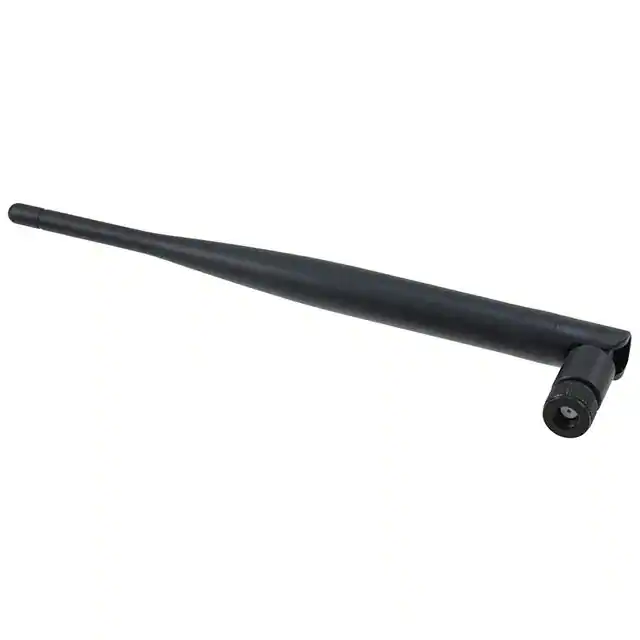

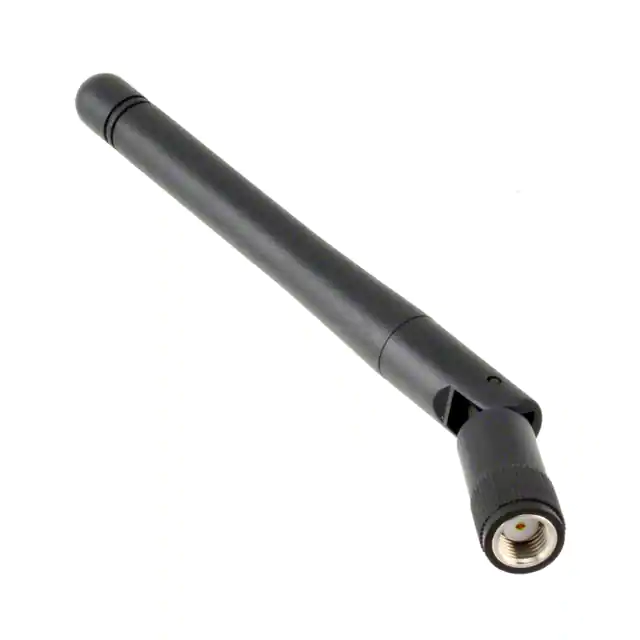

| Part Number | BB-ACH2-DBAT-DP003 | BB-ACH2-DBAT-DP002 | BB-2JW0124Z-C868B | BB-ACH2-AT-DP003-G | BB-AO-AGSM-MG3S |
| Manufacturer | Advantech Corporation | Advantech Corporation | Advantech Corporation | Advantech Corp | Advantech Corporation |
| Series | - | - | - | Airborne™ | - |
| Packaging | Bulk | Bulk | Bulk | Bag | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| RF Family/Standard | WiFi | - | Cellular | - | Cellular |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | Wide Band | UHF (2GHz ~ 3GHz) | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 2.4GHz, 5.8GHz | 2.4GHz, 5GHz | 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 2.4GHz | 900MHz, 1.8GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.35GHz, 5.725GHz ~ 5.85GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz | - | - |
| Antenna Type | Whip, Tilt | Whip, Tilt | Blade, Tilt | Whip, Tilt | Whip, Straight |
| Number of Bands | 2 | 2 | 8 | 1 | 2 |
| VSWR | - | 2 | 2.4, 1.6, 2.2 | - | 1.8 |
| Return Loss | - | - | -7.7dB, -12.7dB, -8.5dB | - | - |
| Gain | 3.8dBi, 5.5dBi | 2dBi | 0.4dBi, 2.6dBi, 1.3dBi | 5dBi | 3dBi, 3dBi |
| Power - Max | 2 W | - | 25 W | - | 10 W |
| Features | - | - | - | - | Cable - 3m |
| Termination | RP-SMA Male | RP-SMA Male | SMA Male, RP-SMA Male | RP-SMA Male | SMA Male |
| Ingress Protection | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Connector Mount | Connector Mount | Connector Mount | Connector Mount | Magnetic |
| Height (Max) | 6.850" (174.00mm) | 3.200" (81.28mm) | 7.657" (194.50mm) | 8.189" (208.00mm) | 9.134" (232.00mm) |
| Applications | WLAN | - | 2G, 3G, 4G, CDMA, DCS, EVDO, GSM, GPRS, HSPA, PCS, LTE, UMTS, WCDMA | - | GSM |
