Infineon Technologies BAT15-099E6327
- Part No.:
- BAT15-099E6327
- Manufacturer:
- Infineon Technologies
- Category:
- RF Diodes
- Package:
- TO-253-4, TO-253AA
- Description:
- BAT15 - RF MIXER AND DETECTOR SC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BAT15-099E6327 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Infineon Technologies
- Series:
- -
- Package/Case:
- TO-253-4, TO-253AA
- Packaging:
- Bulk
- Product Status:
- Active
- Diode Type:
- Schottky - 2 Independent
- Voltage - Peak Reverse (Max):
- 4V
- Current - Max:
- 110 mA
- Capacitance @ Vr, F:
- 0.5pF @ 0V, 1MHz
- Resistance @ If, F:
- 5.5Ohm @ 50mA, 1MHz
- Power Dissipation (Max):
- 100 mW
- Operating Temperature:
- 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- PG-SOT143-4
| Image |  |
 |
 |
 |
 |

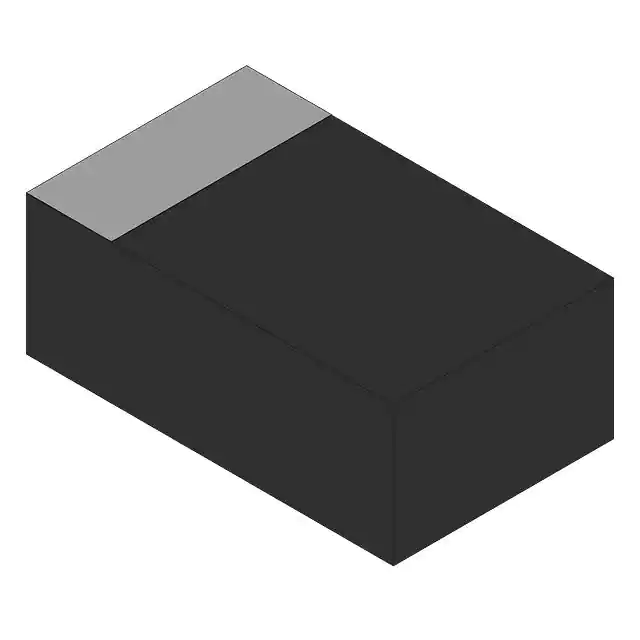

| Part Number | BAT1503WE6327HTSA1 | BAT1504WH6327XTSA1 | BAT1502LRHE6327XTSA1 | BAT1504RE6152HTSA1 | BAT1502ELE6327XTMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Series | - | - | - | - | - |
| Package/Case | SC-76, SOD-323 | SC-70, SOT-323 | SOD-882 | TO-236-3, SC-59, SOT-23-3 | 0402 (1006 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Schottky - Single | Schottky - 1 Pair Series Connection | Schottky - Single | Schottky - 1 Pair Series Connection | Schottky - Single |
| Voltage - Peak Reverse (Max) | 4V | 4V | 4V | 4V | 4V |
| Current - Max | 110 mA | 110 mA | 110 mA | 110 mA | 110 mA |
| Capacitance @ Vr, F | 0.35pF @ 0V, 1MHz | 0.35pF @ 0V, 1MHz | 0.35pF @ 0V, 1MHz | 0.25pF @ 0V, 1MHz | 0.35pF @ 0V, 1MHz |
| Resistance @ If, F | - | - | - | 18Ohm @ 5mA, 1MHz | - |
| Power Dissipation (Max) | 100 mW | 100 mW | 100 mW | - | 100 mW |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | PG-SOD323-3D | PG-SOT323 | PG-TSLP-2-7 | PG-SOT23 | PG-TSLP-2-19 |
