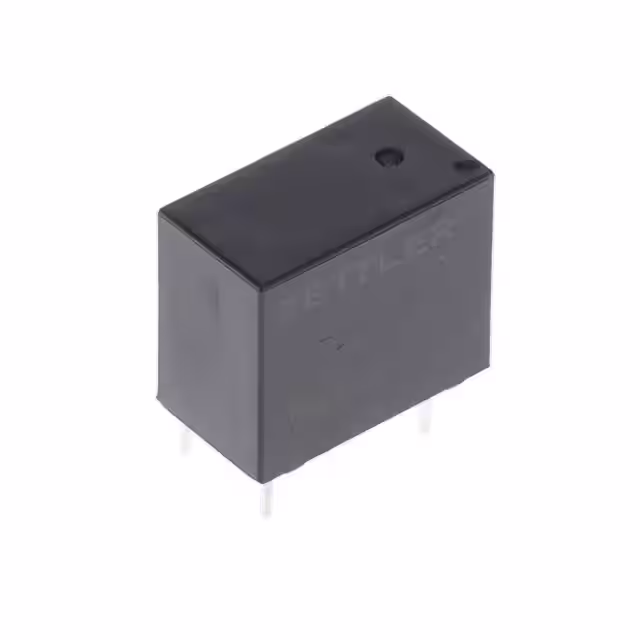

American Zettler AZ7709T-1AE-12DSEF
- Part No.:
- AZ7709T-1AE-12DSEF
- Manufacturer:
- American Zettler
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
AZ7709T-1AE-12DSEF.pdf
- Description:
- RELAY GEN PURPOSE SPST 10A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AZ7709T-1AE-12DSEF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- American Zettler
- Series:
- AZ7709
- Packaging:
- Tray
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 12VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 10 A
- Switching Voltage:
- 250VAC, 30VDC - Max
- Load - Max Switching:
- 2500VA, 300W
- Coil Current:
- 16.7 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- Class F
- Must Operate Voltage:
- 9 VDC
- Must Release Voltage:
- 0.6 VDC
- Operate Time:
- 8 ms
- Release Time:
- 4 ms
- Operating Temperature:
- -40°C ~ 105°C
- Contact Material:
- Silver Tin Oxide (AgSnO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
|
|
 |
|
| Part Number | AZ7709T-1AE-12DSEF | AZ7709T-1AE-5DEF | AZ7709T-1AE-24DEF | AZ7709T-1AE-5DSEF | AZ7709T-1AE-48DEF |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler | American Zettler |
| Series | AZ7709 | AZ7709 | AZ7709 | AZ7709 | AZ7709 |
| Packaging | Tray | Tray | Tray | Tray | Box |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 5VDC | 24VDC | 5VDC | 48VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A | 10 A | 10 A | 10 A | 10 A |
| Switching Voltage | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max | 250VAC, 30VDC - Max |
| Load - Max Switching | 2500VA, 300W | 2500VA, 300W | 2500VA, 300W | 2500VA, 300W | 2500VA, 300W |
| Coil Current | 16.7 mA | 90.9 mA | 18.8 mA | 40 mA | 9.4 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Coil Insulation | Class F | Class F | Class F | Class F | Class F |
| Must Operate Voltage | 9 VDC | 3.5 VDC | 16.8 VDC | 3.75 VDC | 33.6 VDC |
| Must Release Voltage | 0.6 VDC | 0.25 VDC | 1.2 VDC | 0.25 VDC | 2.4 VDC |
| Operate Time | 8 ms | 8 ms | 8 ms | 8 ms | 8 ms |
| Release Time | 4 ms | 4 ms | 4 ms | 4 ms | 4 ms |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
