American Zettler AZ2280-1C-120AEF
- Part No.:
- AZ2280-1C-120AEF
- Manufacturer:
- American Zettler
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
AZ2280-1C-120AEF.pdf
- Description:
- RELAY GEN PURPOSE SPDT 20A 120V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AZ2280-1C-120AEF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- American Zettler
- Series:
- AZ2280
- Packaging:
- Tray
- Product Status:
- Active
- Mounting Type:
- Chassis Mount
- Coil Voltage:
- 120VAC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 20 A
- Switching Voltage:
- 277VAC, 28VDC - Max
- Load - Max Switching:
- 11080VA, 840W
- Coil Current:
- 48 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Quick Connect - 0.187"/0.250"
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- Class F
- Must Operate Voltage:
- 102 VAC
- Must Release Voltage:
- 24 VAC
- Operate Time:
- 15 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -55°C ~ 60°C
- Contact Material:
- Silver Cadmium Oxide (AgCdO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

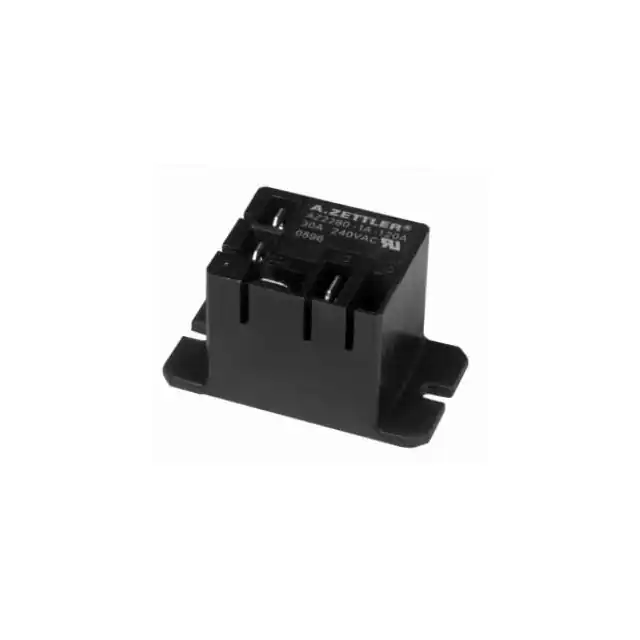

| Image |  |
 |
|
 |
|
| Part Number | AZ2280-1C-120AEF | AZ2280-1A-120AEF | AZ2280-1A-24DEF | AZ2280-1C-12DEF | AZ2280-1A-24AF |
| Manufacturer | American Zettler | American Zettler | American Zettler | American Zettler | American Zettler |
| Series | AZ2280 | AZ2280 | AZ2280 | AZ2280 | AZ2280 |
| Packaging | Tray | Tray | Tray | Box | Box |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Coil Voltage | 120VAC | 120VAC | 24VDC | 12VDC | 24VAC |
| Contact Form | SPDT (1 Form C) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPDT (1 Form C) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 20 A | 40 A | 40 A | 20 A | 40 A |
| Switching Voltage | 277VAC, 28VDC - Max | 277VAC, 28VDC - Max | 277VAC, 28VDC - Max | 277VAC, 28VDC - Max | 277VAC, 28VDC - Max |
| Load - Max Switching | 11080VA, 840W | 11080VA, 840W | 11080VA, 840W | 11080VA, 840W | 11080VA, 840W |
| Coil Current | 48 mA | 48 mA | 36 mA | 77.4 mA | 240 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | Quick Connect - 0.187"/0.250" | Quick Connect - 0.187"/0.250" | Quick Connect - 0.187"/0.250" | Quick Connect - 0.187"/0.250" | Quick Connect - 0.187"/0.250" |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully | Sealed - Fully | - |
| Coil Insulation | Class F | Class F | Class F | Class F | Class F |
| Must Operate Voltage | 102 VAC | 102 VAC | 18 VDC | 9 VDC | 20.4 VAC |
| Must Release Voltage | 24 VAC | 24 VAC | 2.4 VDC | 1.2 VDC | 4.8 VAC |
| Operate Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Release Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Operating Temperature | -55°C ~ 60°C | -55°C ~ 60°C | -55°C ~ 85°C | -55°C ~ 85°C | -55°C ~ 60°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
