ams-OSRAM USA INC. AS1741H-T-Z

Product attributes

Attribute value

Manufacturer:

ams-OSRAM USA INC.

Series:

-

Packaging:

Bulk

Product Status:

Obsolete

Switch Circuit:

SPST - NO

Multiplexer/Demultiplexer Circuit:

1:1

Number of Circuits:

2

On-State Resistance (Max):

800mOhm

Channel-to-Channel Matching (ΔRon):

20mOhm

Voltage - Supply, Single (V+):

1.6V ~ 3.6V

Voltage - Supply, Dual (V±):

-

Switch Time (Ton, Toff) (Max):

22ns, 14ns

-3db Bandwidth:

130MHz

Charge Injection:

5pC

Channel Capacitance (CS(off), CD(off)):

35pF, 35pF

Current - Leakage (IS(off)) (Max):

1nA

Crosstalk:

-100dB @ 1MHz

Operating Temperature:

-40°C ~ 85°C (TA)

Grade:

-

Qualification:

-

Mounting Type:

Surface Mount

Supplier Device Package:

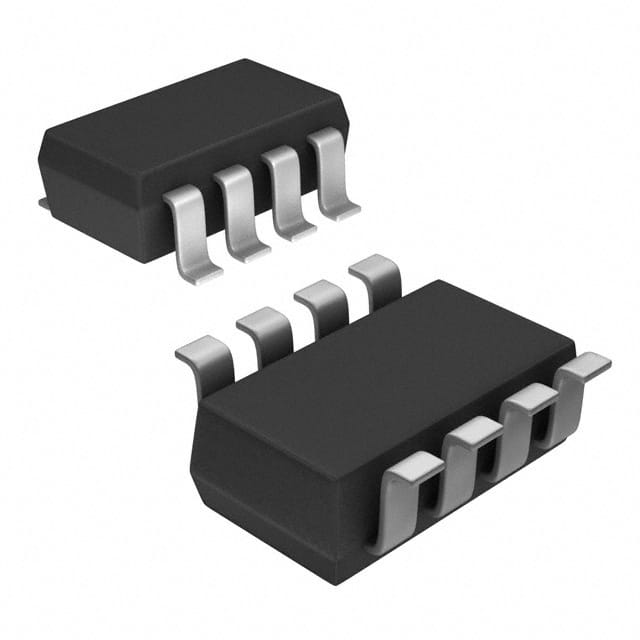

SOT-23-8
