ams-OSRAM USA INC. AS1507-BTDT-50
- Part No.:
- AS1507-BTDT-50
- Manufacturer:
- ams-OSRAM USA INC.
- Category:
- Digital Potentiometers
- Package:
- 16-WFQFN Exposed Pad
- Datasheet:
-
AS1507-BTDT-50.pdf
- Description:
- IC DGT POT 50KOHM 256TAP 16TQFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AS1507-BTDT-50 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ams-OSRAM USA INC.
- Series:
- -
- Package/Case:
- 16-WFQFN Exposed Pad
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Programmable:
- Not Verified
- Taper:
- Linear
- Configuration:
- Potentiometer
- Number of Circuits:
- 2
- Number of Taps:
- 256
- Resistance (Ohms):
- 50k
- Interface:
- SPI
- Memory Type:
- Non-Volatile
- Voltage - Supply:
- 2.7V ~ 5.5V
- Features:
- Mute
- Tolerance:
- ±25%
- Temperature Coefficient (Typ):
- 90ppm/°C
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 16-TQFN (3x3)
- Operating Temperature:
- -40°C ~ 85°C
- Resistance - Wiper (Ohms) (Typ):
- 200

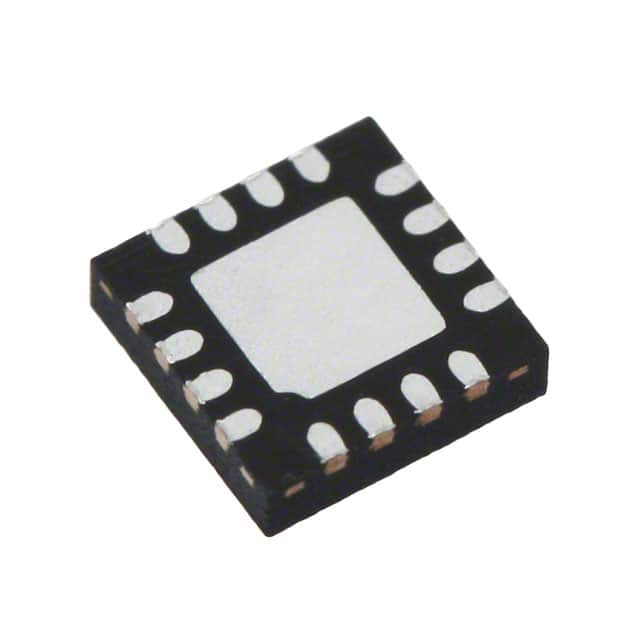

| Image |  |
 |
 |
 |
| Part Number | AS1507-BTDT-100-1K | AS1507-BTDT-10 | AS1507-BTDT-100 | AS1507-BTDT-50 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Series | - | - | - | - |
| Package/Case | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad | 16-WFQFN Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified |
| Taper | Linear | Linear | Linear | Linear |
| Configuration | Potentiometer | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 2 | 2 | 2 | 2 |
| Number of Taps | 256 | 256 | 256 | 256 |
| Resistance (Ohms) | 100k | 10k | 100k | 50k |
| Interface | SPI | SPI | SPI | SPI |
| Memory Type | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Voltage - Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Features | Mute | Mute | Mute | Mute |
| Tolerance | ±25% | ±25% | ±25% | ±25% |
| Temperature Coefficient (Typ) | 90ppm/°C | 90ppm/°C | 90ppm/°C | 90ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Supplier Device Package | 16-TQFN (3x3) | 16-TQFN (3x3) | 16-TQFN (3x3) | 16-TQFN (3x3) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | 200 | 200 | 200 | 200 |
