Panasonic Electric Works AQZ202
- Part No.:
- AQZ202
- Manufacturer:
- Panasonic Electric Works
- Category:
- Solid State Relays (SSR)
- Package:
- 4-SIP
- Description:
- SSR RELAY SPST-NO 3A 0-60V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AQZ202 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- PhotoMOS™ AQZ
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Circuit:
- SPST-NO (1 Form A)
- Output Type:
- AC, DC
- Voltage - Input:
- 1.16VDC
- Voltage - Load:
- 0 V ~ 60 V
- Load Current:
- 3 A
- On-State Resistance (Max):
- 180 mOhms
- Termination Style:
- PC Pin
- Operating Temperature:
- -40°C ~ 85°C
- Supplier Device Package:
- 4-SIL
- Approval Agency:
- UR, VDE
- Grade:
- -
- Qualification:
- -

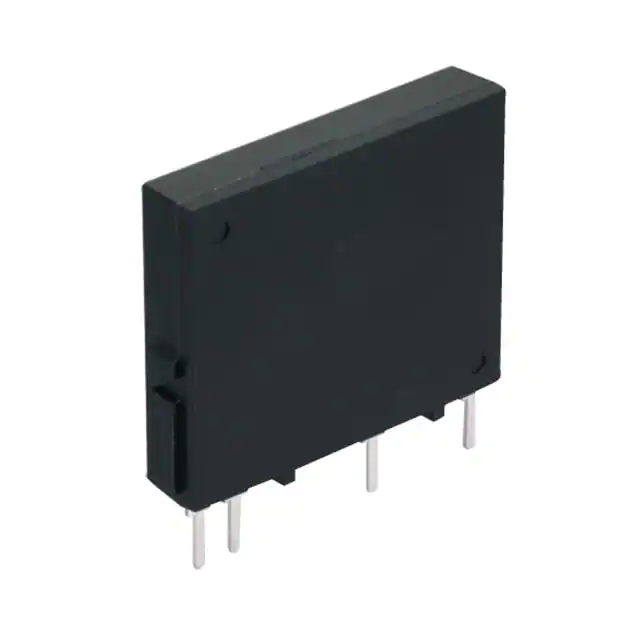

| Image |  |
|
 |
|
| Part Number | AQZ202 | AQZ202D | AQZ202G | AQZ202V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | PhotoMOS™ AQZ | PhotoMOS™ AQZ | PhotoMOS™ AQZ | PhotoMOS™ AQZ |
| Packaging | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Obsolete |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Circuit | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Output Type | AC, DC | AC, DC | AC, DC | AC, DC |
| Voltage - Input | 1.16VDC | 1.4VDC | 1.25VDC | 1.16VDC |
| Voltage - Load | 0 V ~ 60 V | 0 V ~ 60 V | 0 V ~ 60 V | 0 V ~ 22 V |
| Load Current | 3 A | 2.7 A | 6 A | 3 A |
| On-State Resistance (Max) | 180 mOhms | 180 mOhms | 30 mOhms | 180 mOhms |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Supplier Device Package | 4-SIL | 4-SIL | 4-SIL | 4-SIL |
| Approval Agency | UR, VDE | UR, VDE | UR, VDE | UR, VDE |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
